Glass or Bulkhead
5.4 Disassembly and assembly
Prevent injuries when disassembling by disconnecting the wiper from the power
supply. Keep all necessary tools within reach and remember the chapter on safety.
Provide protective packaging, if you're going to store or transport the wiper assembly.
Tightening 16.3Nm/12ft. lbs
5.4.1 Removing the wiper assembly from the bulkhead
1.
Disconnect all the electric connections to the wiper;
2.
Remove the wiper arms;
3.
Remove the nuts (see 7. 1 ) and plates (see 7. 1 ) on the outside and also the secondary fi xing;
4.
Remove the wiper from the holes in the bulkhead or glass;
5.
If you want to replace the wiper, follow chapter 3.
5.4.2 Disassembling the drive crank lever
1.
Disconnect all the electric connections to the wiper;
2.
Remove the wiper from the bulkhead or glass (see 5.4. 1 );
3.
Unscrew the nut (see 7. 1 ) and bolt on the disc (see 7. 1 ) and remove the lever;
Dogbone
4.
For adjusting the wipe arc, follow section 5.3.

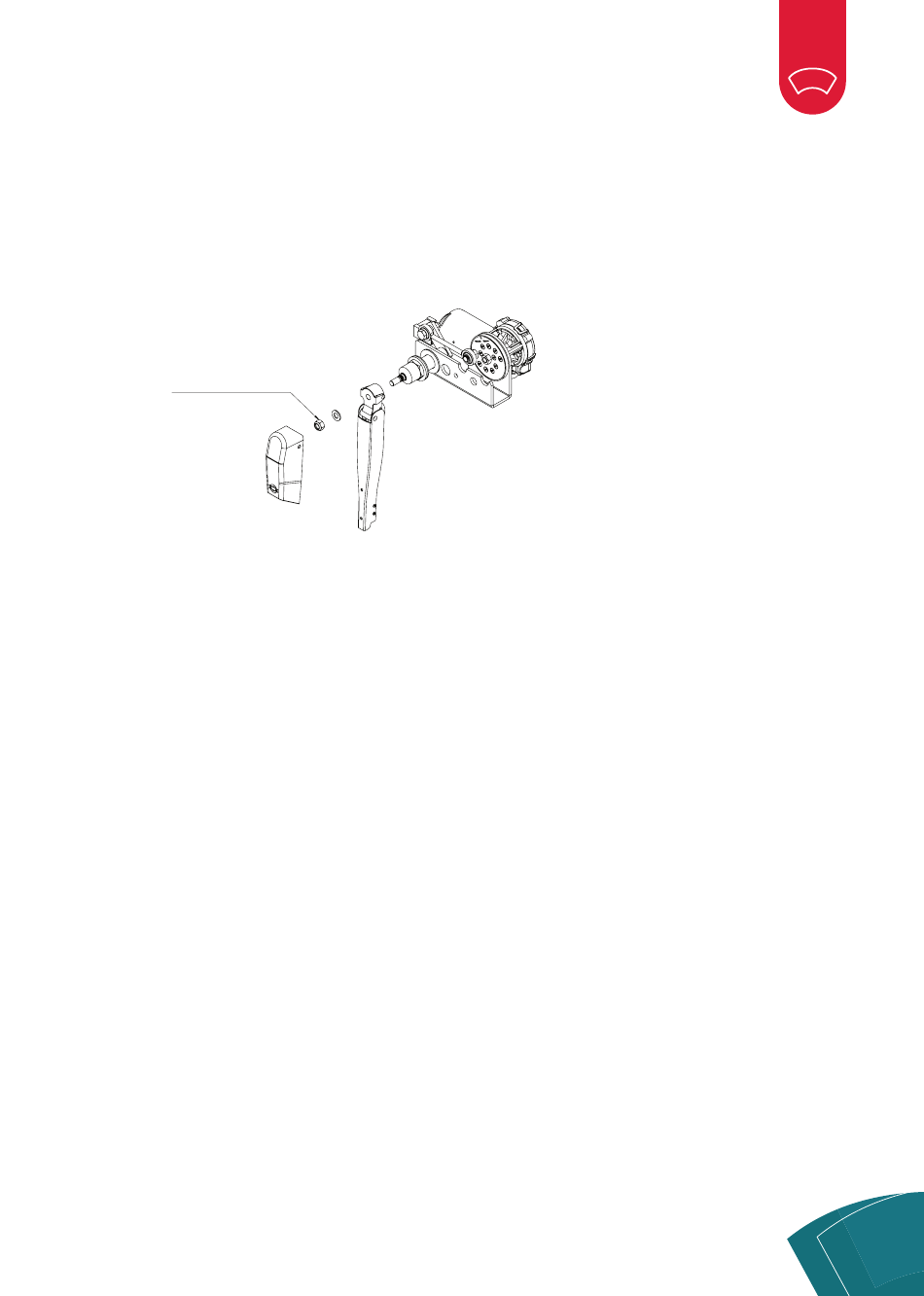

5.4.3 Removing the motor from the wiper assembly
1.
Disconnect all the electric connections to the wiper;
2.
Remove the wiper arm (see 5.4. 1 );
3.
Disassemble the crank lever (see 7. 1 ) from the motor;
4.
Unscrew the three bolts of the motor (see 7. 1 ) and remove the motor;
5.
When replacing, bolt the motor on the housing and follow section 5.3 to install the
drive crank lever and set to the correct park position.
Exalto type 223BDS
MANUAL WIPER SYSTEMS
Glass or Bulkhead
Pin
Tightening 4.5Nm/3.3ft. lbs
Nut M8
Tightening 17Nm/12ft. lbs
Nut M10
Tightening 33Nm/24ft. lbs
Glass
Glass
Arc Disc
15
