Half Nut M8
Tightening 17Nm/12ft. lbs
Hexagon socket head cap screw
Tightening 8Nm/6ft. lbs
A ention!
This wiper model 223 is
suitable for wiper arms model
Spindle Lever
MD1 (Pendulum) up to
750 mm and wiper-blades
up to 750 mm.
Bearing

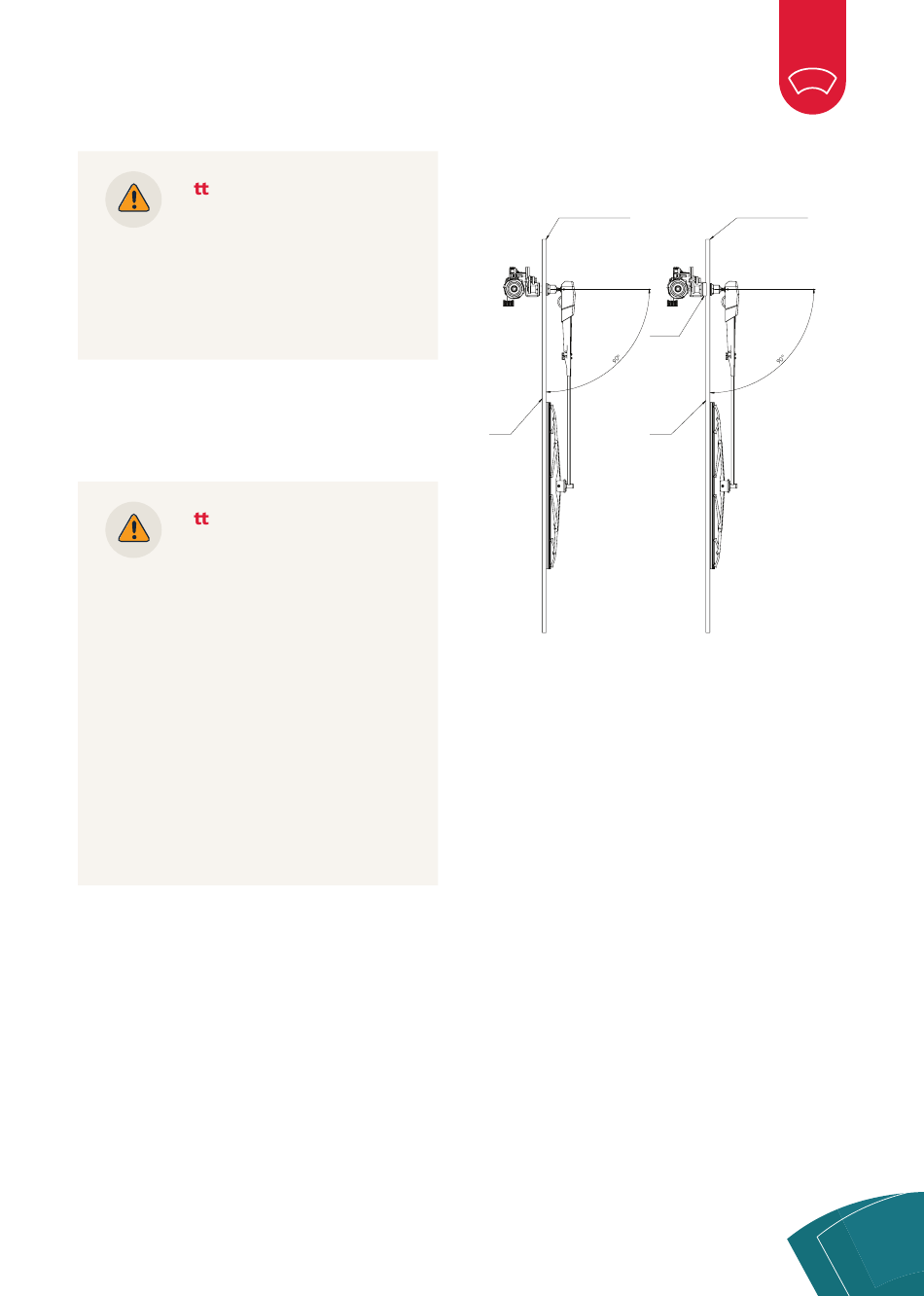

2. Place the wiper arm and blade
assembly on the shafts. Fasten the
nuts loosely onto the shafts.
A ention!
To ensure the arm has
the right spring pressure,
install the wiper arm in
such a way that the shaft
makes a 90° angle with
Tightening 16.3Nm/12ft. lbs
the window (fi gure left)
and that the shaft makes
a 90° angle with the wiper
arm (fi gure right). If this is
not the case, please install
spacer(s) to make the 90°
angles.
3. Switch on the power and test the motor briefl y again to check the wiped area.
4. When the wipe arc is correct, adjust the position and the length of the arm if
necessary. Tighten the nuts to the correct torque (16Nm/12ft.lbs).
Exalto type 223BDS
MANUAL WIPER SYSTEMS
Retaining Ring
Bearing
Dogbone
Glass or Bulkhead
Spacer
Glass Glass
Pin
Glass or Bulkhead
Nut M10
Tightening 33Nm/2
