Summary of Contents for Exalto MD1 223KGO

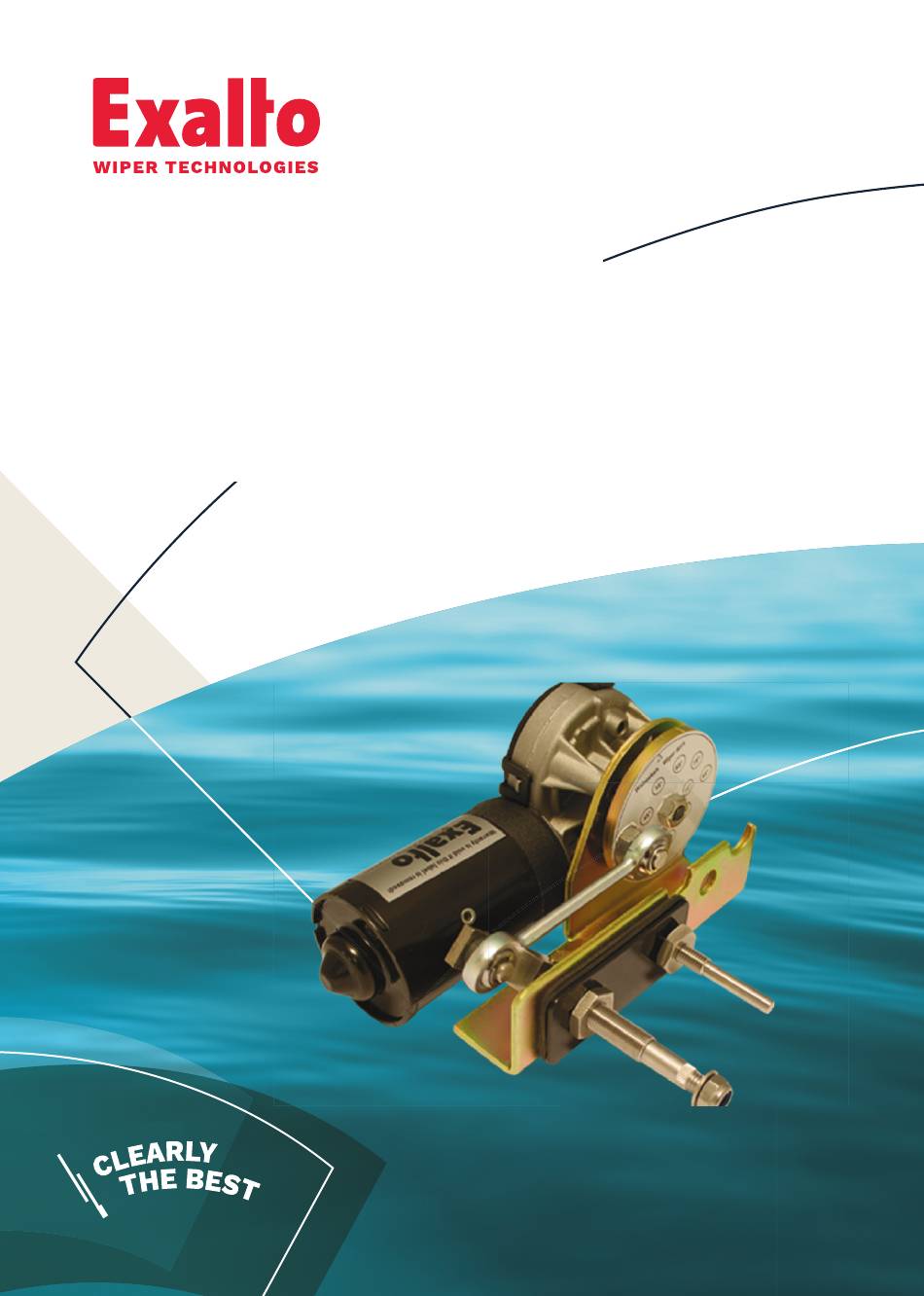

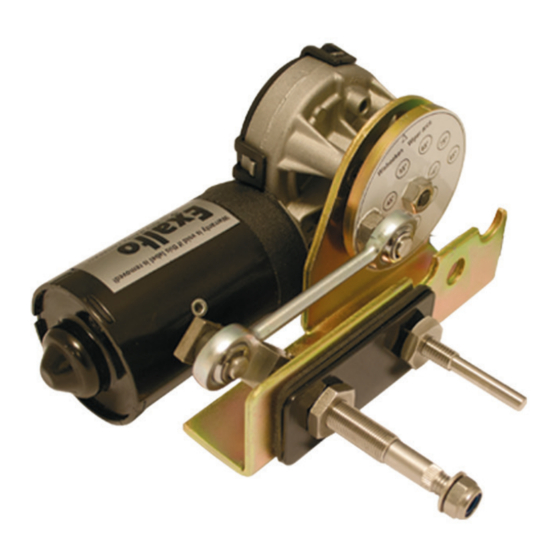

- Page 1 WIPER SYSTEMS Exalto windscreen wiper type 223KGO ITEM NO. XA2125/2126...
- Page 2 MANUAL WIPER SYSTEMS Dear Customer, Thank you for buying our products. Exalto wiper systems are designed and manufactured to the highest standards for marine applications. We guarantee you a clear view for many years. Complete range of products After sales support We off er a wide range of wiper systems We have an excellent after sales support.
- Page 3 Declaration of conformity 4. Operation and use 4. 1 preparations for fi rst use 4.2 normal operations 5. Maintenance 5. 1 general maintenance 5.2 servicing 5.3 changing the wiping arc and park position 5.4 disassembly and assembly Exalto type 223KG...
-
Page 4: Safety Symbols
Alerts you to possible problems and safety warnings. Safety Exalto windscreen wipers are easy to install, yet a fair amount of technical knowledge (mechanical and electrical) is required of the installer. Please consult the manual or contact your vendor in case of doubt during installation or operation. -
Page 5: Safety Provisions
• Place a fuse (see specifi cations) sized to protect the motor. Safety requirements Before the Exalto wiper is installed, we strongly recommend the following: • Read the entire manual before installation. • Make sure your working environment as well as the wiper parts are clean. -
Page 6: Environmental Factors
MANUAL WIPER SYSTEMS 1. Introduction With this user manual we want to guide you in the installation and use of the Exalto windscreen wiper. Please follow all instructions and install all safety provisions. 1.1 Introduction Exalto windscreen wipers are especially designed to keep working even with the most extreme weather conditions at sea. -
Page 7: Technical Data
MANUAL WIPER SYSTEMS 2. Technical data 2.1 General • Product Exalto windscreen wiper • Type 223KGO (Glass mounted, Disc adjustable, Open housing) • Catalogue numbers XA2125 (12V) XA2126 (24V) 2.2 Electrical data 12 Volt • Torque (max.) 23 Nm • Voltage 12 Volt •... -
Page 8: Installation Of Mechanical Parts
MANUAL WIPER SYSTEMS 3. Installation Before starting the installation read the chapter on safety. Check before installation that all parts are present and undamaged. In case of errors, contact your vendor. 3.1 Preparation The complete wiper, with packaging, can be handled and transported by hand. Leave the wiper in the packing, until you are ready to install it;... - Page 9 Rubber sealing plate Glass or Bulkhead Rubber sealing plate Nut M11 Special tightening torque 26Nm/19ft. lbs Rubber weath Stainless steel sealing plate M8 washer Hexagon locking nut Nut M8 Special tightening torque 16.3Nm/12ft. lbs tightening torque 16.3/12ft. lbs Exalto type 223KG...
-
Page 10: Electrical Installation
MANUAL WIPER SYSTEMS A ention! Do not fi t the wiper arm before fi nishing the electrical connections. 3.3 Electrical installation Install the wiper switch in the dashboard. Connect the wiper to the ship’s electrical system. Use a cable with 5 wires with a diameter of at least 1½... - Page 11 Switch on the power and test the motor briefl y again to check the wiped area. When the wipe arc is correct, adjust the position and the length of the arm if necessary. Tighten the nuts to the correct torque (16Nm/12ft.lbs). Exalto type 223KG...
-
Page 12: Operation And Use
If the wiping arc or the park position is wrong, adjust them again. Follow the procedure in paragraph 5.3. 4.2 Normal operation All Exalto windscreen wipers are provided with the following functions: • low speed; • high speed; • self parking. -
Page 13: General Maintenance
MANUAL WIPER SYSTEMS 5. Maintenance 5.1 General maintenance To keep the Exalto wiper in good condition, you are advised to: • clean wiper arms and blades with fresh water after every journey in salt water (to prevent salt from clogging moving parts);... - Page 14 Tightening 17Nm/12ft. lbs Tightening 17Nm/12ft. lbs Flange nut M10 Tightening 33Nm/24ft. lbs MANUAL WIPER SYSTEMS Hexagon screw M5x10 Tightening 4.5Nm/3.3ft. lbs Dogbone Spindle Bearing Disc Sticker Nut M8 Retaining Ring Tightening 17Nm/12ft. lbs tightening 3 5.3.2 Adjusting the park position Place the disc on the shaft, parking right or left (see drawing in paragraph 3.4 and below for reference);...
- Page 15 Unscrew the bolts of the motor (see 7. 1 ) and remove the motor; When replacing, bolt the motor on the housing and follow section 5.3 to install the wipe arc disc and set to the correct park position. Exalto type 223KG...
-
Page 16: Troubleshooting
MANUAL WIPER SYSTEMS 6. Troubleshooting In this chapter, several malfunctions are mentioned combined with possible causes and solutions. Please leave servicing to qualifi ed mechanics. 6.1 Wiper does not work a er switching on • Possible causes: Wiper switch is not working properly. Solution: Test and replace it. - Page 17 Mechanical joints are loose. Solution: Replace worn parts or tighten as required. Parts are broken. Solution: Replace broken parts, re-adjust as required. Splines of shafts are worn Solution: Replace all loose, broken or worn parts and adjust as required. Exalto type 223KG...
-
Page 18: Drawings & Schematics
MANUAL WIPER SYSTEMS 7. Drawings & Schematics 7.1 Assembly overview... -
Page 19: Parts List
1.4401 - SS316 0.005 6016 2100.0230 Motor 12Volt 23Nm Material <not specified> 1.100 Housing 223 Bored Ø17mm 2100.104 1.0037 (S235JR) passivated 0.488 SS Flathead bolt M6×16 0965HA406016 Pos. Qty Description PartNo Material Weight Nut s.s. M8 A4 din934 0934A408 Exalto type 223KG... - Page 20 7.3 Motor Wiring Schematic - Connection data 7.4 Wiring diagrams for switches and control systems Exalto wiper motors can be connected through a wide variety of simple switches to complex controllers. Below you will fi nd some connection wiring diagram examples of Exalto switches and controllers.
- Page 21 MANUAL WIPER SYSTEMS Switch 2134 & 2135: Function Polarity Motorcode Switch code Cable High speed White Low speed Yellow Negative Black Stop - self park Blue Positive Exalto type 223KG...
- Page 22 MANUAL WIPER SYSTEMS Carling switching VEB1: (Exalto number 70906425.SET) as per following details which is wiper switch specifi c. Function Polarity Motorcode Switch code Cable High speed White Low speed Yellow Negative Black Stop - self park Blue Positive...
- Page 23 This scheme can also be used for the case of digital switching modules with only simple output channels. Function Polarity Motorcode Switch code Cable High speed White Low speed Yellow Negative Black Stop - self park Blue Positive Exalto type 223KG...
- Page 24 MANUAL WIPER SYSTEMS Switch 2158 & 2159: Connector for wiper on relay box High speed Low speed (White) (Yellow) + To pump / solenoid Battery + Negative To touch pad Battery - Self park PS Wiper SB Wiper (Red) (Black) White Yellow High speed...
- Page 25 MANUAL WIPER SYSTEMS Switch 210341 Switch 210342 Function Polarity Motorcode Switch code Cable High speed White Low speed Yellow Negative Black Stop - self park Blue Positive Exalto type 223KG...
- Page 26 MANUAL WIPER SYSTEMS Switch panel 210321224-210351224: Switch panel 210321224-210351224: Additional relay box for pumps/heaters is not supplied in standard equipment. Function Polarity Motorcode Switch code Cable High speed White Low speed Yellow Negative Black Stop - self park Blue Positive...
- Page 27 -M S P 210351224 -- + CAN BUS CABLE CAVOT8XX05 L = 5 mt. WASH PUMP POWER SUPPLY Function Polarity Motorcode Switch code Cable High speed White Low speed Yellow Negative Black Stop - self park Blue Positive Exalto type 223KG...
- Page 28 Hereby declares that Exalto windscreen wiper type 223KGO (formerly 235KG) complies to the following harmonised standards: Pleasure yachts electric systems • NEN-EN-ISO 10133:2017 Extra-low voltage D.C. installations (regarding color codes) Exalto Wiper Technologies Nijverheidsstraat 12 3371 XE Hardinxveld-Giessendam The Netherlands +31 (0)184 615 800 wipers@exalto.com...
