MANUAL WIPER SYSTEMS
Bearing
Bolt M8x30

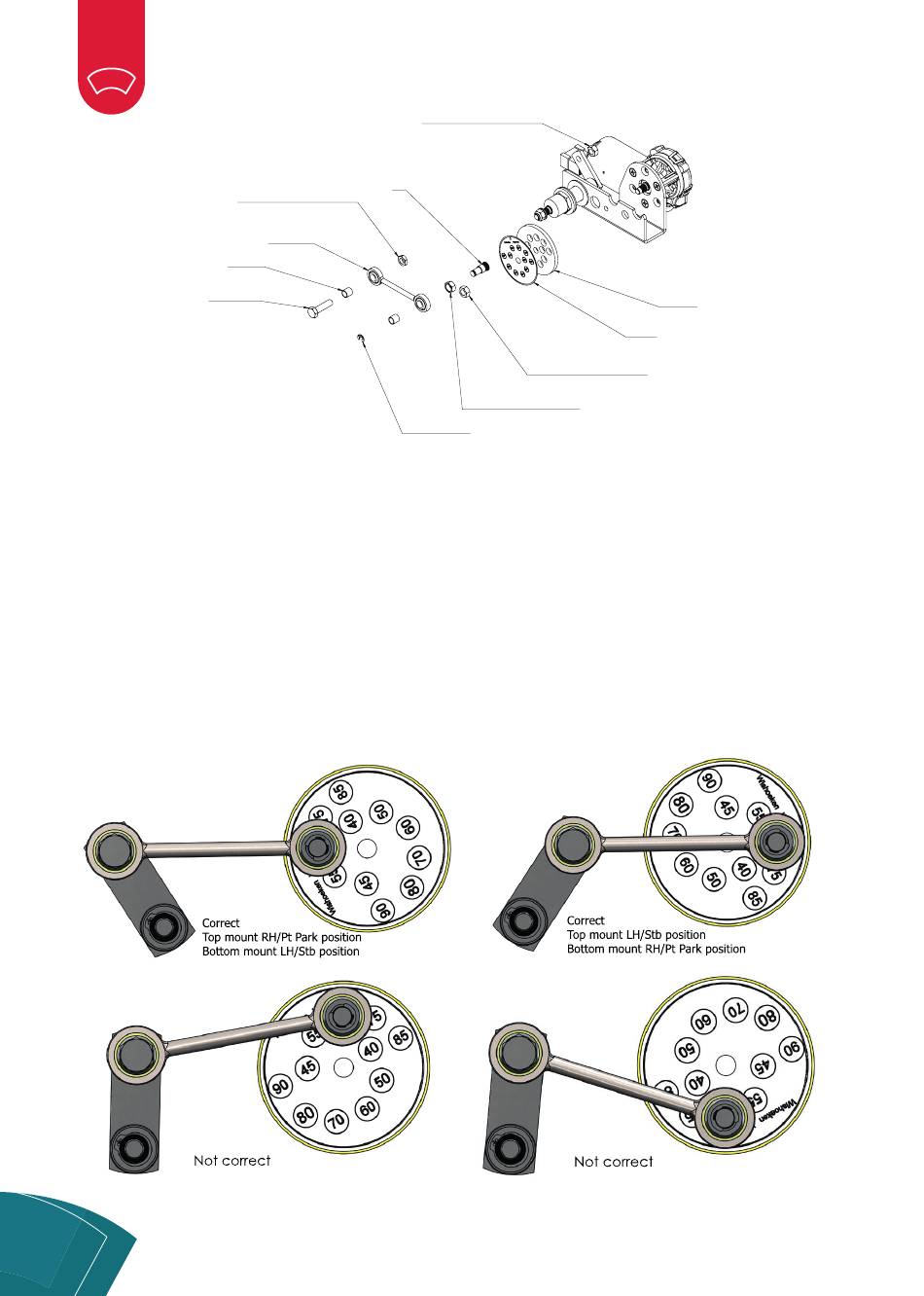

5.3.2 Adjusting the park position
1.
Place the disc on the shaft, parking right or left as shown below (please note this is viewed from
outside to in);
2.
Place the motor lever in such a way that it forms an almost straight line with the dog bone (see
drawing);
3.
Tighten the disc well and place the wiper in the bulkhead;
4.
Run the motor briefl y to check performance;
5.
Adjust the wiper arm to the correct length, if necessary;
6.
Install the wiper arm in correct parking position;
7.
If necessary repeat steps 5 and 6 to position wiper arm in correct parking position.
14
Pin
Half Nut M8
Tightening 17Nm/12ft. lbs
Dogbone
Retaining Ring
Nut M8
Tightening 17Nm/12ft. lbs
Nut M8
Tightening 17Nm/12ft. lbs
Nut M10
tightening 33Nm/24ft. lbs
Arc disc
Sticker
