ISL29501-CS-EVKIT1Z
Cat Shark Reference Design
The ISL29501-CS-EVKIT1Z is a distance
measurement reference design consisting of an
optical board and a controller board. It combines the
ISL29501
chip with an OSRAM SFH 4550 IR emitting
LED and OSRAM SFH 213FA photodiode. The two
circuit boards are connected together with a flat flex
cable. Included is a USB flash drive containing the
evaluation software for a PC and related technical
documents.
The ISL29501-CS-EVKIT1Z kit also allows quick
evaluation of the ISL29501 performance for a 2m
sensing system.
Specifications
This board has been configured and optimized for the
following operating conditions:
▪ Micro USB 2.0 connection
▪ V
= 5V (USB power)
IN
▪ I
maximum = 225mA
DD
▪ P optical maximum = 70mW
▪ Wavelength = 860nm
▪ Optical duty cycle maximum = 50%
▪ Emission angle = ±3°
▪ Coherent light - No
USB 5V
LDO
8051
HOST
CONTROLLER
UG081 Rev.1.00
Apr 5, 2022
C
1
R
4
R
5
R
R
R
1
2
3
C
4

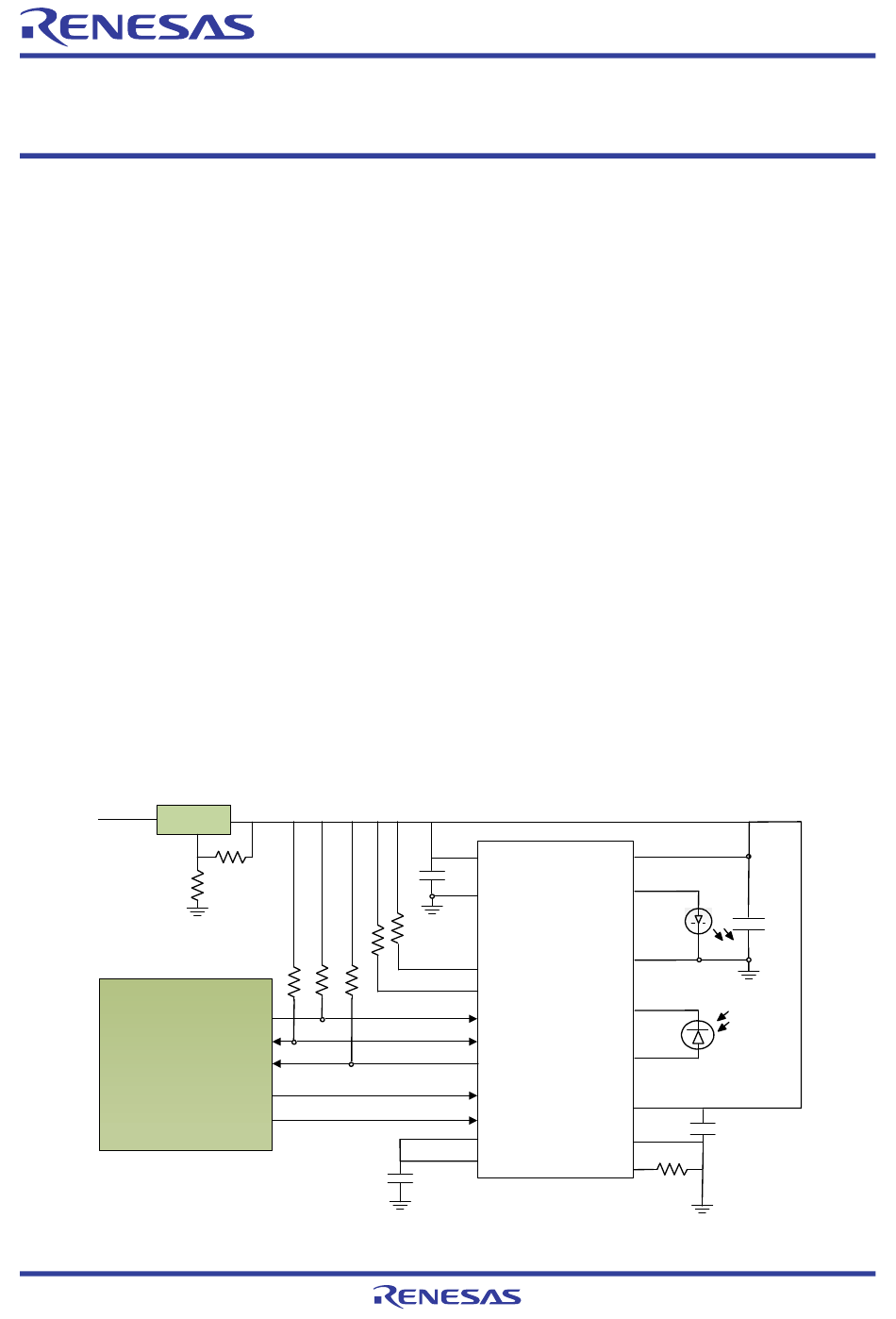

Figure 1. Cat Shark Block Diagram
Evaluation Kit Manual
Features
▪ Self contained measurement system
▪ Enables proximity detection and distance
measurement
▪ Emitter DAC with programmable current up to
255mA
▪ Operates in continuous or single shot mode
▪ On-chip active ambient light rejection
▪ Regulated power 2.7V to 3.3V USB or external
supply
2
▪ I
C interface supporting 1.8V and 3.3V bus
▪ Small size 38mmx20mm
Kit Contents
▪ Evaluation Board
▪ USB cable
▪ Software
▪ Technical documentation
2.7V TO 3.3V
DVCC
EVCC
EIR
DVSS
EVSS
A1
A2
ISL29501
PDp
SCL
SDA
PDn
IRQ
SS
AVCC
CEn
VOUT
AVSS
AVDD
RSET
© 2016-2022 Renesas Electronics
C 2
IR
LED
PD
C
3
R
4
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISL29501-CS-EVKIT1Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renesas ISL29501-CS-EVKIT1Z

Summary of Contents for Renesas ISL29501-CS-EVKIT1Z

  • Page 1 PC and related technical ▪ Operates in continuous or single shot mode documents. ▪ On-chip active ambient light rejection The ISL29501-CS-EVKIT1Z kit also allows quick ▪ Regulated power 2.7V to 3.3V USB or external evaluation of the ISL29501 performance for a 2m supply sensing system.

  • Page 2: Table Of Contents

    ISL29501-CS-EVKIT1Z Cat Shark Assembly ........10...

  • Page 3: Functional Description

    Before meaningful measurements can be made the calibration registers in the chip need to be loaded. This can be done in two ways. The first is to load a profile that contains data into the GUI. This can be one of the Renesas provided profiles or one that was saved previously by the user.

  • Page 4: Operating Range

    The process for collecting data is described in AN1967, ISL29501 Temperature and Ambient Light Data Collection. Renesas strongly recommends that customers evaluate these parameters as a last step in their evaluation. To avoid temperature effects low integration times, reg 0x10 < 0x06 should be used.

  • Page 5: Board Design

    Figure 4. ISLI2UEV1Z Layout Guidelines The ISL29501-CS-EVKIT1Z PCB layout has been optimized for electrical and thermal performance. Care needs to be placed in decoupling circuits and noise isolation. Cat Shark follows good design techniques but additional suggestions are available in AN1917, ISL29501 Layout Design Guide (see...

  • Page 6: Schematic Diagrams

    ISL29501-CS-EVKIT1Z Evaluation Kit Manual Schematic Diagrams 2.2.1 ISLI2UEV1Z Figure 5. ISLI2UEV1Z Schematic UG081 Rev.1.00 Page 6 Apr 5, 2022...

  • Page 7: Isl29501-Cs1Z Optics Board

    ISL29501-CS-EVKIT1Z Evaluation Kit Manual 2.2.2 ISL29501-CS1Z Optics Board Figure 6. ISL29501-CS1Z Schematic - Optics Sheet UG081 Rev.1.00 Page 7 Apr 5, 2022...

  • Page 8: Bill Of Materials

    ISL29501-CS-EVKIT1Z Evaluation Kit Manual Bill of Materials 2.3.1 ISLI2UEV1Z Reference Designator Description Manufacturer Manufacturer Part PWB-PCB,ISLI2UEV1Z, IMAGINEERING INC ISLI2UEV1ZREVBPCB REVB, ROHS CAP,SMD, 0402, 0.1µF, 25V, C2, C4, C5, C6, C8, C11 MURATA GRM155R71E104KE14D 10%, X7R, ROHS CAP, SMD, 0402, 100pF,...

  • Page 9: Isl29501-Cs1Z Optics Board

    ISL29501-CS-EVKIT1Z Evaluation Kit Manual Reference Designator Description Manufacturer Manufacturer Part RES, SMD, 0402, 499Ω, VENKEL CR0402-16W-4990FT 1/16W, 1%, TF, ROHS FERRITE BEAD, 1 LINE FB1, FB2, FB3 SIGNAL, SMD, 0402, 470Ω MURATA BLM15BD471SN1D at 100MHz, 200mA, ROHS DO NOT POPULATE OR...

  • Page 10: Isl29501-Cs-Evkit1Z Cat Shark Assembly

    ISL29501-CS-EVKIT1Z Evaluation Kit Manual 2.3.3 ISL29501-CS-EVKIT1Z Cat Shark Assembly Reference Designator Description Manufacturer Manufacturer Part CABLE, FLAT-FLEX, SEE ASSEMBLY 8CONDUCT, 0.5mmPITCH, MOLEX 152660073 INSTRUCTIONS 30mmLENGTH, ROHS CABLE-USB TYPE A MALE to BAG & SHIP W/BOARD TYPE MICRO-B MALE, 3FT, QUALTEK ELECTRONICS...

  • Page 11: Board Layout

    ISL29501-CS-EVKIT1Z Evaluation Kit Manual Board Layout 2.4.1 ISL29501-CS1Z PCB Layers Figure 7. Layer 1 Figure 8. Layer 2 Figure 9. Layer 3 Figure 10. Layer 4 UG081 Rev.1.00 Page 11 Apr 5, 2022...

  • Page 12: Isli2Uev1Z Pcb Layers

    ISL29501-CS-EVKIT1Z Evaluation Kit Manual 2.4.2 ISLI2UEV1Z PCB Layers Figure 11. Layer 1 (Viewed from Top) Figure 12. Layer 2 (Viewed from Top) Ordering Information Part Number Description ISL29501-CS-EVKIT1Z ISL29501 Cat Shark evaluation kit Revision History Revision Date Description 1.00 Apr 5, 2022 Applied new template.
