Renesas ISL29501-CS-EVKIT1Z User Manual

ISL29501-CS-EVKIT1Z
Cat Shark User Guide
Description
The ISL29501-CS-EVKIT1Z is a distance measurement
reference design consisting of an optical board and a
controller board. It combines the
OSRAM SFH 4550 IR emitting LED and OSRAM SFH 213FA
photo-diode. The two circuit boards are connected together
with a flat flex cable. Included is a USB flash drive containing
the evaluation software for a PC and related technical
documents.
The ISL29501-CS-EVKIT1Z kit also allows quick evaluation of
the ISL29501 performance for a 2m sensing system.
Specifications
This board has been configured and optimized for the following
operating conditions:
• Micro USB 2.0 connection
• V = 5V (USB power)
IN
• I maximum = 225mA
DD
• P optical maximum = 70mW
• Wavelength = 860nm
• Optical duty cycle maximum = 50%
• Emission angle = ±3°
• Coherent light - No
USB 5V
LDO
8051
HOST
CONTROLLER
UG081 Rev 0.00
June 27, 2016
ISL29501 chip with an
C
1
R
4
R
5
R R R
1 2 3
C
4

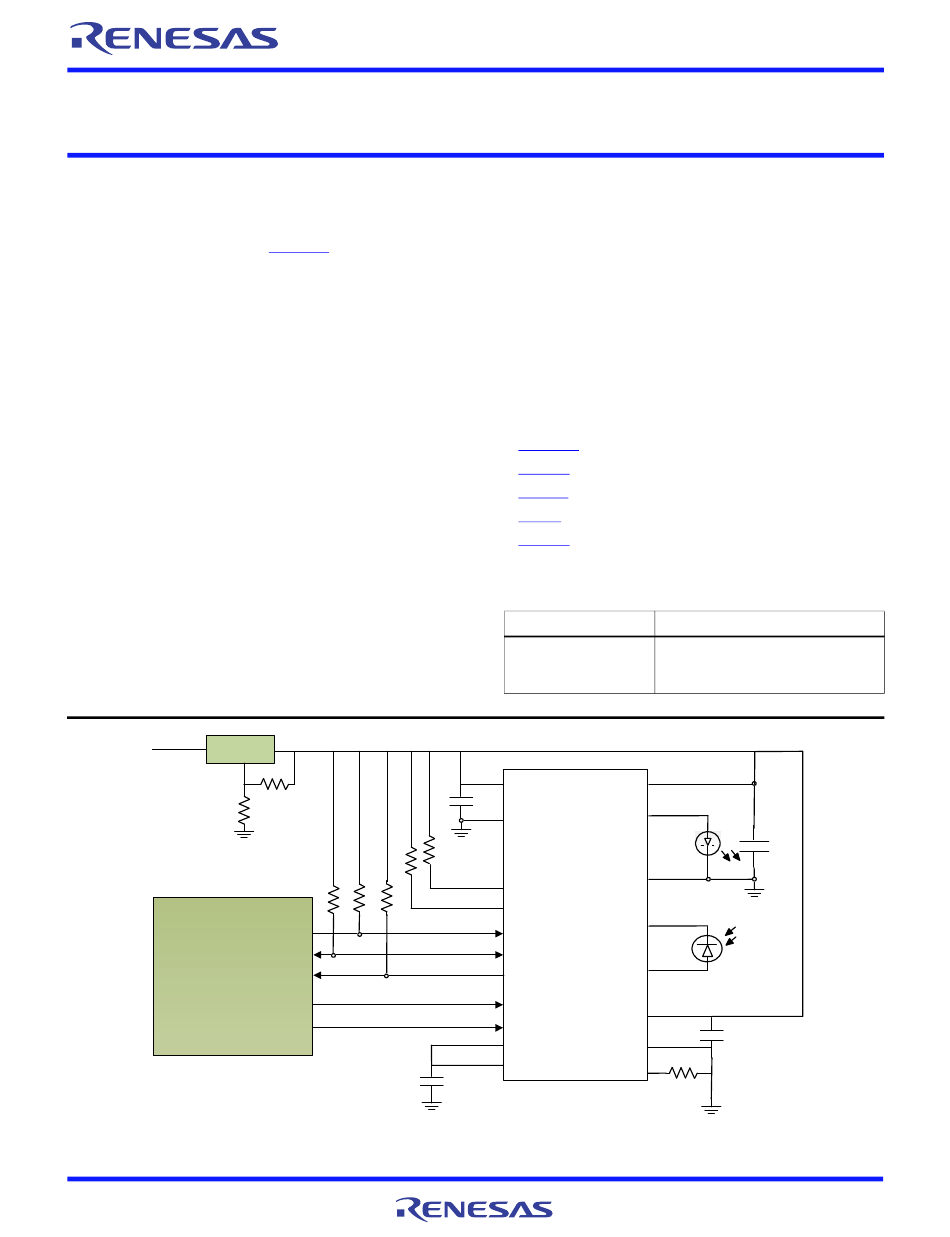

FIGURE 1. CAT SHARK BLOCK DIAGRAM
USER'S MANUAL
Key Features
• Self contained measurement system
• Enables proximity detection and distance measurement
• Emitter DAC with programmable current up to 255mA
• Operates in continuous or single shot mode
• On-chip active ambient light rejection
• Regulated power 2.7V to 3.3V USB or external supply
2
• I C interface supporting 1.8V and 3.3V bus
• Small size 38mmx20mm
References
• ISL29501 Datasheet
• AN1966, "ISL29501 Sand Tiger Optics Application Note"
• AN1917, "ISL29501 Layout Design Guide"
• UG054, "ISL29501 Evaluation Software User Guide"
• AN1967, "Temperature and Ambient Light Data Collection"
Ordering Information
PART NUMBER
ISL29501-CS-EVKIT1Z ISL29501 Cat Shark evaluation kit,
(EVB, USB cable, software, technical
documentation)
2.7V TO 3.3V
DVCC
EVCC
EIR
DVSS
IR
LED
EVSS
A1
A2
ISL29501
PDp
SCL
PD
SDA
PDn
IRQ
SS
AVCC
CEn
VOUT
AVSS
RSET
AVDD
R
UG081
Rev 0.00
June 27, 2016
DESCRIPTION
C 2
C
3
4
