Parts

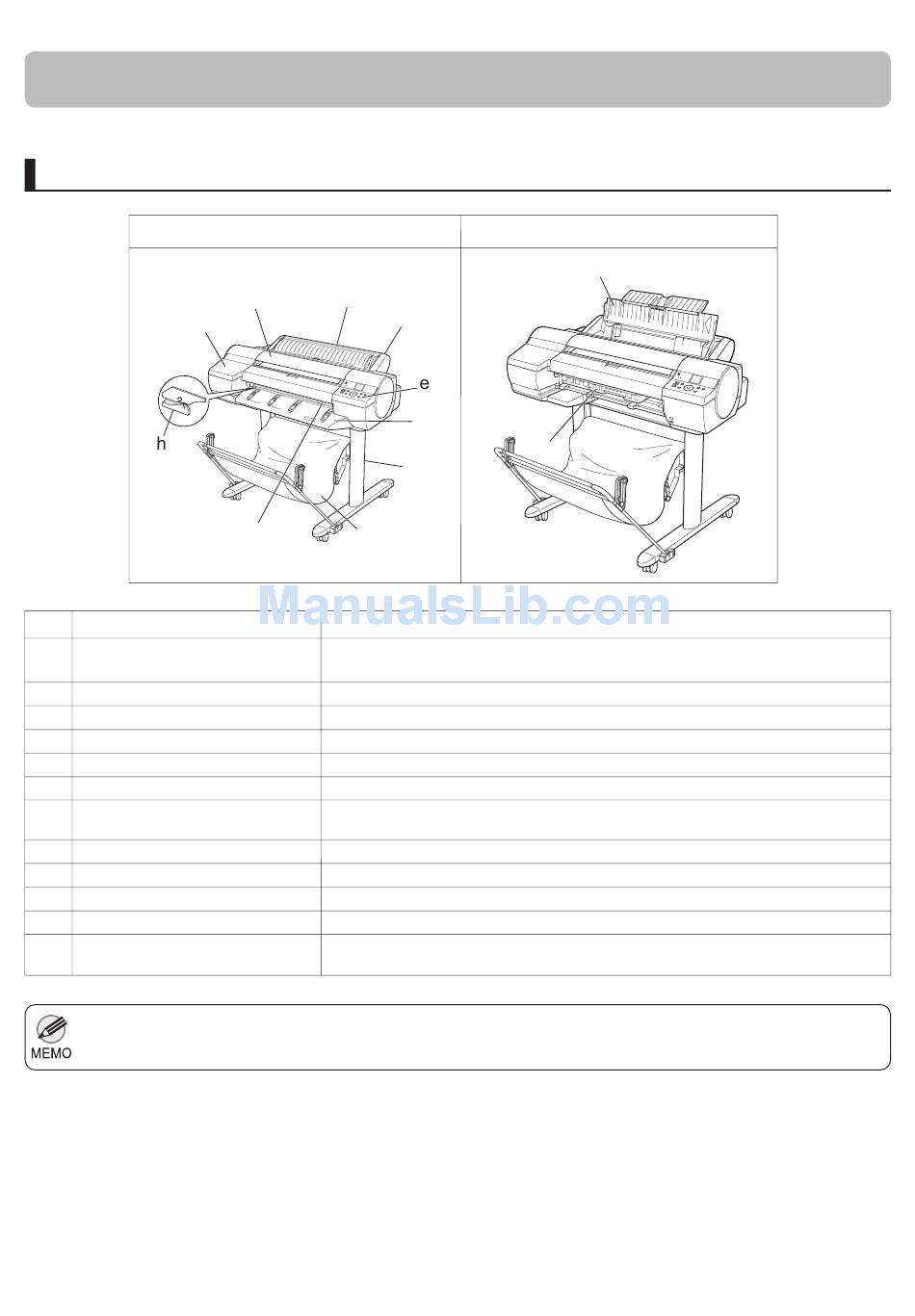

Names and functions of printer parts are as follows.
Front
j
Name
a Top Cover
b Paper Tray Cover
c Roll Feed Unit
d Roll Feed Unit Cover
e Control Panel
f Ejection Guide
g Output Tray ( Front Paper Feed
Slot )
h Cutter Unit
i Maintenance Cartridge
j Ink Tank Cover
k Stand
l Output Stacker
• The Stand is normally offered as an option, but it may be provided as a standard accessory in some sales regions.
Standard
d
a
c
f
k
g
l
Open this cover to install the Printhead and remove any jammed paper from inside
the printer, as needed.
Open this cover to load a sheet in the Top Paper Feed Slot .
Load rolls in this unit. You can also load sheets manually.
Open this cover to load rolls.
Use this panel to operate the printer and check the printer status.
Supports paper to prevent it from rising.
All printed documents are ejected from this slot. When loading heavyweight paper,
insert it here.
A round-bladed cutter for automatic roll cutting.
Absorbs excess ink.
Open this cover to replace an Ink Tank .
A stand that holds the printer. Equipped with casters to facilitate moving it.
Printed documents are ejected into the output stacker. The Output Stacker can
hold one sheet.
With the Ejection Guide removed
b
i
Operation
