APPENDIX B
PATTON ELECTRONICS MODEL 593 SERIES
EIA-530 PIN CONFIGURATIONS
DIRECTION
"DCE" SETTING
To Model 593 Series Receive Data-B (RD)-16
From Model 593 Series Transmit Data-B (RD)-14
Copyright © 1999
Patton Electronics Company
All Rights Reserved
DIRECTION
7- Signal Ground
3-(RD) Receive Data-A
From Model 593 Series
2-(TD) Transmit Data-A
To Model 593 Series
15
USER
MANUAL
MODELS 593/25, 593/45
and 593/TB
RS-422/RS-485
Optical Isolators
Part# 07M593
SALES OFFICE
Doc# 055041U Rev. A
(301) 975-1000
Revised 07/05/00
TECHNICAL SUPPORT
(301) 975-1007
An ISO-9001
http://www.patton.com
Certified
Company
Advertisement
Table of Contents
Related Manuals for Patton electronics 593/25, 593/45, 593/TB, RS-422, RS-485
Summary of Contents for Patton electronics 593/25, 593/45, 593/TB, RS-422, RS-485

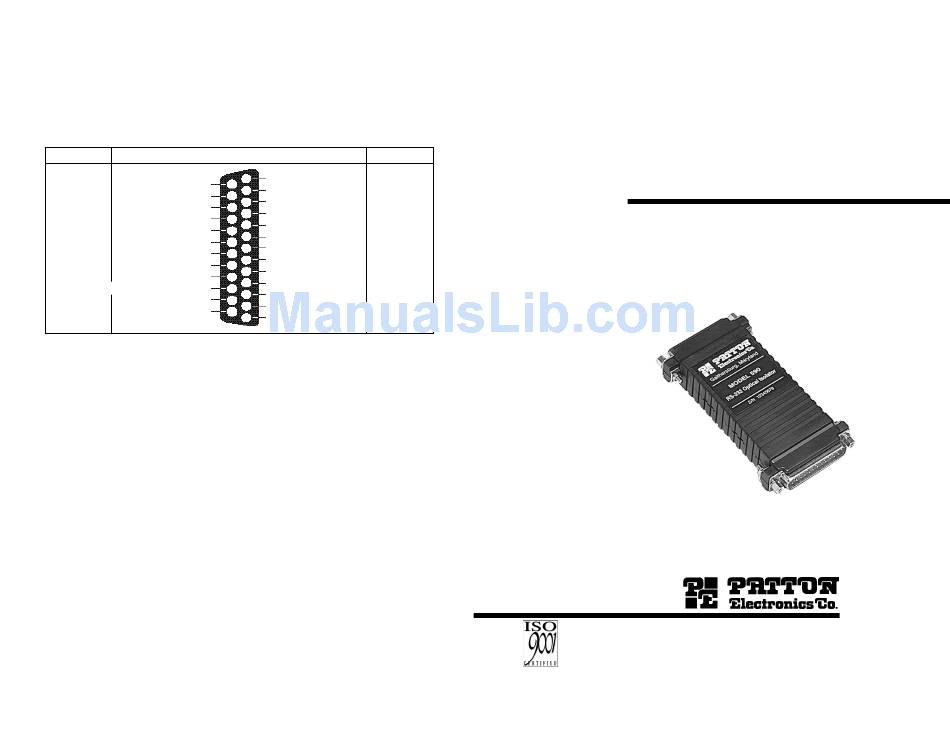

- Page 1 APPENDIX B PATTON ELECTRONICS MODEL 593 SERIES EIA-530 PIN CONFIGURATIONS DIRECTION “DCE” SETTING 7- Signal Ground To Model 593 Series Receive Data-B (RD)-16 3-(RD) Receive Data-A 2-(TD) Transmit Data-A From Model 593 Series Transmit Data-B (RD)-14 Copyright © 1999 Patton Electronics Company All Rights Reserved DIRECTION From Model 593 Series...
-
Page 2: Table Of Contents
3.1.3 Two-Wire Half Duplex Operation 3.1.4 Four-Wire Half Duplex 3.2 JP7 & JP8 Strap Locations 3.3 Data Rates Dip Switch Setting S2 and S3 4.0 Installation ...9 4.1 Connecting to The RS-422 or Rs-485 Interface 4.1.1 4-Wire Connection Using RJ-45 4.1.2 2-Wire Connection Using RJ-45... -
Page 3: General Information
RS-422/RS-485 optical isolators, which guard your asynchronous data equipment from the hazards of ground looping. All Models have selectable Dip switch settings for RS-422/RS-485 applications. The Model 593 series provides 2500Vrms of isolation and supports data rates up to 115.2 kbps. Models 593/25F/45/TB are powered by an external +5V regulated power supply. -
Page 4: Dip Switch S2 & S3 Location
The following sections describe all the possible configurations. NOTE: When selecting any hardware configurations below, Switch S2 and Switch S3 must be set the same. 3.1.2 Full/Half Duplex S2-1 and S3-1 Switches S2-1 and S3-1 determine full duplex or half duplex trans- mission mode. -
Page 5: Data Rates Dip Switch Setting S2 And S3
S1-3 S4-3 3.3 Data Rates DIP Switch Setting S2 and S3 The table below shows the data rates DIP switch settings for S2 and S3. Switches S2 and S3 must be set identically to operate properly. Switch Positions S2 Position... -
Page 6: Installation
4.0 INSTALLATION Once you have properly set the configuration switches and jumpers, you are ready to connect Models 593/25F, 593/45, or 593/TB to your system. This section tells you how to connect the interfaces and how to operate your Model 593/25F, 593/45, or 593/TB. 4.1 CONNECTING TO THE RS-422 OR RS-485 INTERFACE To function properly, the Models 593/25F, 593/45, and 593/TB must have one or two pair of twisted pairs of metallic wire. -
Page 7: 2-Wire Connection Using
4.1.2 2-Wire Connection Using RJ-45 Most RS-485 devices employ a two-wire, half duplex configuration. When using this configuration, be sure to first set the Model 593/45 to half duplex mode by switching DIP switches and jumpers (refer to sec- tion 3.0 for this configuration)—then use only the transmit (XMT) pair as shown below 593/45 SIGNAL RS-485 SIGNAL... -
Page 8: 2-Wire Connection Using
4.1.5 4-Wire Connection Using DB-25 Most DB-25 connectors on the Model 593/25F conform to EIA-530 interface standards. When connecting to the RS-422/485 devices which also conform to EIA-530 standards, your cable should have crossed over wiring, as shown below. Model 593/TB RS-485 SIGNAL DB-25 PIN...
