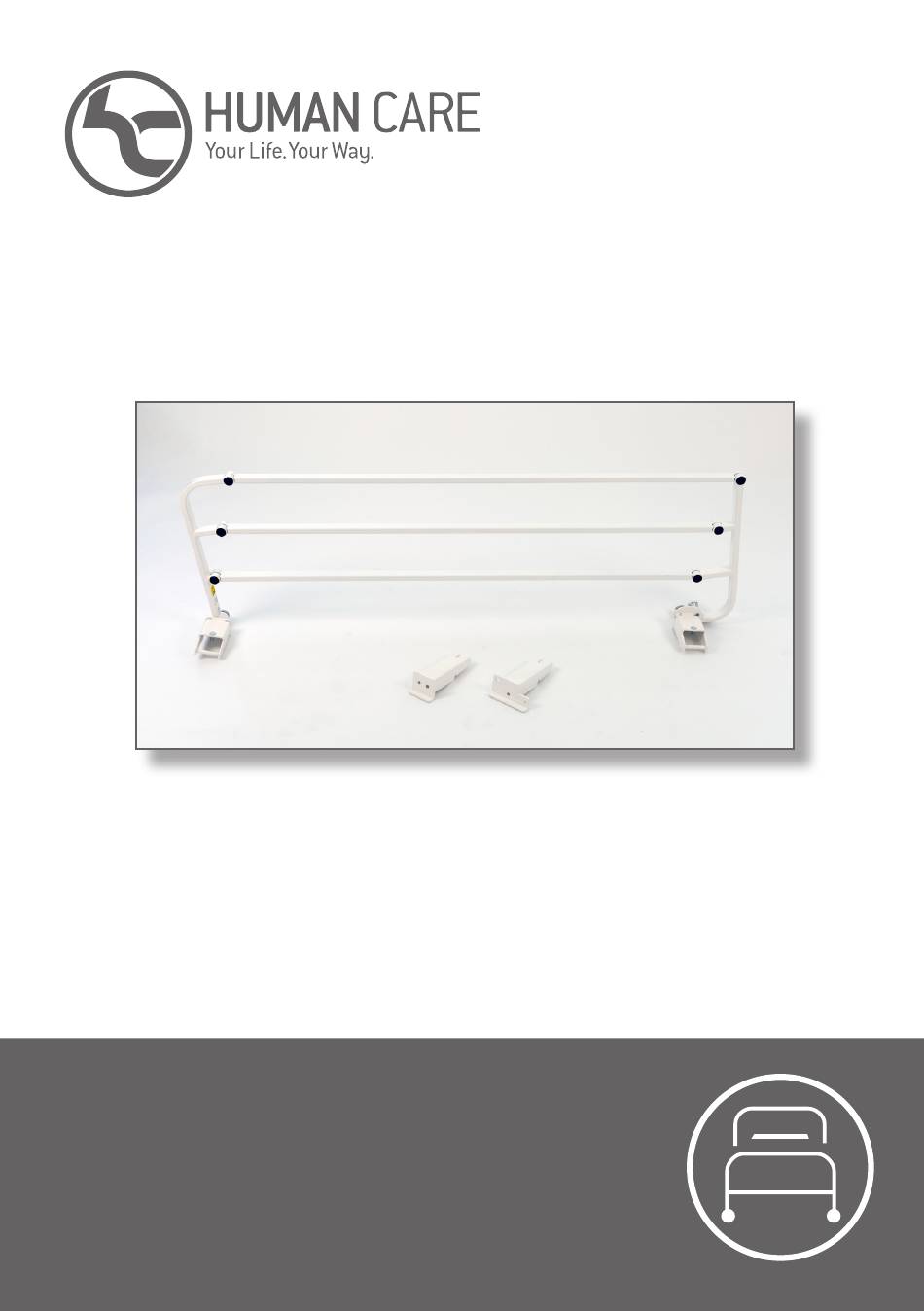

- Page 1 1/4 Side Rail, 1/2 Side Rail, 3/4 Side Rail 72794 / 72795 / 72797 User Manual...
-
Page 2: Table Of Contents
Content ENGLISH User Manual Compliances and Standards Technical Specifications Responsibility of users Safety Advice Intended Use Assembly/Disassembly Instructions Operation Instructions Maintenance and Service Recycling www.humancaregroup.com... -
Page 3: User Manual
Notice to user/patient in case of serious incident Human Care’s products are continuously Any serious incident that has occurred in being developed and updated to provide our relation to the product, should be reported customers with the highest quality. -
Page 4: Compliances And Standards
You should therefore also regard this User or damage to product may occur! Manual, as a practical reference book, to be Please contact Human Care in the event of any kept near the product and readily available uncertainties or questions. -
Page 5: Technical Specifications
Technical Specifications Specifications measurements (mm / inch) 72794 (Side Rail 1/4) H x L: 320 mm x 546 mm / 12.6” x 21.5” 72795 (Side Rail 1/2) H x L: 320 mm x 680 mm / 12.6” x 25.6” 72797 (Side Rails 3/4) H x L: 320 mm x 1370 mm / 12.6”... -
Page 6: Safety Advice
Side Rail Safety Advice Safety Symbol Safety advice for the user In this manual the adjacent safety warning Make sure that the operator instructs you in the symbol is shown as: safe operation of this product. This safety symbol does not Each time, before using the product, check that it is in perfect working order. -
Page 7: Intended Use
Accessory intended for the following Floorline Beds This accessory should only be used with It is important that only Human Care accessories Floorline models from Human Care with the are fitted to Human Care beds, as any article numbers in the below table. -
Page 8: Assembly/Disassembly Instructions
Side Rail Assembly/Disassembly Instructions Assembly Side Rail 1/4 (72794) Content: Number Description Qty. Side Rail ¼ Left Side Rail ¼ Right Bracket A Left Bracket A Right Bracket B Left Bracket B Right Knob Screws and nuts www.humancaregroup.com... - Page 9 Assembly: * NOTE! When installing side rail 1/4 (72794) on older beds, you need to drill holes in Step 1. Mount the brackets (2L, 2R, 3L, 3R) in the back of the frame. This is easily done the holes * on the head end of the bed frame by using the existing two holes on each with the included screws (5).
- Page 10 Side Rail Assembly Side Rail 1/2 (72795) Content: Number Description Qty. Side Rail ½ Left Side Rail ½ Right Bracket A Left Bracket A Right Bracket B Left Bracket B Right Knob Screws and nuts www.humancaregroup.com...
- Page 11 Assembly: Step 1. Mount the brackets (2L, 2R, 3L, 3R) in the holes on the foot end of the bed frame with the included screws (5). Step 2. Slide the side rails (1L, 1R) onto the brackets and tighten the knobs (4). www.humancaregroup.com...
- Page 12 Side Rail Assembly Side Rail 3/4 (72797) Content: Number Description Qty. Side Rail ¾ Left Side Rail ¾ Right Bracket A Left Bracket A Right Bracket B Left Bracket B Right Knob Screws and nuts www.humancaregroup.com...
- Page 13 Assembly: Step 1. Mount the brackets (2L, 2R, 3L, 3R) in the holes on the head end of the bed frame with the included screws (5). Step 2. Slide the side rails (1L, 1R) onto the brackets and tighten the knobs (4). www.humancaregroup.com...
- Page 14 Side Rail Operation Instructions Human Care offers side rails in three different versions: ¾ length, ½ length and ¼ length. Below operation instructions are relevant for all of the side rail options from Human Care. 1. The side rails are assembled and in their upright position.
- Page 15 Maintenance and service Inspection, care and maintenance check list User inspections of this accessory should be carried out together with the Floorline bed every 6 months. Check: • Check for Damage/Cleanliness Faults: See bed description, accessories and Action • Confirm Secure all functions Cleaning •...
- Page 16 HUMAN CARE SWEDEN (HQ) Årstaängsvägen 21B 117 43 Stockholm Phone: +46 8 665 35 00 Fax: +46 8 665 35 10 Email: info.se@humancaregroup.com HUMAN CARE CANADA 10-155 Colonnade Road Ottawa, ON K2E 7K1 Phone: +1 613 723 6734 Fax: +1 613 723 1058 Email: info.ca@humancaregroup.com...
