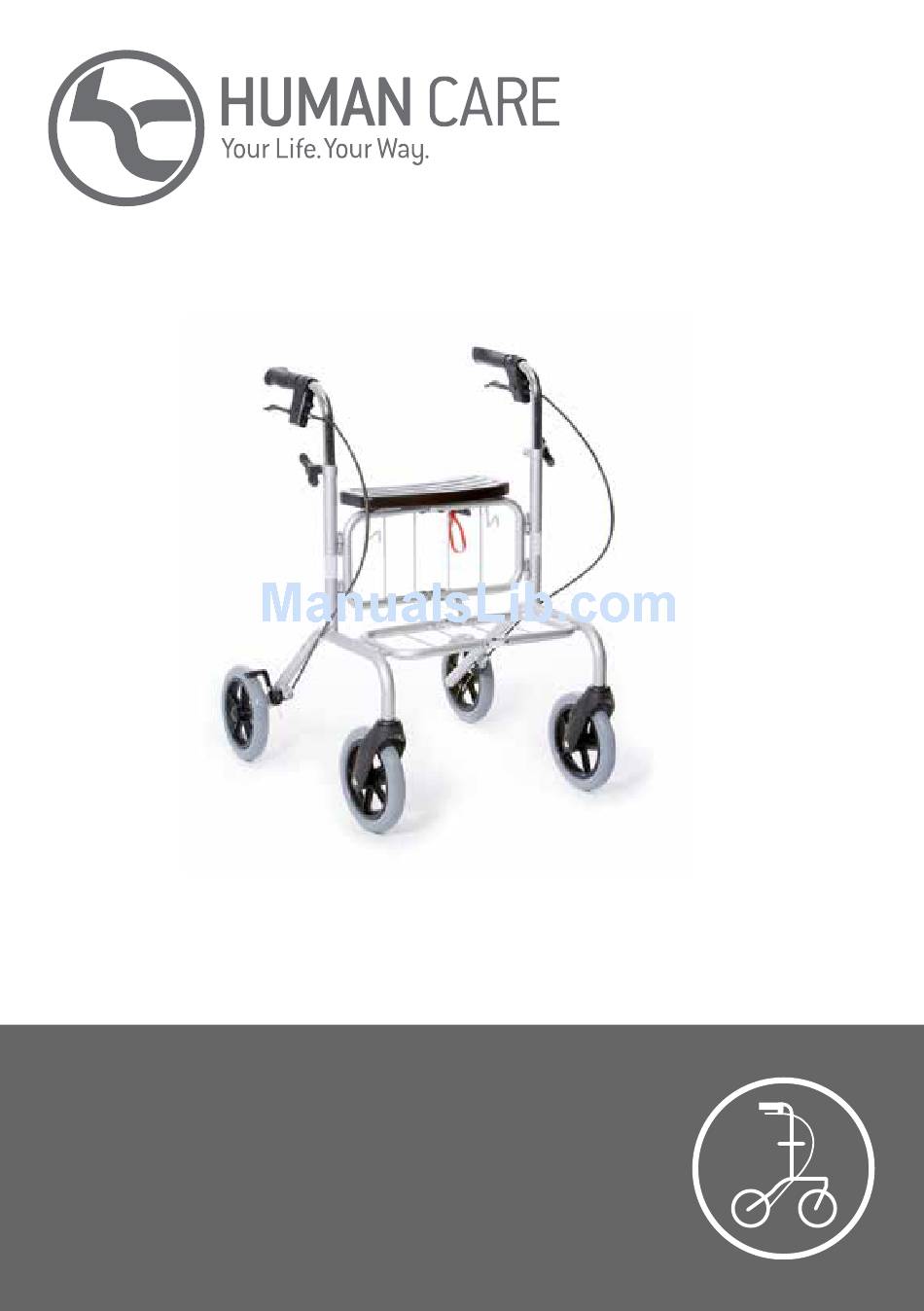

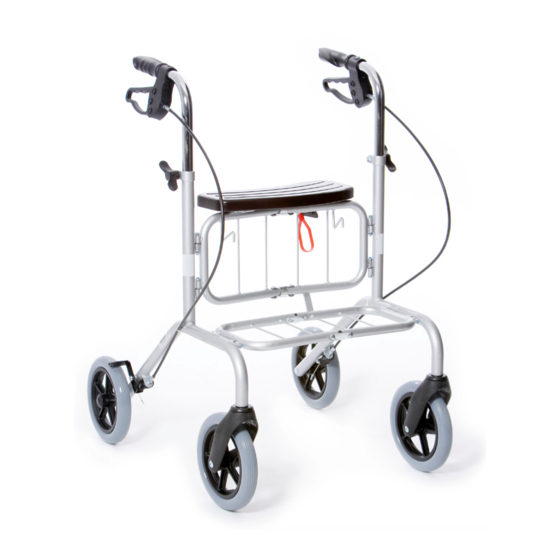

  • Page 1 Accessory manual Parade...

  • Page 2: Accessory Overview

    Assembly Tray Montering bricka Assembly cane holder Montering käpphållare Assembly Back Support Montering ryggband Accessory Manual (ENG) Parade Accessory overview Tray Curb climber Practical for resting light weight items. Helps raise the rollator onto a curb. Part no. 10664 Part no: 10661...

  • Page 3: Assembly Tray

    Assembly Tray Assemble the tray on to the seat of the rollator as according to picture. Remove the tray from the seat by pulling in the back of the tray. Assembly cane holder The cane holder is delivered in two main parts, an 1.

  • Page 4: Assembly Back Support

    2. Place the parts around the pipe and tighten the NOTE! Make sure the cup/bracket is fixed. screws (Figure 2). Figur 2 Assembly Back Support The back support comes with the following parts: A: Holder (2st) B: Holder (2st) C: Screw M4x14 (4st) D: Screw M4x20 (8st) E: Nut M4 (8st) Fold both ends of the back strap (so they overlap...
  • Page 5 The screw D is for the rear holes. Pay attention to cracks and loose parts. Make sure the back support is firmly tightened by pulling it. Tillbehörsmanual (SE) Parade Tillbehörsöversikt Bricka Steghjälp Underlättar förflyttning av saker. Underlättar förflyttningen över hinder.

  • Page 6: Montering Bricka

    Montering bricka Montera brickan på rollatorns sits enligt figur. Brickan demonteras från sitsen genom att dra i brickans bakkant. Montering käpphållare Käpphållaren levereras i två huvuddelar, en överdel och en underdel. Dessa består i sin tur av ytterligare två delar, kontrollera att du har fått dessa.

  • Page 7: Montering Ryggband

    Montering ryggband Ryggbandet levereras med följande detaljer: A: Hållare (2st) B: Hållare (2st) C: Skruv M4x14 (4st) D: Skruv M4x20 (8st) E: Mutter M4 (8st) F: Ryggband (1st) Montering av ryggbandet på rollatorn Placera hållarna (A och B) på röret där bockningen startar och skjut in ryggbandets ände mellan de.
  • Page 8 HUMAN CARE SWEDEN (HQ) Årstaängsvägen 21B 117 43 Stockholm Phone:- +46 8 665 35 00 Fax:- +46 8 665 35 10 E-post: info.se@humancaregroup.com www.humancare.se HUMAN CARE CANADA 10-155 Colonnade Road Ottawa, ON K2E 7K1 Phone:- 613.723.6734 Fax:- 613.723.1058 Email: info.ca@humancaregroup.com www.humancaregroup.com...
