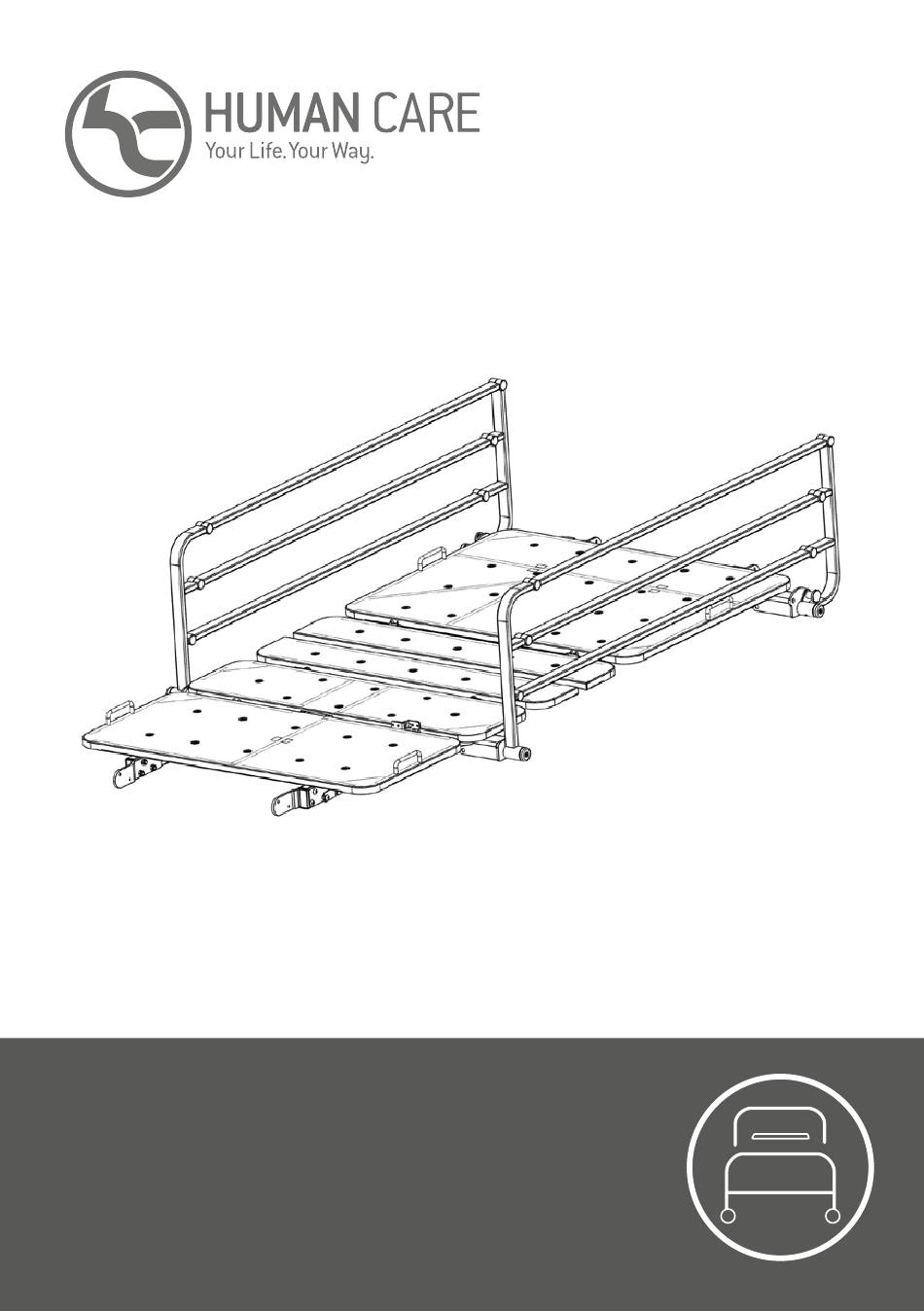

- Page 1 Side Rails Floorline i, Floorline i-Plus and Floorline LTC Part number: 72794, 72795 and 72797 Assembly instructions...
- Page 2 Content ENGLISH Assembly Side Rail 1/4 (72794) Assembly Side Rail 1/2 (72795) Assembly Side Rail 3/4 (72797) www.humancaregroup.com...
- Page 3 Please contact your local dealer if you have any At Human Care, we continue to develop and questions about the product and its use. improve our products in order to offer our cus- tomers the highest quality. We reserve the right...
-
Page 4: Side Rails
Side Rails Assembly Side Rail 1/4 (72794) Content: Number Description Qty. Side Rail ¼ Left Side Rail ¼ Right Bracket A Left Bracket A Right Bracket B Left Bracket B Right Knob Screws and nuts www.humancaregroup.com... - Page 5 Assembly: * NOTE! When installing side rail 1/4 (72794) on older beds, you need to drill Step 1. Seen from the foot end, mount the holes in the back of the frame. This is brackets (2L, 2R, 3L, 3R) in the holes * on the easily done by using the existing two ho- bed frame with the included screws (5).
- Page 6 Side Rails Assembly Side Rail 1/2 (72795) Content: Number Description Qty. Side Rail ½ Left Side Rail ½ Right Bracket A Left Bracket A Right Bracket B Left Bracket B Right Knob Screws and nuts www.humancaregroup.com...
- Page 7 Assembly: Step 1. Seen from the foot end, mount the brackets (2L, 2R, 3L, 3R) in the holes on the bed frame with the included screws (5). Step 2. Slide the side rails (1L, 1R) onto the brackets and tighten the knobs (4). www.humancaregroup.com...
- Page 8 Side Rails Assembly Side Rail 3/4 (72797) Content: Number Description Qty. Side Rail ¾ Left Side Rail ¾ Right Bracket A Left Bracket A Right Bracket B Left Bracket B Right Knob Screws and nuts www.humancaregroup.com...
- Page 9 Assembly: Step 1. Seen from the foot end, mount the brackets (2L, 2R, 3L, 3R) in the holes on the bed frame with the included screws (5). Step 2. Slide the side rails (1L, 1R) onto the brackets and tighten the knobs (4). www.humancaregroup.com...
- Page 10 HUMAN CARE SWEDEN (HQ) Årstaängsvägen 21B 117 43 Stockholm Phone: +46 8 665 35 00 Fax: +46 8 665 35 10 Email: info.se@humancaregroup.com HUMAN CARE CANADA 10-155 Colonnade Road Ottawa, ON K2E 7K1 Phone: +1 613 723 6734 Fax: +1 613 723 1058 Email: info.ca@humancaregroup.com...
