Summary of Contents for AC Infinity ADVANCE GROW

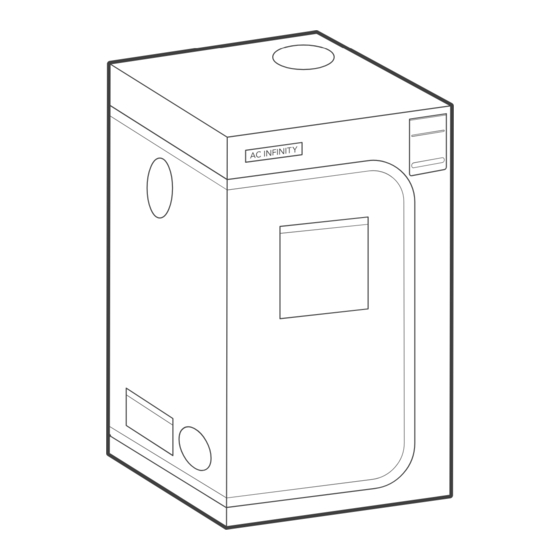

- Page 1 ADVANCE GROW SYSTEM COMPLETE INDOOR PLANT KIT USER MANUAL...
- Page 3 PROUD TO PRESENT TO YOU THE ADVANCE GROW SYSTEM Thank you for choosing AC Infinity. As growers, we’ve dreamt of applying commercial levels of automation technology to our systems, scaled down for home growing, without the commercial level price tag. Now we’ve made it possible.
- Page 4 MANUAL CODE PK2111X1 PRODUCT MODEL Advance Grow Tent Kit (2x2) COMPACT AC-PKA22 819137022829 Advance Grow Tent Kit (2x2) AC-PKB22 819137022836 Advance Grow Tent Kit (2x4) AC-PKB24 819137022843 Advance Grow Tent Kit (3x3) AC-PKB33 819137022850 Advance Grow Tent Kit (4x4) AC-PKB44...
-
Page 5: Table Of Contents
Manual Index ....................Page 7 Product Warning ................... Page 8 Product Contents ..................Page 10 Quick Build Guide ..................CLOUDLAB: Advance Grow Tent ............... Page 12 Product Contents ................... Page 13 Tent Setup ..................... Page 15 Page 20 Controller Plate Setup ................ - Page 6 MANUAL INDEX Page 60 CLOUDRAY: Circulation Fan System ............Page 61 Product Contents ................... Page 62 Installation ..................... Page 65 Programming ..................CONTROLLER 69: Universal Infinity System Controller Page 66 ......Product Contents ................... Page 67 Powering and Setup ................Page 68 Mounting ....................
-
Page 7: Product Warning
PRODUCT WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Ensure your power source conforms to the electrical requirements of this product. Check your local code restrictions for additional safety measures that may be needed for a proper code compliant installation. -
Page 8: Product Contents
PRODUCT CONTENTS OVERVIEW CLOUDLAB CONTROLLER 69 CLOUDLINE LITE Advance Grow Tent UIS Controller Inline Fan BOX A BOX B BOX C IONBOARD CLOUDRAY INLINE LED Grow Light Clip Fan CARBON FILTER BOX E BOX F BOX D DUCTING FABRIC POTS,... - Page 9 PRODUCT CONTENTS DETAILS Advance Grow Advance Grow Advance Grow Advance Grow Advance Grow Tent Kit (2x2) Tent Kit (2x2) Tent Kit (2x4) Tent Kit (3x3) Tent Kit (4x4) COMPACT AC-PKB22 AC-PKB24 AC-PKB33 AC-PKB44 AC-PKA22 CLOUDLAB 422, CLOUDLAB 722, CLOUDLAB 642,...
-
Page 10: Quick Build Guide
QUICK BUILD GUIDE Build the Grow Tent (BOX A). Install the Inline Fan with Straps (BOX C), Ducting and Clamps (BOX G) to your Refer to pages 12-25. preferred configuration. Refer to pages 26-39. You may connect and hang Hang the Grow Light Clamp the Clip Fan the Carbon Filter with Straps using Rope Hangers... - Page 11 Mount the Grow Tent Controller (BOX B) onto the Controller Plate (BOX A). Refer to page 20. Plug the probe into the probe port. Plug the Inline Fan’s controller cable (BOX C) into Port 1, the Grow Light’s controller cable (BOX D) into Port 2, and the Clip Fan’s controller cable (BOX E) into Port 3.
-
Page 12: Cloudlab: Advance Grow Tent
CLOUDLAB SERIES ADVANCE GROW TENT... -
Page 13: Product Contents
ADVANCE GROW TENT PRODUCT CONTENTS Advance Grow Advance Grow Advance Grow Advance Grow Advance Grow Tent Kit (2x2) Tent Kit (2x2) Tent Kit (2x4) Tent Kit (3x3) Tent Kit (4x4) COMPACT AC-PKB22 AC-PKB24 AC-PKB33 AC-PKB44 AC-PKA22 CLOUDLAB 422, CLOUDLAB 722,... - Page 14 CLOUDLAB PRODUCT CONTENTS CLOUDLAB SERIES Included only with CLOUDLAB 422 AC-CBA422 CLOUDLAB 722 AC-CBA722 FRAME POLES CLOUDLAB SERIES Included only with CLOUDLAB 642 AC-CBA642 FRAME POLES CLOUDLAB SERIES Included only with CLOUDLAB 733 AC-CBA733 CLOUDLAB 844 AC-CBA844 FRAME POLES NOTE: Pole lengths may vary between all models.
-
Page 15: Tent Setup
CLOUDLAB TENT SETUP STEP 1 Insert the eight (A) poles* and into the floor end of the corner (D1) pieces to create two bases. When assembling, make sure the feet of A / A1 each corner (D1) piece faces the floor with the arrow facing down. - Page 16 CLOUDLAB TENT SETUP STEP 3 Door Unzip the tent so that three of the walls lay flat. Roof Floor STEP 4 Guide Base One into the floor of the tent, making sure its corners meet the tent’s corners. Base One Floor...
- Page 17 CLOUDLAB TENT SETUP STEP 5 Insert the poles of Base Two into the poles of Base One to complete the frame. Base Two Base One Two people is recommended for this portion of the tent assembly. STEP 6 Pull the roof over the assembled frame. Two people is recommended for this portion of the tent assembly.
- Page 18 CLOUDLAB TENT SETUP STEP 7 Pull the upper and lower zippers to close the walls and door. *CLOUDLAB 733 / 844 are built with additional side doors. STEP 8 You can neatly hold the window wall open any time by using its attached Velcro strap.
- Page 19 CLOUDLAB TENT SETUP STEP 9 Add the roof support beams (E) then (F). Insert the spill pool into the tent and secure the Velcro straps around the poles. CLOUDLAB 422 / 722 CLOUDLAB 733 CLOUDLAB 844 CLOUDLAB 642 *CLOUDLAB 733 / 844 are built with additional side doors.
-
Page 20: Controller Plate Setup
CLOUDLAB CONTROLLER PLATE SETUP STEP 1 Magnetically mount the controller onto the bracket. STEP 2 Slide the controller bracket assembly into the tent straps. - Page 21 CLOUDLAB CONTROLLER PLATE SETUP STEP 3 Route your inline duct fan’s power connector through the opening inside and plug it into your controller. Plug the probe into the controller and route its cables through the opening.
-
Page 22: Mounting Guide
MOUNTING GUIDE CONTROLLER PLATE This grow tent includes a steel plate with a mounting slot for AC Infinity controllers. Mount your controller to the corresponding areas on the plate’s slot. Route its wires through the oval opening and through the grow tent’s flap. Some controller models may contain a hidden magnet... -
Page 23: Ventilation Guide
CLOUDLAB VENTILATION GUIDE INLINE FAN AND GROW LIGHT First hang your inline duct fan to be use as an exhaust fan by the roof support beams. Position the intake fan at the bottom end so the intake air will be passive through the bottom vents. If you are installing a carbon filter inside, use the included straps to hang the carbon filter. -
Page 24: Configuration Setup
CLOUDLAB CONFIGURATION SETUP LIGHT AND VENTILATION PLACEMENT There are many ways to configure these components to bring airflow into your grow space. A typical setup places the fan and the filter inside, which makes it easier to manage while dampening the fan noise. Both can be situated in any order within the ventilation chain if air is being pulled out of your grow space. -
Page 26: Cloudline Lite: Mixed Flow Inline Fan System
CLOUDLINE LITE MIXED FLOW INLINE FAN SYSTEMS... -
Page 27: Product Contents
CLOUDLINE LITE PRODUCT CONTENTS Advance Grow Advance Grow Advance Grow Advance Grow Advance Grow Tent Kit (2x2) Tent Kit (2x2) Tent Kit (2x4) Tent Kit (3x3) Tent Kit (4x4) COMPACT AC-PKB22 AC-PKB24 AC-PKB33 AC-PKB44 AC-PKA22 CLOUDLINE CLOUDLINE CLOUDLINE CLOUDLINE CLOUDLINE... -
Page 28: Installation: Mounting
CLOUDLINE LITE INSTALLATION: MOUNTING STEP 1 Unscrew the bolts on both sides from the plastic rings using a Philips screwdriver. STEP 2 Remove the motor box from the flange bracket. Remove the wind circle between the motor box and the intake flange. - Page 29 CLOUDLINE LITE INSTALLATION: MOUNTING STEP 3 Use the flange bracket to set your desired fan position. Mark the four mounting holes. STEP 4 Drill four holes into the marked locations. Make sure your mounting area is structurally sound and free from obstruction.
- Page 30 CLOUDLINE LITE INSTALLATION: MOUNTING STEP 5 If you are mounting onto anything other than a wood support or stud, insert the included four wall anchors into the drilled mounting holes. You may need to use a hammer to secure them through the holes. STEP 6 Align the flange bracket’s holes with the wall anchors.
- Page 31 CLOUDLINE LITE INSTALLATION: MOUNTING STEP 7 Place the wind circle back into the intake flange. STEP 8 Slide the motor box back into the flange bracket, making sure its airflow arrow is pointing in the same direction as the flange bracket’s arrow. Screw the bolts back into the plastic rings to secure the motor box to the flange bracket.
- Page 32 CLOUDLINE LITE INSTALLATION: MOUNTING STEP 9 If installing ducting, use the included duct clamps to secure it to either end of the duct fan, making sure there is a tight seal. Tighten the duct clamps using a flathead screwdriver. POWERING AND SETUP Plug the fan’s power cord into an AC power outlet to power it and the controller.
-
Page 33: Installation: Hanging - Straps
CLOUDLINE LITE INSTALLATION: HANGING - STRAPS STEP 1 Loop the strap around the bracket and a pole. STEP 2 Slip the strap through the inner ladder lock slot from the bottom. - Page 34 CLOUDLINE LITE INSTALLATION: HANGING - STRAPS STEP 3 Route the strap into the outer ladder lock slot from the top. Adjust the length of the completed loop as needed. STEP 4 Tuck the loose end through the center gap of the ladder lock to secure the loop.
- Page 35 CLOUDLINE LITE INSTALLATION: HANGING - STRAPS STEP 5(a) - Hanging Downward Let the fan hang by the pole once the straps are secure. Make sure the fan's airflow arrow is pointing towards your desired direction. STEP 5(b) - Hanging Upward To hang the fan right-side up, loop and tighten the straps, as shown in steps 1-4, around the pole.
-
Page 36: Installation: Motor Cap
CLOUDLINE LITE INSTALLATION: MOTOR CAP STEP 1 Unscrew the motor cap using a screwdriver. STEP 2 Rotate the motor cap to your desired orientation. Reapply the screws. Rotating the motor cap will not void your warranty. -
Page 37: Configuration Setup
CLOUDLINE LITE CONFIGURATION SET-UP INTAKE AND EXHAUST This fan can be used as either an intake fan or an exhaust fan in grow rooms and larger grow tents. To achieve optimal whole space ventilation, the intake fan or opening —if not using a fan— must be situated at a bottom corner of your grow space. -
Page 38: Cleaning
CLOUDLINE LITE CLEANING STEP 1 Remove the motor box from the mounting flange. Refer to steps 1-2 on page 28 to learn how to remove the motor box. STEP 2 Use a damp cloth to clear the impeller and fan blades of any dust and debris. Remove the wind circle in between the motor box and input flange. - Page 39 CLOUDLINE LITE CLEANING STEP 3 Clear the stator blades of any dust and debris on the opposite end. Clean the area inside the output and exhaust flanges. STEP 4 Secure the motor box onto the mounting flanges. Refer to steps 7-9 on pages 31-32 to learn how to secure the motor box.
-
Page 40: Duct Carbon Filter Premium Australian Charcoal
DUCT CARBON FILTER PREMIUM AUSTRALIAN CHARCOAL... -
Page 41: Product Contents
CARBON FILTER PRODUCT CONTENTS Advance Grow Advance Grow Advance Grow Advance Grow Advance Grow Tent Kit (2x2) Tent Kit (2x2) Tent Kit (2x4) Tent Kit (3x3) Tent Kit (4x4) COMPACT AC-PKB22 AC-PKB24 AC-PKB33 AC-PKB44 AC-PKA22 Inline Carbon Inline Carbon Inline Carbon... -
Page 42: Installation
CARBON FILTER INSTALLATION STEP 1 Slip the cloth over your filter to block dust and other particles from passing through. Make sure the entire metal mesh is covered by the cloth. STEP 2 Connect your duct tube over your filter. Use duct clamps to secure the connection. - Page 43 CARBON FILTER INSTALLATION STEP 3 You may also connect your filter directly to your inline duct fan. Use ducting tape to secure them together. STEP 4 If your filter is placed in a humid space, position it at the highest point possible.
-
Page 44: Installation: Overhead Hanging
CARBON FILTER INSTALLATION: OVERHEAD HANGING STEP 1 Loop the strap around a hanging pole. STEP 2 Slip the strap through the inner ladder lock slot from the bottom. - Page 45 CARBON FILTER INSTALLATION: OVERHEAD HANGING STEP 3 Route the strap into the outer ladder lock slot from the top. Adjust the length of the completed loop as needed. STEP 4 Tuck the loose ends through the center gap of the ladder lock to secure the loop.
- Page 46 CARBON FILTER INSTALLATION: OVERHEAD HANGING STEP 5 Connect your filter to your ductwork using your preferred method, as shown on pages 42-43.
-
Page 47: Configuration Setup
CARBON FILTER CONFIGURATION SET-UP INTERIOR HANGING To use this filter in intake applications, place the filter inside your grow space. Make sure your filter is connected to your inline duct fan's intake end before completing the installation. - Page 48 CARBON FILTER CONFIGURATION SET-UP EXTERIOR MOUNTING To use this filter in exhaust applications, place the filter outside of your grow space. Make sure your filter is connected to your inline duct fan's exhaust end before completing the installation. Stuff the prefilter inside of the filter to lengthen the carbon bed's lifespan.
- Page 49 CARBON FILTER CONFIGURATION SET-UP OVERSIZED GROW SPACE Use a dual fan and filter combination inside your grow space to completely scrub away odor in larger grow rooms and tents. Set the secondary filter on the floor and the inline fan on top of it so that the exhaust end points up.
-
Page 50: Maintenance
CARBON FILTER MAINTENANCE REVERSING THE FLANGES To extend the filter's lifespan and utilize its entire carbon bed, rotate the flanges from either end. Remove the screws from the flanges to release them from the filter. Replace the flanges on the other ends and screw them back into place. -
Page 52: Ionboard: Grow Light System
IONBOARD GROW LIGHT SYSTEM... -
Page 53: Product Contents
IONBOARD PRODUCT CONTENTS Advance Grow Advance Grow Advance Grow Advance Grow Advance Grow Tent Kit (2x2) Tent Kit (2x2) Tent Kit (2x4) Tent Kit (3x3) Tent Kit (4x4) COMPACT AC-PKB22 AC-PKB24 AC-PKB33 AC-PKB44 AC-PKA22 IONBOARD S22, IONBOARD S22, IONBOARD S24,... -
Page 54: Installation
IONBOARD INSTALLATION: IONBOARD S22 / S24 STEP 1 Hang the steel hooks over your grow tent’s support beams. STEP 2 While supporting your grow light, bend the steel hooks to insert the ends into the slotted holes of the end caps. Repeat this step on the other side of your grow light. - Page 55 IONBOARD INSTALLATION: IONBOARD S33 / S44 STEP 1 Insert the steel hooks into your grow light's slotted holes of the end caps. STEP 2 Position your grow tent's pole under the steel hooks. Install the pole onto your grow tent's frame. *Two people is recommended for this installation.
- Page 56 IONBOARD INSTALLATION: ROPE CLIP HANGING STEP 1 Insert the steel hooks into your grow light’s slotted holes of the end caps. STEP 2 Loop the rope clip hangers around your grow tent’s support beams. Hook the carabiners into the steel hooks.
-
Page 57: Powering And Setup
IONBOARD POWERING AND SETUP STEP 1 Plug the power cord into an AC power outlet to power your grow light. STEP 2 You may connect an external controller to set smart programming. Plug one end of the controller cord into the LED driver, and the other end into your chosen controller. -
Page 58: Starter Guide
IONBOARD STARTER GUIDE The charts below offer suggested mounting heights and light intensities for each stage in the growing process of your preferred method. These factors will vary based on the plant you are growing. Height refers to distance from the canopy (tip of the plant). HEIGHT Seeding Vegetative... -
Page 59: Programming
IONBOARD PROGRAMMING OFF/ON MODE Turning the knob to UIS switches the grow light off, or passes control over to your smart controller if one is connected. INTENSITY LEVEL Turning the knob from UIS will establish a set light intensity level in 20% increments, up to 100%. -
Page 60: Cloudray: Circulation Fan System
CLOUDRAY CIRCULATION FAN SYSTEM... -
Page 61: Product Contents
CLOUDRAY PRODUCT CONTENTS Advance Grow Advance Grow Advance Grow Advance Grow Advance Grow Tent Kit (2x2) Tent Kit (2x2) Tent Kit (2x4) Tent Kit (3x3) Tent Kit (4x4) COMPACT AC-PKB22 AC-PKB24 AC-PKB33 AC-PKB44 AC-PKA22 CLOUDRAY A6, CLOUDRAY A6, CLOUDRAY A6,... -
Page 62: Installation
CLOUDRAY INSTALLATION STEP 1 Twist to remove the bigger knob piece from the grip clip. Pull the smaller button piece from the vice grip. STEP 2 Slide the grip clip into the swivel as shown. - Page 63 CLOUDRAY INSTALLATION STEP 3 Replace the knob and button on either side of the mounting point as desired. STEP 4 Clamp the fan onto a pole or post.
- Page 64 CLOUDRAY INSTALLATION STEP 5 Plug the fan’s power cord into an AC power outlet to power the fan. Plug the fan into the closest AC outlet to allow for cable slack and avoid cable tension. STEP 6 You may cable manage the cords using the included cable ties or cable mounting set.
-
Page 65: Programming
CLOUDRAY PROGRAMMING FAN SPEED ADJUSTING The clip fan features a single button that cycles through the fan speed from 0-10, indicated by the ring of LED lights below. Press the speed button to increase the fan speed level by one. Pressing the button past speed 10 will cycle the fan speed back to 0. -
Page 66: Controller 69: Universal Infinity System Controller
CONTROLLER 69 UIS MULTI-DEVICE CONTROLLER... -
Page 67: Product Contents
CONTROLLER 69 PRODUCT CONTENTS Advance Grow Advance Grow Advance Grow Advance Grow Advance Grow Tent Kit (2x2) Tent Kit (2x2) Tent Kit (2x4) Tent Kit (3x3) Tent Kit (4x4) COMPACT AC-PKB22 AC-PKB24 AC-PKB33 AC-PKB44 AC-PKA22 CONTROLLER 69, CONTROLLER 69, CONTROLLER 69,... -
Page 68: Powering And Setup
CONTROLLER 69 POWERING AND SETUP STEP 1 Plug your devices’ UIS connectors into the following numbered ports: Port 1 – Inline Fan Port 2 – Grow Light Port 3 – Clip Fan Port 4 – Clip Fan (model AC-PKB44 only). STEP 2 Plug the sensor probe into the controller’s 3.5mm jack. - Page 69 CONTROLLER 69 POWERING AND SETUP STEP 3 Plug your devices’ power cord into an AC power outlet to power them and the controller. STEP 4 You may use the included tie mounts, wood screws, and zip ties to cable manage the cords. Secure the tie mounts onto a surface using the wood screws.
-
Page 70: Mounting
CONTROLLER 69 MOUNTING STEP 1 — WALL MOUNTING Locate a spot free of obstruction and secure the anchors into your wall. Twist the wood screws into the anchors. STEP 2 — WALL MOUNTING Hang the controller by the screws using the holes on the backside. - Page 71 CONTROLLER 69 MOUNTING PLATE MOUNTING Screw the bolts into the slit at the upper half of the plate. Hang the controller by the bolts using the holes on the backside. CORD ARRANGEMENT Cords may be routed into or outside of the kickstand grooves, and through a cut hole behind the controller.
-
Page 72: Universal Infinity System (Uis)
Create independent timers and schedules for customized activation in your desired time frame. Your grow system can be regulated using your controller hub or remotely on the AC Infinity app (paired with compatible controllers), where you will have access to automation programming and climate data. -
Page 73: Uis Compatibility
The expansion dongle will allow you to connect 2 or 4 devices with a single port and can support additional dongles to create more expansion ports (up to 64 units supported with the use of 20 dongles). Intended for exclusive use with AC Infinity controllers built with UIS ports. UIS M - M... -
Page 74: Adding More Devices
ADDING MORE DEVICES The CONTROLLER 69 is built with four ports that enable you to power and control multiple devices at the same time. See image below for a sample configuration. USING THE DONGLE EXTENDING THE CHAIN When using a 2-port or 4-port dongle, plug When plugging additional dongles into Port your first device into Port 1 for the controller 1, all devices plugged into this chain must be... -
Page 75: Programming
CONTROLLER 69 PROGRAMMING 1. PORT BUTTON 2. MODE BUTTON 3. SETTING BUTTON Cycles through up to four Cycles through the controller’s Cycles through the connected devices. Each modes: OFF, ON, AUTO (4 controller’s settings: device is programmed triggers), TIMER to ON, TIMER DISPLAY, CLOCK, independently, or together to OFF, CYCLE (ON and OFF),... - Page 76 CONTROLLER 69 PROGRAMMING PORTS Pressing the port button will cycle through the controller’s available ports: ALL, 1, 2, 3, and 4. Dot indicates the current device. No digit is displayed if a device is not plugged into the corresponding port. The controller is pre-programmed with the following settings: Port 1 –...
- Page 77 CONTROLLER 69 PROGRAMMING CONTROLLER MODES Pressing the mode button will cycle through the controller’s available programming modes: OFF, ON, AUTO (4 triggers), TIMER TO ON, TIMER TO OFF, CYCLE (On and Off), and SCHEDULE (On and Off). OFF MODE (ALSO SETS MINIMUM LEVEL) Your devices will not run while in this mode.
- Page 78 CONTROLLER 69 PROGRAMMING AUTO MODE (HIGH TEMPERATURE TRIGGER) Pressing the up or down button sets the high temperature trigger. The devices will activate if the probe’s reading meets or exceeds this threshold. Once triggered, the devices will gradually ramp up to the level set in ON mode. If the probe’s reading falls below this Any of the four trigger points can activate while trigger point, the devices will gradually...
- Page 79 CONTROLLER 69 PROGRAMMING AUTO MODE (HIGH HUMIDITY TRIGGER) Pressing the up or down button sets the high humidity trigger. The devices will activate if the probe’s reading meets or exceeds this threshold. Once triggered, the devices will gradually ramp up to the level set in ON mode. If the probe’s reading falls below this Any of the four trigger points can activate while trigger point, the devices will gradually...
- Page 80 CONTROLLER 69 PROGRAMMING TIMER TO ON MODE Pressing the up or down button sets a countdown time. Once the timer ends, the devices will trigger to run at the level set in ON Mode. If there is a level set in OFF Mode, the devices will run at that level during the countdown.
- Page 81 CONTROLLER 69 PROGRAMMING CYCLE MODE (ON AND OFF) Set an on duration and an off duration for the devices to cycle through continuously. Press the up or down button to first set a duration for the devices to activate. Then press the mode button again and set a duration for the devices to deactivate.
- Page 82 CONTROLLER 69 PROGRAMMING SCHEDULE MODE (ON AND OFF) Sets an on clock-time and an off clock- time schedule for the devices to follow daily. Press the up or down button to first set up an on clock-time to trigger ON mode, then press the mode button to set an off clock-time to trigger OFF mode.
- Page 83 CONTROLLER 69 PROGRAMMING CONTROLLER SETTINGS Pressing the setting button will cycle through the controller’s available settings: DISPLAY, °F/ °C, CLOCK, CALIB. T°, CALIB. H%, TRANS. T°, and TRANS. H%. DISPLAY SETTING Adjusts the display brightness and auto-dimming. Press the up or down button to cycle through levels 1, 2, 3, A2 and A3;...
- Page 84 CONTROLLER 69 PROGRAMMING °F/°C SETTING Changes the displayed units to Fahrenheit or Celsius. Press the up or down button to cycle through F and C. All displayed units will automatically convert when adjusting this setting. CLOCK SETTING Adjusts the current clock time. Press the up or down button to increase or decrease the time.
- Page 85 CONTROLLER 69 PROGRAMMING CALIBRATION TEMPERATURE SETTING Adjusts the temperature reading the sensor probe is measuring. Press the up or down button to increase or decrease the data figure in 2°F (or 1°C) increments. The calibration cycle ranges from -20°F to 20°F (or -10°C to 10°C) and will be applied to the sensor probe’s measurements.
- Page 86 CONTROLLER 69 PROGRAMMING TRANSITION TEMPERATURE SETTING Customizes how the device will ramp up in levels when triggered ON by temperature in AUTO MODE. Set a transition threshold to determine how much the probe temperature would need to surpass your trigger point for the device to increase in level by one.
- Page 87 CONTROLLER 69 PROGRAMMING TRANSITION HUMIDITY SETTING Customizes how the device will ramp up in levels when triggered ON by humidity in AUTO MODE. Set a transition threshold to determine how much the probe humidity would need to surpass your trigger point for the device to increase in level by one.
- Page 88 CONTROLLER 69 PROGRAMMING ALERT ICONS The alert icons are displayed at the top of the screen. Icons may flash when the controller signals an alert to notify you of any triggered function or alarm. ADVANCE PROGRAMMING Displays when an advance program set in the app is active. "ADV." will appear and override the controller if an automation program is in use.
- Page 89 CONTROLLER 69 PROGRAMMING BLUETOOTH Appears when the physical controller is connected to the app via Bluetooth. DISPLAY LOCK ALERT Displays when you lock the controller. The icon will flash and beep if you attempt to adjust the controller while it is still locked. TEMPERATURE/ HUMIDITY ALARM Flashes and beeps with alarm if the temperature/ humidity meet the trigger point set in the app.
-
Page 90: Maximum And Minimum Settings
CONTROLLER 69 MAXIMUM AND MINIMUM SETTINGS MAXIMUM LEVEL You can determine what level the device ON MODE will run at when its triggered ON. This can be set in ON MODE. The level you leave that mode in will be used as the MAX LEVEL level the device will run at when triggered ON. -
Page 91: Other Settings
CONTROLLER 69 OTHER SETTINGS FACTORY RESET Holding the mode, up, and down buttons together for 5 HOLD + seconds will reset your controller and restore factory settings. This clears all user parameters in each controller mode and setting. CONTROLLER LOCK Holding the setting button will lock the controller in your current mode. -
Page 92: Download The App
92-94 to pair your controller with the app. QUICK TIP FOR EASY ACCESS Open the smart phone camera and scan the QR code below to download the AC Infinity app. Please visit our website at www.acinfinity.com for more information on the AC Infinity app. -
Page 93: Add A Device
CONTROLLER 69 ADD A DEVICE SETUP AND PAIRING Power your device on before pairing your device with the app. Refer to pages 68-69 for more information regarding controller setup. Tap on the “+” tab to To launch the app, tap on the “Smart add your smart device. - Page 94 CONTROLLER 69 ADD A DEVICE Select CONTROLLER 69 to Hold the port button for 5 seconds begin pairing. to activate Bluetooth. Wait for the Bluetooth icon to start flashing on your controller’s screen.
- Page 95 CONTROLLER 69 ADD A DEVICE Tap DONE button to complete the Your controller will appear in your pairing process. smart device with a unique ID. E-E000E DONE...
-
Page 96: Frequently Asked Questions
What devices are compatible with the CONTROLLER 69? All AC Infinity devices that contain a UIS connector are compatible. If your AC Infinity device has a 4-pin Molex connector and an EC-Motor, it may still be compatible with the use of an UIS adapter to convert its connector to fit with the controller. - Page 97 Please refer to page 74 for details on adding more fan units. Will I be able to use this controller with my own fan? The CONTROLLER 69 is only compatible with AC Infinity fans that use EC-motors. Does the controller retain its settings after power is shut off? Yes.
-
Page 98: Warranty
WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues. - Page 100 www.acinfinity.com...
