GETTING STARTED GUIDE

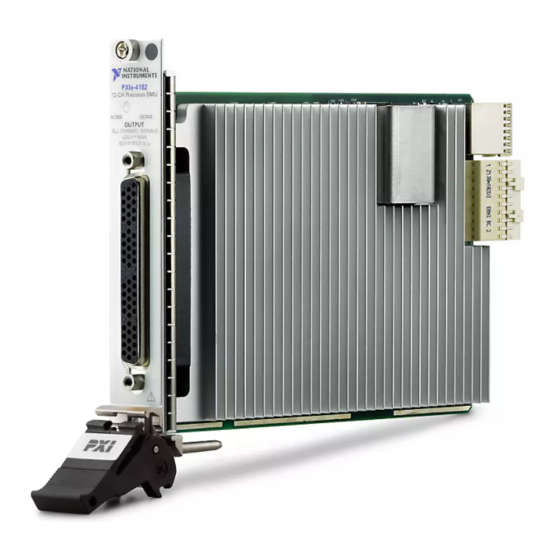

PXIe-4162
PXIe, 12-Channel, ±24 V, 100 mA PXI Source Measure Unit
This document explains how to install, configure, and test the PXIe-4162. The PXIe-4162
ships with NI-DCPower driver software, which you can use to program the module.
Note
Before you begin, install and configure your chassis and controller.
Contents
Verifying the System Requirements..........................................................................................1
Unpacking the Kit..................................................................................................................... 1
Other Equipment....................................................................................................................... 3
Preparing the Environment....................................................................................................... 3
Installing the Software.............................................................................................................. 4
Installing the PXIe-4162........................................................................................................... 4
PXIe-4162 Pinout and LEDs.....................................................................................................6
Configuring the PXIe-4162 in MAX...................................................................................... 12
Self-Calibrating the PXIe-4162.............................................................................................. 13
Programming the PXIe-4162.................................................................................................. 14
Troubleshooting...................................................................................................................... 16
What Should I Do if the PXIe-4162 Doesn't Appear in MAX?......................................16
Why Is the ACCESS LED Off When the Chassis Is On?...............................................17
What Should I Do if the PXIe-4162 Fails the Self-Test?................................................17
Where To Go Next.................................................................................................................. 18
Worldwide Support and Services............................................................................................ 18

Verifying the System Requirements

To use the NI-DCPower instrument driver, your system must meet certain requirements.
Refer to the product readme, which is available on the driver software media or online at
ni.com/manuals, for more information about minimum system requirements, recommended
system, and supported application development environments (ADEs).

Unpacking the Kit

Refer to the following figure to identify the contents of the PXIe-4162 kit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXIe-4162 and is the answer not in the manual?

Questions and answers

Related Manuals for National Instruments PXIe-4162

Summary of Contents for National Instruments PXIe-4162

  • Page 1: Table Of Contents

    GETTING STARTED GUIDE PXIe-4162 PXIe, 12-Channel, ±24 V, 100 mA PXI Source Measure Unit This document explains how to install, configure, and test the PXIe-4162. The PXIe-4162 ships with NI-DCPower driver software, which you can use to program the module. Note Before you begin, install and configure your chassis and controller.
  • Page 2 Do not install a module if it appears damaged in any way. Unpack any other items and documentation from the kit. Store the module in the antistatic package when the module is not in use. 2 | ni.com | PXIe-4162 Getting Started Guide...

  • Page 3: Other Equipment

    Other Equipment There are several required items not included in your PXIe-4162 kit that you need to operate the PXIe-4162. Your application may require additional items not included in your kit to install or operate your PXIe-4162. Required Items •...

  • Page 4: Installing The Software

    To prevent damage to the PXIe-4162 caused by ESD or contamination, handle the module using the edges or the metal bracket. The PXIe-4162 is a single-slot module with one backplane connector. The module may be installed into any PXI Express-compatible slot.
  • Page 5 5. PXI Express Peripheral Slot 3. PXI Express Hybrid Peripheral Slot PXIe-4162 modules can be placed in PXI Express peripheral slots, PXI Express hybrid peripheral slots, or PXI Express system timing slots. Touch any metal part of the chassis to discharge static electricity.

  • Page 6: Pxie-4162 Pinout And Leds

    Why Is the ACCESS LED Off When the Chassis Is On? on page 17 PXIe-4162 Pinout and LEDs Front Panel Refer to the following figures and tables for information about the PXIe-4162 front panel connector pins, channels, and LEDs. PXIe-4162 12-CH Precision SMU...
  • Page 7 Refer to the driver software for possible sources. The device will not operate until the error is cleared and/or the device is reset. Pinout The following figure and table provide detailed signal information for the PXIe-4162 connector. PXIe-4162 Getting Started Guide | © National Instruments | 7...
  • Page 8 CH9 Guard CH9 Output HI CH10 Output HI CH9 Sense LO CH9 Sense HI CH10 Sense HI CH11 Guard CH10 Guard CH11 Output HI CH11 Sense LO CH10 Sense LO CH11 Sense HI 8 | ni.com | PXIe-4162 Getting Started Guide...
  • Page 9 Guard Output HI Sense HI Sense LO Guard Output HI Sense HI Sense LO Guard Guard terminals are not supported in the highest current ranges: 60 mA or 100 mA. PXIe-4162 Getting Started Guide | © National Instruments | 9...
  • Page 10 Sense LO Guard Output HI Sense HI Sense LO Guard Output HI Sense HI Sense LO Guard Output HI Sense HI Sense LO Guard A, B, C, D 0 to 11 Output LO 10 | ni.com | PXIe-4162 Getting Started Guide...
  • Page 11 Not used Void Cable Bundles The PXIe-4162 has 12 channels organized into four cable bundles (A, B, C, D) for use with associated cable accessories. The following figure and table provide detailed bundle information. PXIe-4162 Getting Started Guide | © National Instruments | 11...

  • Page 12: Configuring The Pxie-4162 In Max

    If you do not see your module listed, press <F5> to refresh the list of installed modules. If the module is still not listed, power off the system, ensure the module is correctly installed, and restart. 12 | ni.com | PXIe-4162 Getting Started Guide...

  • Page 13: Self-Calibrating The Pxie-4162

    • After first installing the PXIe-4162 in a chassis • After any module that is in the same chassis as the PXIe-4162 is installed, uninstalled, or moved • When the PXIe-4162 is in an environment where the ambient temperature varies or the PXIe-4162 temperature has drifted more than ±5 °C from the temperature at the last self-...

  • Page 14: Programming The Pxie-4162

    Programming the PXIe-4162 You can generate signals interactively using InstrumentStudio or you can use the NI-DCPower instrument driver to program your device in the supported ADE of your choice. 14 | ni.com | PXIe-4162 Getting Started Guide...
  • Page 15 • From Measurement & Automation Explorer (MAX), select a device and then click Test Panels..This launches InstrumentStudio and runs a soft front panel for the device you selected. PXIe-4162 Getting Started Guide | © National Instruments | 15...

  • Page 16: Troubleshooting

    Troubleshooting If an issue persists after you complete a troubleshooting procedure, contact NI technical support or visit ni.com/support. What Should I Do if the PXIe-4162 Doesn't Appear in MAX? In the MAX configuration tree, expand Devices and Interfaces. Expand the Chassis tree to see the list of installed hardware, and press <F5> to refresh the list.

  • Page 17: Why Is The Access Led Off When The Chassis Is On

    LED. Notice Apply external signals only while the PXIe-4162 is powered on. Applying external signals while the module is powered off may cause damage. Disconnect any signals from the module front panels.

  • Page 18: Where To Go Next

    NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. NI also has offices located around the world. For support in the United States, create your service request at ni.com/support or dial 1 866 ASK MYNI (275 6964). For 18 | ni.com | PXIe-4162 Getting Started Guide...
  • Page 19 United States, visit the Worldwide Offices section of ni.com/niglobal access the branch office websites, which provide up-to-date contact information. PXIe-4162 Getting Started Guide | © National Instruments | 19...
  • Page 20 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
