Middle Atlantic Products MFR-FANKIT-2 Installation Instructions

THANK YOU
Thank you for purchasing the (I)MFR-FANKIT-2. Please read these
instructions thoroughly before installing/operating this product.

PRODUCT FEATURES

- Extends equipment life.
- Quietly removes heat directly from the source.
- 50 CFM Cooling Capacity

HARDWARE KIT INCLUDES

QTY DESCRIPTION
2 Fan
8 Push Rivets
1 Power Supply
Self-Adhesive Cable Mounts
5
5 Wire Ties

INSTALLATION

1) Remove rear panel from rack. (FIGURE A)
2) Install fans using eight (8) push rivets as shown (4 per fan).
(FIGURE B)
NOTE: Air flows in direction of arrow on fan housing.
3) Connect power cord to power supply.
4) If applicable, select and install appropriate
wall plug adapter included with the
power supply.
NOTE: Adapter must SNAP into place
to be connected to the power supply.
5) Plug power supply into AC outlet.
(FIGURE B)
6) Re-install rear panel.
7) Bundle wiring together with provided
wire ties and secure to self-adhesive
cable mounts.
Installation Instructions
Mobile Furniture Rack Fan Kit
(I)MFR-FANKIT-2

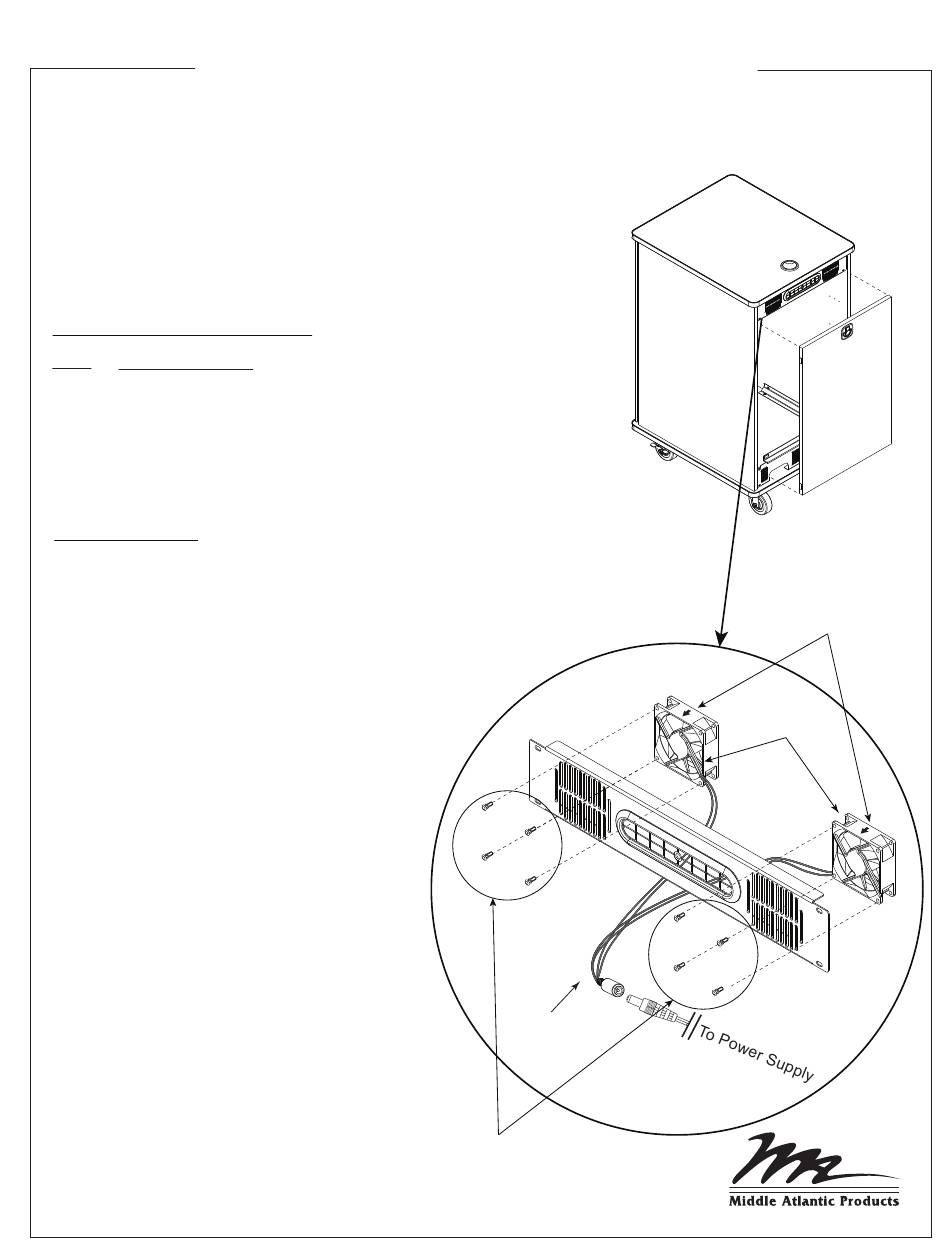

FIGURE A
Power Cord
FIGURE B
Push Rivets
(4 Per Side)
Air Flow Arrow
Fans (2)
I-00563 Rev A
