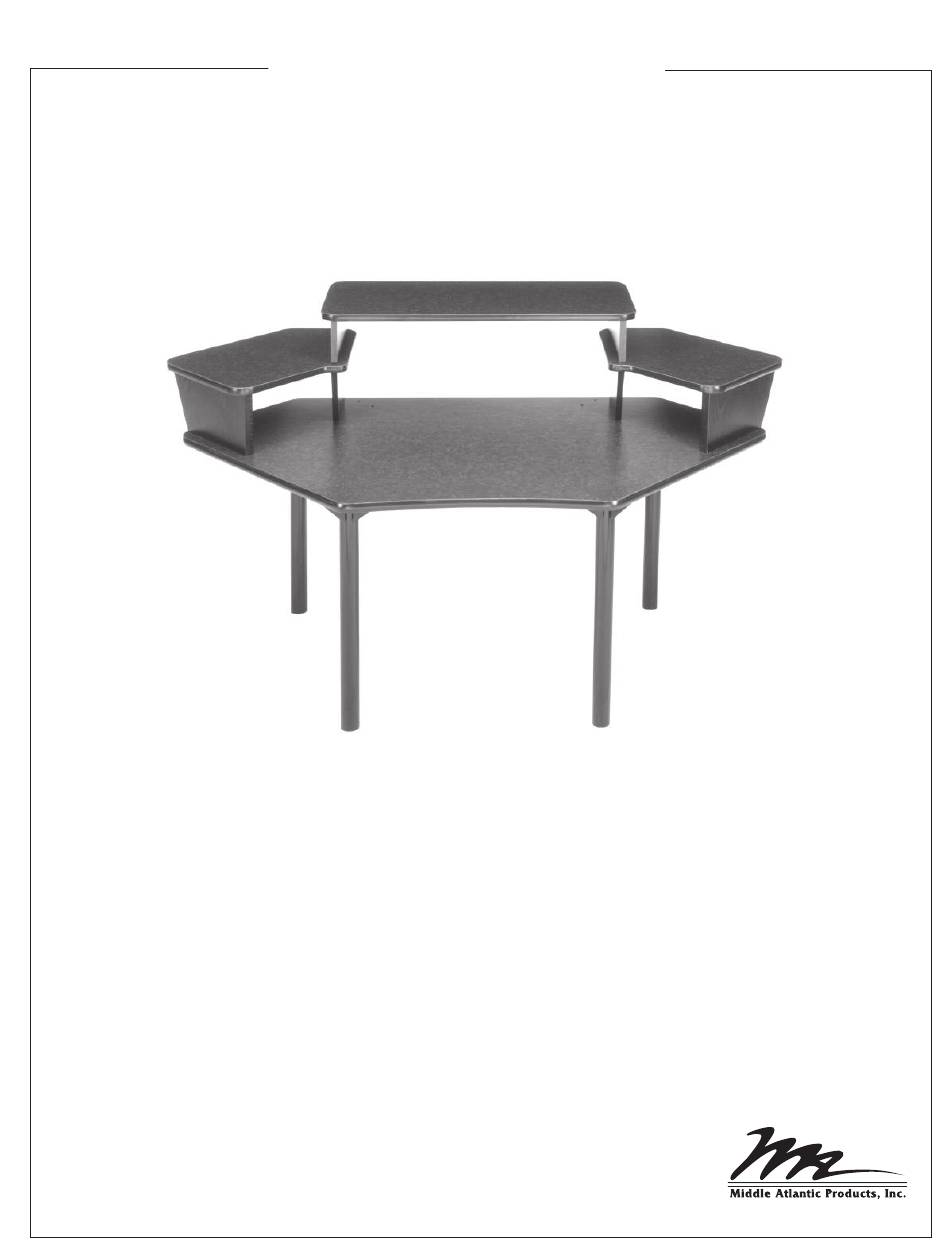

Middle Atlantic Products MDV Series Instruction Sheet

Corner desk with overbridge

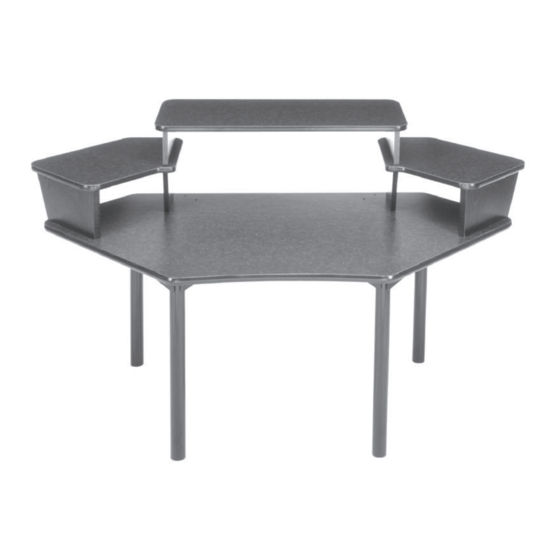

MDV-CNR3 CORNER DESK

THANK YOU

Thank you for purchasing the MDV-CNR3 Series Corner Desk with Overbridge. Please read

these instructions thoroughly before installing / assembling this product.

PRODUCT FEATURES

- Includes a three piece overbridge designed to accommodate digital audio mixers with

tall meter bridges.

- Overbridge is user-configurable in two ways: 11 1/4' inside clearance or 16 1/2" inside height

clearance.

Instruction Sheet

MDV Series

WITH OVERBRIDGE

I-02352

Rev H

Table of Contents

Do you have a question about the MDV Series and is the answer not in the manual?

Page 1 Instruction Sheet MDV Series MDV-CNR3 CORNER DESK WITH OVERBRIDGE THANK YOU Thank you for purchasing the MDV-CNR3 Series Corner Desk with Overbridge. Please read these instructions thoroughly before installing / assembling this product. PRODUCT FEATURES - Includes a three piece overbridge designed to accommodate digital audio mixers with tall meter bridges.
Page 2 TOOLS REQUIRED #2 Phillips Head Driver ASSEMBLY 1) Attach the brackets to the desk as shown using large screws (7 screws per leg). (FIGURE A) 2) Insert the leg into the bracket, lining up the opening in FIGURE A the leg with the opening in the bracket. (FIGURE A) 3) Tighten all brackets using the enclosed hex key ADJUST LEVELING FEET AS NEEDED...
Page 3 ASSEMBLY (Continued) 5) Install the studs in the overbridge tops as shown. (FIGURE C) FIGURE C 6) Install the 1/2 turn fasteners. NOTE: The arrow points toward the stud. (Indicates unlocked position) Second set of risers 7) Install the 1st set of risers to the desk and (Your choice - 3-1/2”...
Page 4 WARRANTY Middle Atlantic Products (the "Company") warrants the MDV-CNR3 to be free from defects in material or workmanship under normal use and conditions for a period of (7) years from the date of shipment by the Company. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
