DEMO MANUAL DC1954A

Quick start proceDure

The DC1954A is easy to set up to evaluate the performance
of the LTC6954. Follow the procedure below.
The DC590 and LTC6954_GUI application are required to
control the DC1954A through a personal computer (PC).
DC590 Configuration
Place the DC590 jumpers in the following positions (refer
to Figure 2):
JP4: EE Must be in the EN position.
JP5: ISO ON must be selected.
JP5: SW ON must be selected.
JP6: VCCIO 3.3V or 5V must be selected. This sets the
SPI port to 3.3V or 5V operation, 3.3V
operation is recommended.
2
Connect the DC590 to one of your computer's USB ports
with the included USB cable.
LTC6954_GUI Installation
The LTC6954_GUI software is used to communicate with
the LTC6954. It uses the DC590 to translate between USB
and SPI-compatible serial communications formats. The
following are the LTC6954_GUI system requirements:
• Windows Operating System: Windows XP, Windows
• Microsoft .NET 3.5 SP1 or later
• Windows Installer 3.1 or later
• Linear Technology's DC590 hardware

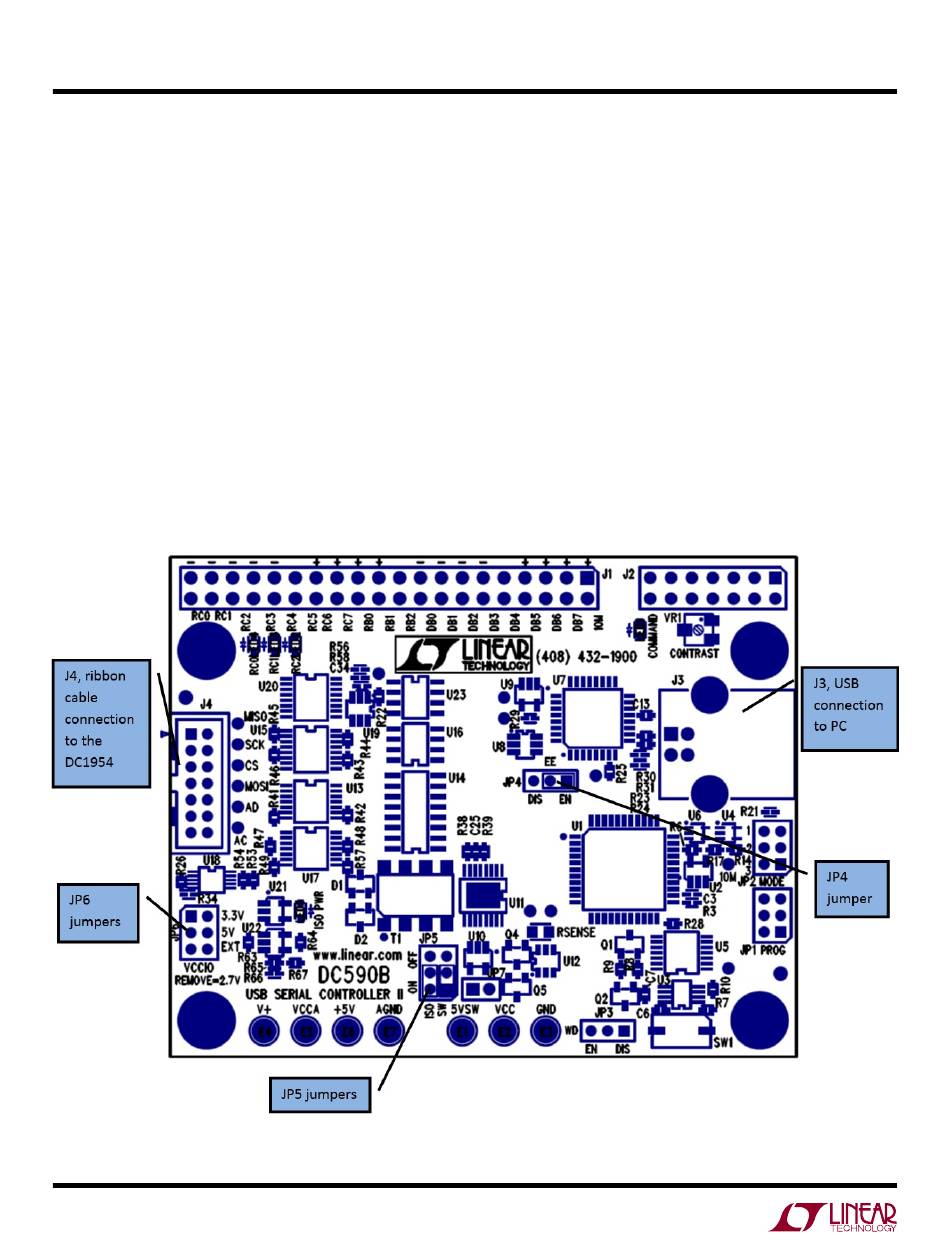

Figure 2. DC590 Jumper and Connector Locations
2003 Server, Windows Vista, Windows 7
dc1954af
