ASSEMBLY & OPERATING INSTRUCTIONS
WARNING:
Read this Owner's manual carefully and be sure
your pellet grill is properly assembled, installed
and maintained. Failure to follow these instructions
could result in serious injury and/or property
damage. This pellet grill is intended for outdoor
use only and is not intended to be installed in or on
recreational vehicles or boats.
Note to Installer
Leave this Owner's Manual with the customer after
delivery and/or installation.
MONUMEMT PELLET GRILL
USE AND CARE MANUAL
Chaparral 700
MGF NO: S2261604M/86030
Scan and visit:
Monumentgrills.co
m
Note to Consumer
Leave this Owner's Manual in a convenient place
for future reference.
Customer Service Helpline:
For parts ordering, call:
1- 800-530-9133
MFG No.: 86030(S2261604M)
UPC No.:856597007706
‐ 1 ‐
Parts
Assembly
Safety Rules
Use and Care
Troubleshooting
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Monument Grills Chaparral 700
Summary of Contents for Monument Grills Chaparral 700

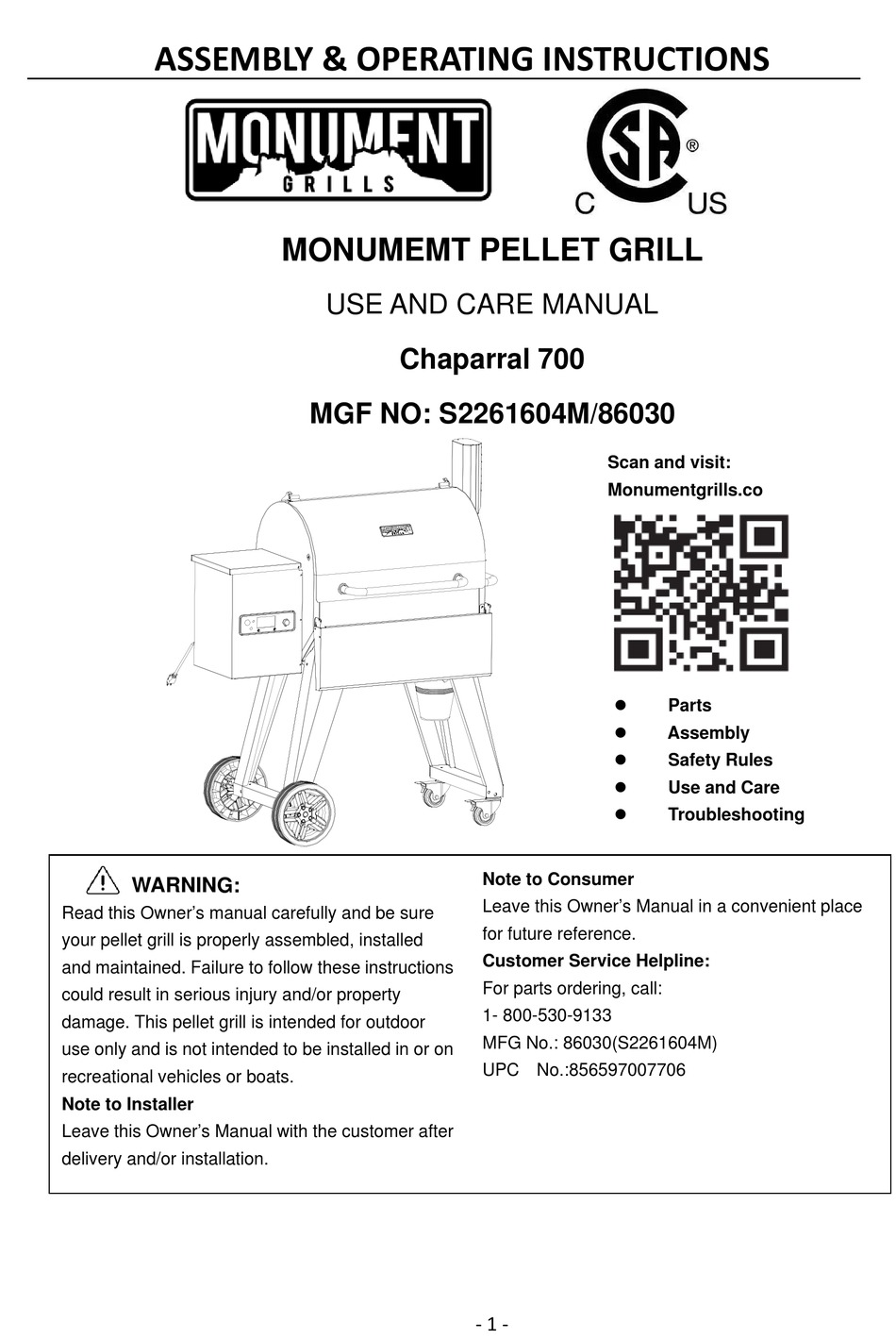

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MONUMEMT PELLET GRILL USE AND CARE MANUAL Chaparral 700 MGF NO: S2261604M/86030 Scan and visit: Monumentgrills.co Parts Assembly Safety Rules Use and Care Troubleshooting Note to Consumer WARNING: Leave this Owner’s Manual in a convenient place Read this Owner’s manual carefully and be sure...
-
Page 2: Table Of Contents
Table of Contents 1. Safety warning --------------------------------------------------------------3 2. Certificates--------------------------------------------------------------------4 3. Explosion view---------------------------------------------------------------5 4. Parts list------------------------------------------------------------------------6 5. Hardware-----------------------------------------------------------------------7 ---------------------------------------------------------------7 Assembly steps --------------------------------------------------------21 7. Use of the Pellet Gril- ----------------------------------------------24 Button Function Description 9. Troubleshooting ------------------------------------------------------------26 ------------------------------------------------------26 Pellet Hopper Clean-out ‐ 2 ‐... -
Page 3: Safety Warning
1. Safety Warning ※Please read the whole instruction carefully before installing and using the pellet grill and install and use it as required. The company will not be responsible for any property loss, personal injury, or even death caused by failure to follow the instructions. ※CARBON MONOXIDE HAZARD! Burning wood or charcoal produces carbon monoxide, which has no odor and can cause death if burned in enclosed areas. -
Page 4: Certificates
Certificates MONUMENT GRILLS Product name Pellet Grill S2261604M Model Number UL 2728A-2019 Fuel input rating 1.55Ib/H ULC/ORD-C2728-19 Electrical Rate 120V/60Hz/0.25 kW Outdoor Use Only Read the instructions before using the appliance Warning : Accessible parts may be very hot. Keep young children away... -
Page 5: Explosion View
3.Exploded View ‐ 5 ‐... -
Page 6: Parts List
4. Part list Seq. Appellation Material Code Appellation Material Code Main Lid D30X005077 Burning Cup D010016542 Flame Tamer D30M000855 Pellet Tube A02122276 Cooking Grid Hanger A02122225 Auger A02120430 Main Lid Handle D30X005550 Auger Motor A02120434 Side Shelf Support Main Lid Hinge-Right D30P000238 D010024528 Front Leg-Left... -
Page 7: Hardware
5. Hardware 6. Assembly steps Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specific assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill. - Page 8 Install Part No.17 and Part No.18 to one side leg with screw C and A washer Install other side leg with C screw and A washer ‐ 8 ‐...
- Page 9 Install Part No.15 onto the cart both Sides with C screw and A washer Insert Part No.19 onto Part No.18 ‐ 9 ‐...
- Page 10 Install wheels onto Part.17 as shown Put the whole firebox onto the cart assembly (Big wheels should be on your left side) ‐ 10 ‐...
- Page 11 Screw the grill body and cart tightly with C screw and A washer Install Part No.7 with C screw ‐ 11 ‐...
- Page 12 Connect control box temperature sensor with firebox And install whole control box to firebox Screw the control box to firebox tightly with E/K screws ‐ 12 ‐...
- Page 13 Install main lid handle and Part No 44 Install Part No. 35 with B screw And install D hanger onto the grill body with G screw ‐ 13 ‐...
- Page 14 Install Part No. 12 with B screw And install D hanger onto the grill body with G screw Install Part No.3. Need hold this Under D hanger by hand ‐ 14 ‐...
- Page 15 Install stack with E/K screw (Heat Insulation Foam should be put between stack and firebox) Put the S hook onto the handle, and install the handle onto grill body with E/K screws ‐ 15 ‐...
- Page 16 Install Part No.13，Part No.29 with B screw Install front shelf ‐ 16 ‐...
- Page 17 Install Part No.2 onto firebox Heat Insulation Board Put Part No.43 onto Part No.35 and Part No.12 ‐ 17 ‐...
- Page 18 Put warming rack and cooking grid onto the hanger Hang the Oil Bucket onto Part No.12 ‐ 18 ‐...
- Page 19 Install Part No.41 with F screw Fix Part No.37 with F screw ‐ 19 ‐...
- Page 20 Insert the Part No.45 onto the Control panel and firebox ‐ 20 ‐...
-
Page 21: Use Of The Pellet Gril
7. Use of the Pellet Grill 7.1 Placement of the Device The pellet grill should be placed in outdoor open and ventilate area, and keep at least the distance shown in the picture with fixed facilities around and keep far away from flammable and combustible materials. - Page 22 7.5 Ignition Instruction WARNING: Before placing pellets into the fire pot, make sure the grill is NOT on, and Fire Pot is NOT hot to prevent possible skin burn. 1. Security Check before powering on, make sure there is no damp or bare wire in the socket and plug.
- Page 23 To safely tun off the grill follow the steps below.: 1) Open the upper cover of the control box, remove the residual fuel from the box and keep it properly for next use. 2) Let the grill continue to work 5 - 10 minutes to discharge the fuel in the feeder. 3) Next, click Power button to turn off the device, but do not unplug the power right now.
-
Page 24: Button Function Description
8. Button Function Description This is the power button of the device (Power indication function included)， The indication is off when the device is off， The indication of blue light is on when the device is on This button is the unit switch button. The Fahrenheit temperature is displayed by default. When it is on, it can display Celsius temperature, and it can be switched back to Fahrenheit. - Page 25 Actual temperature for grill body probe Electrical Parameters (1) Input Voltage：AC110V ~ AC120V 60Hz (2) Max Power：250W (3) Motor Power：25W ±10% (4) Fan Power：25W ±10% (5) Ignitor power：200W ±10% (6) Probe type：PT1000 8.2 wiring Diagram Red white: Present transmission motor Yellow white: Present fan motor Purple white: Present ignitor probe Black white: Present power...
-
Page 26: Troubleshooting
start 2nd feeding, off 15s and on 30s feeding, temperature less than 135℉ 6 min later, startErL protection. 9.Trouble Shooting Failure description Failure diagnosis troubleshooting Ignition fails There is fuel in the fire cup but it is Turn the dial off and on and try to ignite not ignited again No fuel in the fire cup because the... - Page 27 ‐ 1 ‐...
