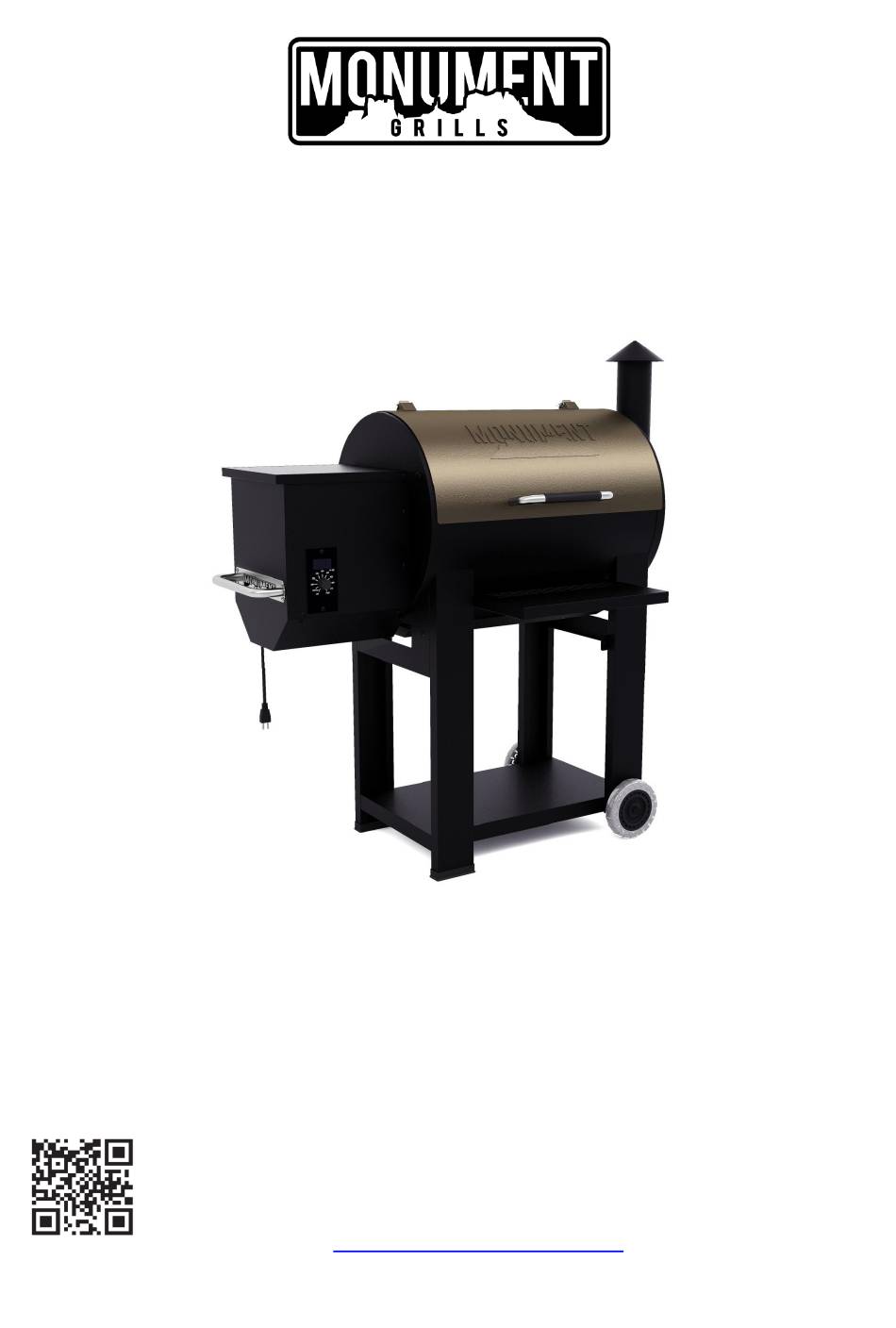

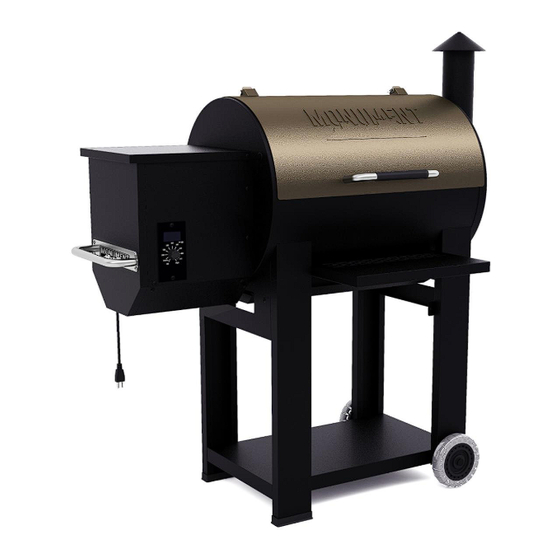

MONUMEMT PELLET GRILL
USE AND CARE MANUAL
89679
Please read this entire manual before installation and use of this pellet fuel-burning appliance.
Failure to follow these instructions could result in property damage, bodily injury or even death.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
THIS PELLET GRILL IS DESIGNED FOR OUTDOOR USE ONLY
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WWW.MONUMENTGRILLS.COM
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the 89679 and is the answer not in the manual?

Questions and answers

Related Manuals for Monument Grills 89679

Summary of Contents for Monument Grills 89679

  • Page 1 MONUMEMT PELLET GRILL USE AND CARE MANUAL 89679 Please read this entire manual before installation and use of this pellet fuel-burning appliance. Failure to follow these instructions could result in property damage, bodily injury or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 2: Table Of Contents

    Table of Contents 1. Safety warning ------------------------------------------------------------------1 2. Certificates ----------------------------------------------------------------------2 3. Explosion view -----------------------------------------------------------------3 4. Parts list--------------------------------------------------------------------------4 5. Hardware ------------------------------------------------------------------------4 6. Mounting steps -----------------------------------------------------------------4 7. Use of the Pellet Grill --------------------------------------------------------15 8. Trouble Shooting -------------------------------------------------------------18 - 2 -...

  • Page 3: Safety Warning

    1. Safety Warning ※Please read the whole instruction carefully before installing and using the pellet grill, and install and use it as required. The company will not be responsible for any property loss, personal injury or even death caused by failure to follow the instructions. ※About carbon monoxide poisoning: All grills or cooking utensils will generate organic gas (such as monoxide) when burning materials (such as wood, gas, or carbon, etc.).

  • Page 4: Certificates

    2. Certificates - 2 -...
  • Page 5 3. Exploded View - 3 -...

  • Page 6: Parts List

    4. Part list Seq. Material code Appellation Seq. Material code Appellation A0212804 Cooking grid,A A02120435 Fan motor D010016445 Oil guide plate A02120436 Igniter probe D010018103 Chimney cover A02120430 Auger assembly D010014839 Chimney assembly A02120434 Auger motor A02120416 Chimney insulation A02120442 Control panel cotton D010016436...
  • Page 7 grill giving specific assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill. Caution: Although we take every effort to ensure that the assembly process is as easy as possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if improperly handled during assembly procedures.
  • Page 8 ② ① A ： 4PCS - 6 -...
  • Page 9 A ： 4PCS - 7 -...
  • Page 10 The screws have been pre assembled A ： 2PCS - 8 -...
  • Page 11 B ： 2PCS A ： 8PCS C ： 8PCS - 9 -...
  • Page 12 D ： 4PCS A ： 2PCS C ： 2PCS - 10 -...
  • Page 13 The screws have been pre assembled ① ② B ： 2PCS D ： 4PCS - 11 -...
  • Page 14 The screws have been pre assembled ① ② A ： 5PCS Please pay attention C ： 5PCS to protect the temp- erature probe during installation to prevent damage - 12 -...
  • Page 15 A ： 3PCS ① ② - 13 -...
  • Page 16 - 14 -...
  • Page 17 - 15 -...

  • Page 18: Use Of The Pellet Grill

    7. Use of the Pellet Grill 7.1 Placement of the Device The pellet grill should be placed in outdoor open and ventilate area, and keep at least the distance shown in the picture with fixed facilities around and keep far away from flammable and combustible materials.
  • Page 19 7.2 Selection of Fuels Standard wood pellet fuel should be selected for the grill, and this kind of fuel can be bought in surrounding stores. Users can buy fuels of different materials according to your own preference, but 1.2”x0.3”. If the fuel pellets are too large, the the granularity of fuel should not be more than device may be extinguished due to poor feeding.
  • Page 20 7.5 Turn off the Device After the barbecue finishes, please safely turn off the device: First, please open the upper cover of the control box, remove the residual fuel from the box and keep it properly for next use; Then, let the device continue to work 5 to ten minutes to discharge the fuel in the feeder; Next, turn the knob to the OFF position, but do not unplug the power right now.

  • Page 21: Trouble Shooting

    8. Trouble shooting Failure description Failure diagnosis Troubleshooting The device ignition fails There is fuel in the fire cup but Turn the dial off and on and try to ignite it is not ignited again No fuel in the fire cup because Change to smaller fuel the fuel pellet is too large to enter the feeder...
