801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: service@sdcsecurity.com

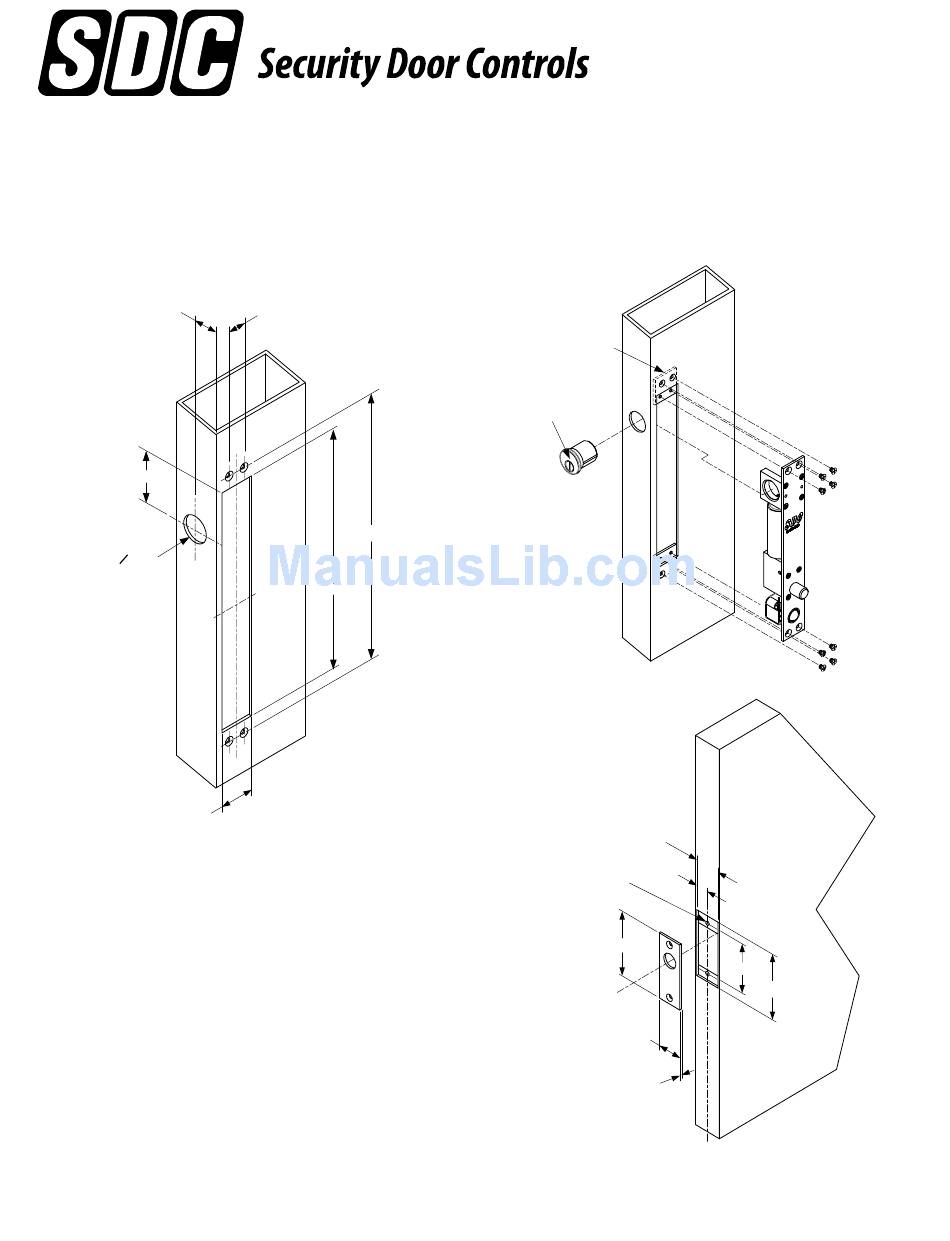

ALUMINUM FRAME MOUNT CONFIGURATION
.865
1.755
O1.150
1.500
NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
TECHNICAL DATA (FOR STANDARD UNIT)
FACE PLATE: 10-1/2" x 1-1/2" X 1/8"
STRIKE: 4" x 1-1/2" x 1/8"
ID REQUIREMENTS: 10-1/2" x 1-1/2" x 1-1/2"
BOLT: 5/8" DIA. STAINLESS STEEL
BOLT THROW: 5/8"
P:\INSTALLATION INST\Electric Bolt Locks\Temp-1291A\Temp-1291ADMR.vsd
1291ADMR
INSTALLATION INSTRUCTIONS/TEMPLATE
MECHANICAL RELEASE
.750
11.605
10.500
REV A
(8X) TAP TABS
FOR #10-32
CYLINDER NOT
INCLUDED
(2X) TAP FOR #10-32
4.00
L C OF BOLT
09-17
Page 1
Door Preparation
1.51
.750
3.25
4.00
1.50
.125
L C OF DOOR
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC 1291 ADMR Spacesaver
Summary of Contents for SDC 1291 ADMR Spacesaver
- Page 1 801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com 1291ADMR INSTALLATION INSTRUCTIONS/TEMPLATE MECHANICAL RELEASE ALUMINUM FRAME MOUNT CONFIGURATION .865 .750 (8X) TAP TABS FOR #10-32 CYLINDER NOT INCLUDED 1.755 11.605 O1.150 10.500 Door Preparation 1.500 1.51 .750 (2X) TAP FOR #10-32...
- Page 2 HOLLOW METAL FRAME MOUNT CONFIGURATION .865 .750 (8X) TAP TABS FOR #10-32 CYLINDER NOT INCLUDED 1.755 11.605 O1.150 10.500 Door Preparation 1.51 .750 1.500 (2X) TAP FOR #10-32 4.00 3.25 4.00 L C OF BOLT NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO 1.50 CHANGE WITHOUT NOTICE.
- Page 3 DOOR MOUNT CONFIGURATION .865 .750 (8X) TAP TABS FOR #10-32 CYLINDER NOT INCLUDED 1.755 O1.150 11.605 10.500 Frame Preparation 1.51 .750 1.500 4.00 3.25 (2X) TAP #10-32 4.00 BOLT NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 1.50 TECHNICAL DATA (FOR STANDARD UNIT) FACE PLATE: 10-1/2"...
- Page 4 INSTRUCTIONS FOR REVERSING THE CYLINDER Cylinder Locking Remove the Cylinder locking set screw, and screw the Set Screw Cylinder out of the Mounting Block. Remove the four screws securing the Mounting Block and the Sliding Link Block. Mounting Block Sliding Link Block Reverse the components and re-install as shown.
- Page 5 LOCK WIRING Select 24VDC OR 12VDC Configuration, and use provided pigtail connector: 24VDC SOLENOID Access Control or CONFIGURATION Push Button (N/O) RED (+) 24VDC +/-10% POWER FROM PIGTAIL INPUT ORANGE LOCK CONNECTOR (PRE- WIRED) WHITE (-) ELECTRICAL DATA: Dual Voltage Solenoid 12VDC@ .9 mA (max.) 24VDC@ .45 mA (max.) 12VDC SOLENOID...
