SDC FS23M Series Installation Instructions

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
OVERHEAD INSTALLATION HORIZONTAL
1. Examine the top rail of the door for the most suitable location for the strike plate. Mark the door for the end of the strike closet to
the lock stile, and make a corresponding mark on the header to line up with the first mark.
2. Locate center line of door thickness on the header and attach adhesive cut out template to header. Lining it up with marks, center
punch the tab-mounting screw locations and counter-sink for #10 screw. Saw or rout out the cutout area. Continue to step 5.
SIDEJAMB INSTALLATION VERTICAL
3. Examine the lock stile jamb for the point nearest the center of the door height, with space available for the lock and strike. Mark
the door stile horizontal for the top end of the strike plate and make a corresponding mark on the jamb.
4. Locate center line of door thickness on the jamb and attach adhesive cutout template to jamb, lining up the top of the cutout with
the horizontal mark on the jamb. Center punch the tab mounting screw locations and counter sink for #10 screw. Saw or rout the
cutout.
5. Attach the mounting tabs inside.
(FS23M only) bore 5/16" hole for pilot lamp on inside face of frame as shown on the template.
6.
7. Attach power supply leads to lock leads as shown on page 2. Handle the lock carefully; do not hang it by the wire leads. Insert
wiring into the header cavity carefully so they do not interfere with proper locating of the lock in the cutout.
8. Insert lock. When installed horizontally, the bolt end is nearest the lock stile. When installed vertically on the sidejamb, the bolt
must be at the top end of the cutout. Secure with #10-32 machine screw.
9. Using strike plate as a template, mark screw hole location and drill holes for screws supplied. Mortise as required. Attach strike.
10. The Automatic Relock Switch (ARS) is set for 1/8" clearance between the top of the door and transom bar or head jamb. Any
additional gap may be compensated for by loosening the lock nut and turning the switch assembly clockwise until proper
adjustment is reached. Be sure to tighten lock nut when adjustment is satisfactory.
Easy Installation or Servicing
All Space Saver locks are
easily installed in any existing
entrance merely by mortising
out a cutout, attaching the
wiring, inserting the lock, and
bolting it into position with two
attaching tabs. Cutting studs is
no longer a problem or
expense.
P:\INSTALLATION INST\BOLT LOCKS\INST-90 DEG
INSTALLATION INSTRUCTIONS
FS23M, 1090, 1190 SERIES

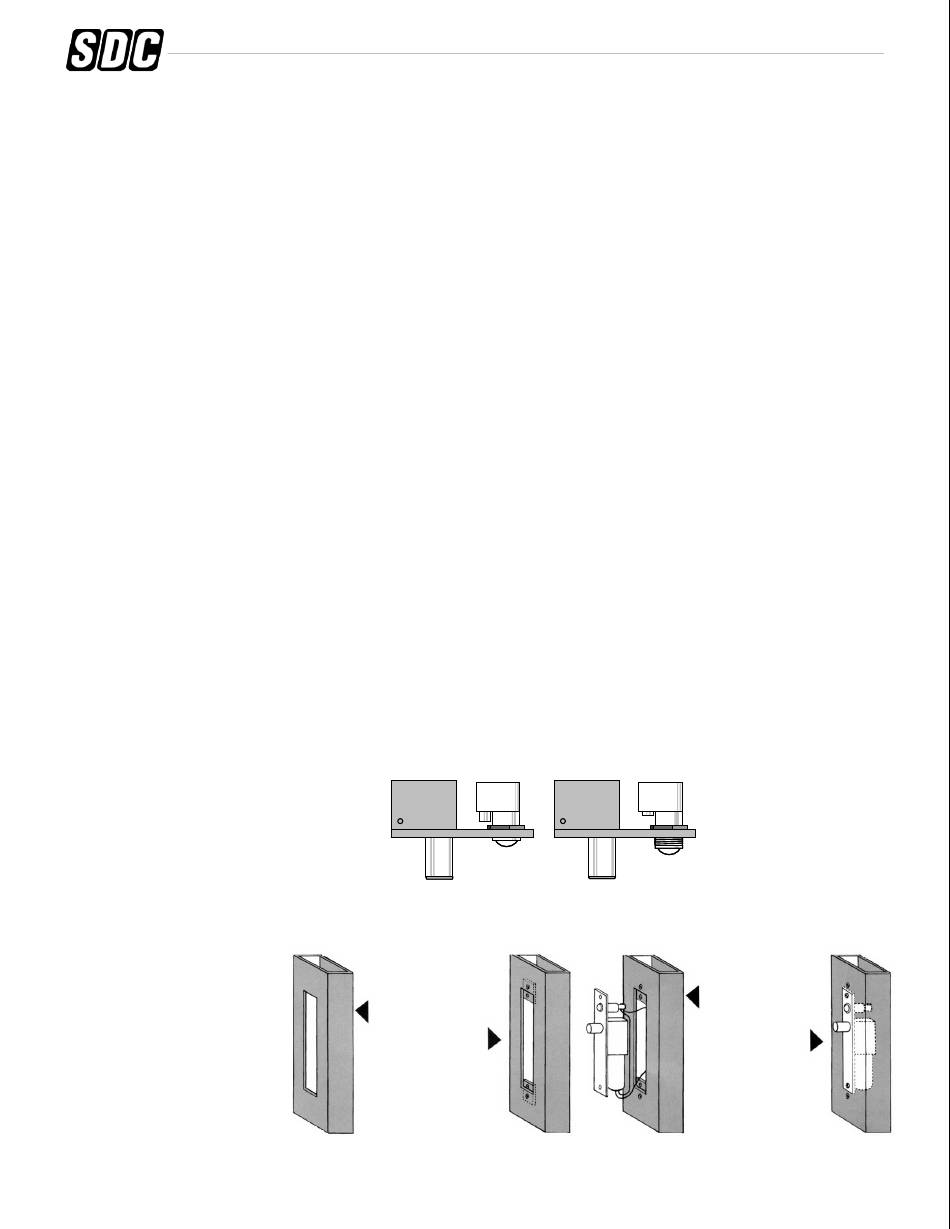

Auto Relock Switch (ARS) Auto Relock Switch (ARS)
Adjustable for Wide Door Gap Adjustable for Wide Door Gap
Loosen nut. Loosen nut.
Turn assembly Turn assembly
clockwise for wide clockwise for wide
door gap. door gap.
Tighten nut. Tighten nut.
Fig. 1 Fig. 1
1. Mortise cutout in 1. Mortise cutout in
tube for face plate tube for face plate
(fits flush with (fits flush with
surface of tube). surface of tube).
2. Position screws 2. Position screws
for attaching for attaching
tabs, drill holes, tabs, drill holes,
attach tabs. attach tabs.
REV J 12-21 Page 1
Fig. 2 Fig. 2
3. Connect wiring 3. Connect wiring
to lock. to lock.
4. Slide lock into 4. Slide lock into
position, attach position, attach
to tabs. to tabs.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
