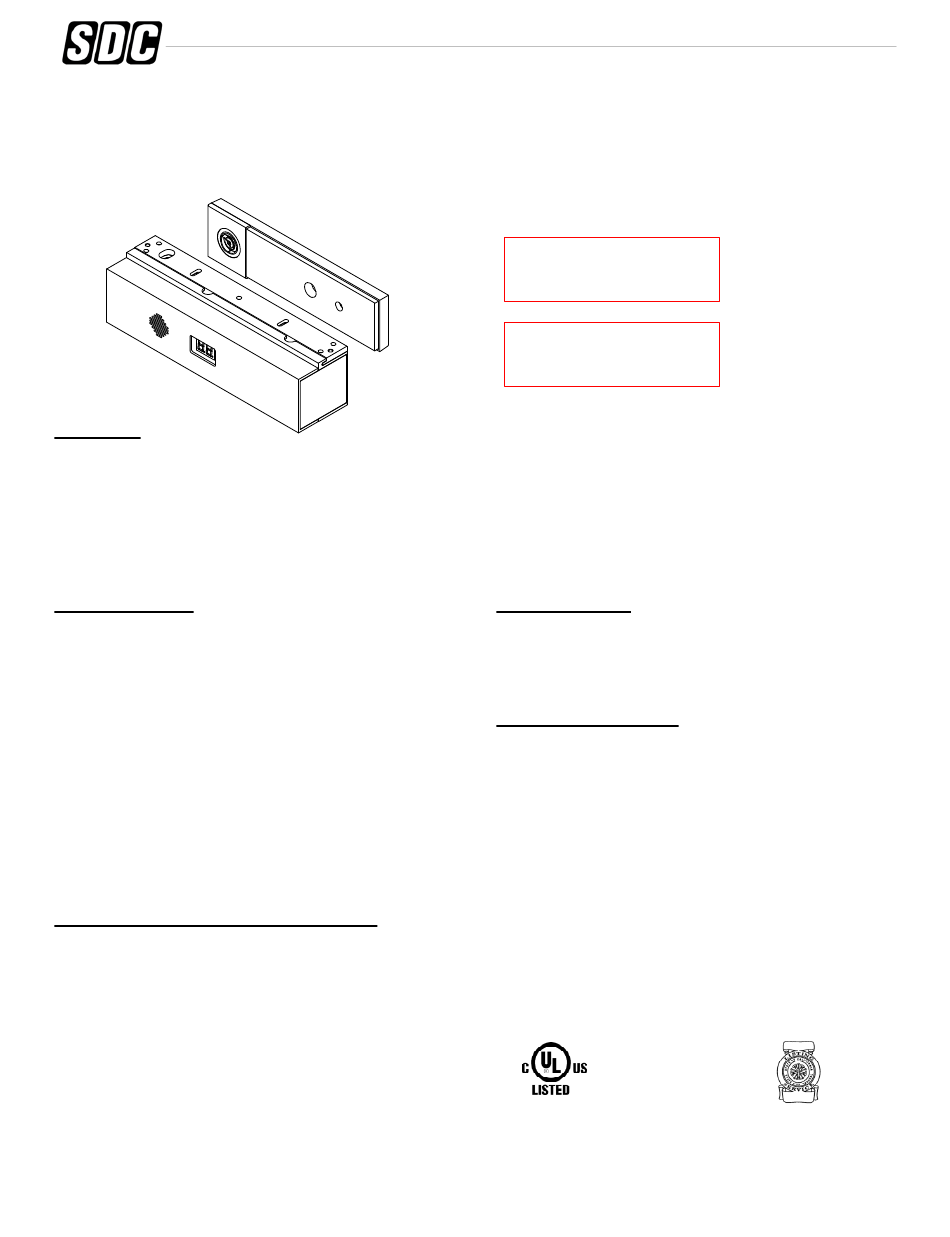

SDC 1511S Installation Instructions Manual

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
Application
When unauthorized egress is initiated, the Exit Check
display and voice commands inform the person intending to exit of the seconds remaining to unlock. Meanwhile, the person exiting must wait allowing
personnel or security respond. The door unlocks after the 15 or 30 second delay period has elapsed, permitting egress. A signal from the fire/life
safety system will release the lock immediately for uninhibited egress in an emergency.
®
Exit Check applications include:

Restricting the egress of patients for their own safety.

Restricting the egress of commercial center patrons for security application needs.

Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
Standard Features

1500 lbs. Holding Force

15 or 30 Second Exit Delay when activated.

1 or 2 Second Nuisance Delay

75dB Alarm Tone with Digital Display & Selectable Voice Instruction

Choice of Activation Trigger:
- Door Movement
- Exit Device w/ REX Switch
- Touch Sense Bar w/REX Switch

Auto Power-Up – Occurs when power is restored and/or the fire
panel is restored. (When Allowed by Code)

Manual Power-Up – This is a UBC & California Building Code
Compliant Feature – Only after power restoration and fire panel
reset may the lock be reset manually at the opening. Lock can be
reset with the built-in reset key switch or a key switch or keypad
adjacent to the door.

Vandal resistant Proximity Sensor Trigger

Auto Sensing 12/24VDC input power

Connection for Tandem Option (Pairs of Doors)
Building & Fire Life Safety Code Compliant

1511S/T with NA, ND, NH, or NC modes
IBC International Building Code
IFC International Fire Code
NFPA 101 Life Safety Code
NFPA 1, UFC, Uniform Fire Code
UBC Uniform Building Code
CBC California Building Code
SBC Standard Building Code

1511S/T with BD, BH, or BC modes
BOCA National Building Code compliant
Chicago Building Code compliant
P:\INST INSTRUCTIONS\DELAYED EGRESS\INST-1511ST
INSTALLATION INSTRUCTIONS
1511S / 1511T
®
EXIT CHECK DELAYED EGRESS EMLOCK
®
delays egress through the door for a period of 15 or 30 seconds. An integral digital countdown
REV G.13
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
KEEP PUSHING. THIS DOOR WILL OPEN
IN 15 SECONDS. ALARM WILL SOUND.
Optional Features

D = DPS Door Position Switch

B = BAS Bond Alert Sensor

A = ATS Anti Tamper Switch

E = Energy Saver Option (1200 lb. Holding Force)
Electrical Specifications

Interior Applications Only

Input Voltage Requirements:
Dual Voltage (Auto Sensing):
12/24 VDC (+/- 10%)

(Use with a UL 294 Standard Power Supply)

Power Consumption:
Standard Model (1500 lbs.):
1511S – 820/500 mA@ 12/24 VDC
1511T – 1500/850 mA @ 12/24 VDC
Energy Saver (1200 lbs., "E" Option):
1511S – 452/274 mA@ 12/24 VDC
1511T – 660/486 mA @ 12/24 VDC

Lock Status Relay Rating:

Alarm Output Rating:

DPS Rating:

BAS Rating:

ATS Rating:

Operating Condition:
Only the 1511S and the 1511T
have been UL listed as Special
Locking Arrangements to UL
Standard 294, and NFPA 101.
GWXT, GWXT7 - Auxiliary Locks - UL,cUL Listed
FWAX - Special Locking Arrangements - UL Listed
05-25 Page 1
®
California Building
Code Compliant
1 Amp @ 30V resistive
1 Amp @ 30V resistive
250 mA @ 30V resistive
250 mA @ 30V resistive
1 Amp @ 30V resistive
0-49 deg C, 85% RH
(non-condensing)
California State
Fire Marshal Listed
CSFM #3774-0324:103
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
