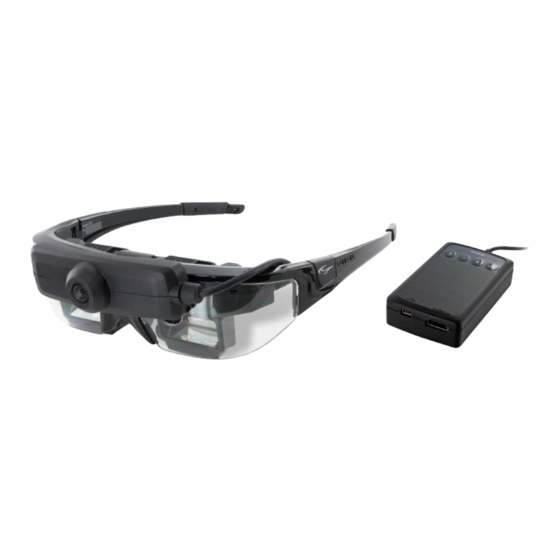

Vuzix STAR 1200XLD User Manual

Ar eyewear system
Hide thumbs

Advertisement

Quick Links

Download this manual
™

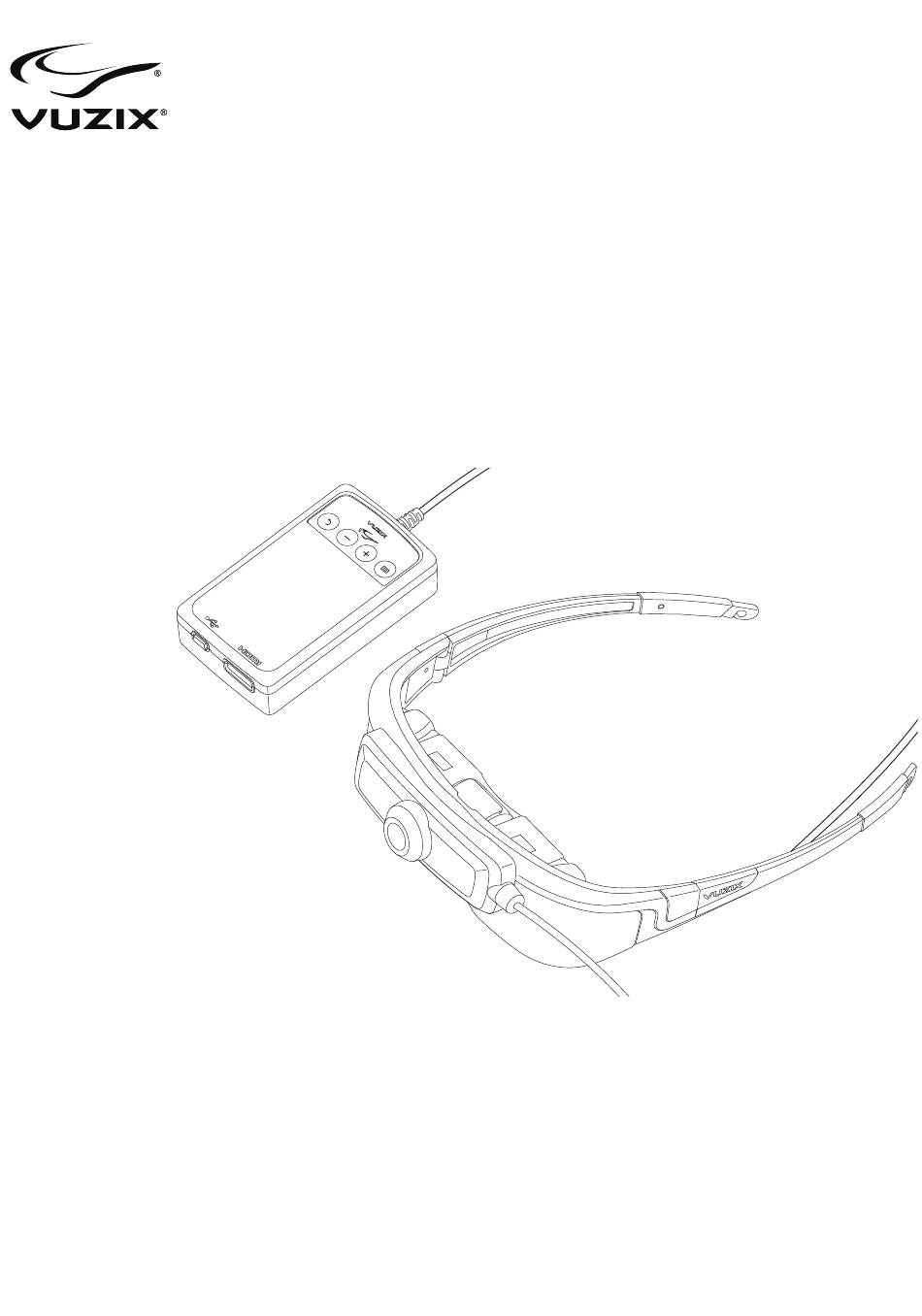

STAR
1200XLD
AR Eyewear System
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAR 1200XLD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vuzix STAR 1200XLD

Summary of Contents for Vuzix STAR 1200XLD

  • Page 1 ™ STAR 1200XLD AR Eyewear System User Guide...
  • Page 2 Display Angle Adjustment Nose Bridge Tether Strap Step 5: Head Tracker Calibration Installing VR Manager (Windows only) Tracker Calibration CONTROLLER & OSD Controller Buttons OSD Display Controls Display Mode STAR 1200XLD REFERENCE STAR Video Eyewear Display 3D Video Controller Nose Bridge...
  • Page 3 Windows - Lost Audio Tether Strap Wrap Tracker USB Charger MHL Adapter – Micro USB to HDMI® Connecting a MHL Adapter DEVELOPER TOOLS AND SUPPORT Vuzix AR/VR SDK Acquiring Vuzix VR/AR SDK CLEANING SUPPORT SERVICES WASTE ELECTRICAL & ELECTRONIC EQUIPMENT...
  • Page 4 Read the Safety and Warranty information before proceeding.
  • Page 5 Section 1 STAR 1200XLD Introduction This Introduction section provides exposure to important terms and key aspects of the video eyewear, helping you to better understand its functions and capabilities. It provides an overview of what AR is, how AR content is created and the roll of the STAR 1200XLD in delivering compelling AR experiences.
  • Page 6 The STAR 1200XLD extends the Vuzix STAR AR eyewear series with a wide field of view, adjustable eye-separation, a high-performance 1080p HD camera and HDMI® connectivity. HDMI (High-Definition Multimedia Interface) enables the STAR 1200XLD to connect to virtually any audio/video device with HDMI output for improved video quality.
  • Page 7 The STAR 1200XLD is a see-through AR eyewear system that enables the wearer to see the world directly with computer-generated content overlaid in the transparent displays. The above image shows a view of a real world desktop with the two animated characters (circled) overlaid in the users view.
  • Page 8 Other Components & Host Devices: • All of the STAR 1200XLD’s key components are Windows compatible. Some of the STAR components may work with other operating systems and host devices. Some features and capabilities are not supported on non-Windows devices and compatibility is not guaranteed.
  • Page 9 The STAR’s camera and tracker components are not compatible with HDMI equipped host devices that do not provide compatible data input ports and/or drivers. 1. 1080p HD camera 2. STAR 1200XLD video eyewear with Controller 3. Controller 4. Wrap Tracker...
  • Page 10 Section 2 STAR 1200XLD Installation Though the STAR 1200XLD installation and setup is fast and easy, there are specific requirements. A Quick Start Guide is provided for those very familiar with hardware and accessory installations but for most people, these more complete instructions are more...
  • Page 11 These instructions lead you through the installation and connection of a STAR 1200XLD AR eyewear system. The most common installation configuration for the STAR AR eyewear line of products is with a Windows based personal computer. These installation instructions are designed to reflect that with additional notes and comments highlighting known variances when used with alternate host devices.
  • Page 12 A variety of electrical plug adapters are provided, changeable by pressing the tab in the bottom corner of the charger. Connect the Controller to the USB charger using the “mini-B” USB cable provided. Allow the Controller to charge for a minimum of 4 hours for its first charge. Tip: Once charged, the Controller can power the STAR AR eyewear for a period of time without a USB connection.
  • Page 13 USB port may damage the tracker. To function correctly, the tracker must be calibrated using the VR Manager software package, included with your STAR 1200XLD. See the VR Manager section of this User Guide for calibration details.
  • Page 14 A USB extension cable can be used as long as it is meets USB 2.0 specifications. Some lower quality USB extension cables are know to adversely affect performance. The STAR 1200XLD supports HDMI 1.4a and connects to your host device using the provided HDMI cable or an alternate HDMI high-speed cable.
  • Page 15 At this point your eyewear, camera and other components will be operational but require adjustment or calibration for optimal performance. The STAR 1200XLD generally does not require additional configuration for displaying standard 2D video. When the eyewear is turned on, it will self configure to mirror your desktop display.
  • Page 16 Repeat the process to adjust the other eye’s display. The angle of your displays can also impact their clarity. Vuzix eyewear is equipped with a patented Accutilt system that enables the display to be to be tilted up or down by up to 15 degrees.
  • Page 17 Excessive and/or frequent adjustment or sharp bends in the wire arms may weaken and break them. Replacement nose pads are available from Vuzix. For active applications, a tether strap can be used to provide a more secure fit.
  • Page 18 Tip: Vuzix provides a free SDK to assist in enabling tracker support in software applications. Go to “www.vuzix.com/developer” for additional information. The gyros and magnetic field sensors require calibration. The gyros generally do not require re-calibration (zeroing) unless the tracker is connected to a different computer.
  • Page 19 Place the Wrap eyewear flat on your desk facing your computer. Note: Do not move the eyewear while the gyro zeroing process is being performed. Follow the on-screen instructions to zero the tracker’s gyros. Once the gyros are zeroed, VR Manager will present you with its Calibration screen. Press the “Begin Calibration”...
  • Page 20 Put on your eyewear positioning them as they will normally be used – upright, at eye level and facing your computer – and then press the “Set Zero” button. The Set Zero button establishes the Tracker’s home or centered position. As you move your head you will see the indicators and values in the Yaw, Pitch and Roll indicators reflect movement relative to that centered position.
  • Page 21 Use the provided USB charger for the shortest charge time. Its available power is divided among it four ports. Use only one port to minimize the charge time. The Vuzix icon will flash while the Controller is charging. Allow it to fully charge before using your STAR eyewear for the first time.
  • Page 22 Minus Selector Changes the OSD selection to the option and decreases adjustment settings. Return – Go Back A double-press toggles between 2D and the last 3D setting, if the OSD is not displayed. Press it once to turn off the OSD, if it is displayed. With the display on, double-press the Power &...
  • Page 23 You have three display modes to choose from: • “2D” for standard 2 dimensional content, • “SxS” for side-by-side formatted 3D content, and • “T/B” for top/bottom formatted 3D content. Tip: You can toggle between the current and prior display mode by double-pressing the Go Back button.
  • Page 24 The Reference section of this User Guide provides a collection of information on various aspects of the STAR 1200XLD and its software and accessories. This detailed information is provided to assist you in getting the most out of your eyewear and overcoming obstacles that you may...
  • Page 25 Some older systems may require additional display configuration. For the STAR 1200XLD display to function correctly on a Windows based PC the computer’s display settings must be configured as follows: The computer must be configured for two monitors displaying the same image.
  • Page 26 Windows based personal computers, mobile phones and tablets. Note A STAR 1200XLD may work with other operating systems, such as the Mac OS or Linux, but some components may not work with these operating systems. Though it is known that the...
  • Page 27 Repeat the process to adjust the other display. Your STAR 1200XLD is equipped with a patented view angle adjustment called “Accutilt”. The mechanism allows you to rotate and tilt the display module up and down approximately 15° to achieve the best quality display.
  • Page 28 The camera on the STAR 1200XLD can be removed to use it without a camera or to change the lens covers. All that’s required to remove the camera is a #2 Phillips screwdriver, a .035 Allen wrench (hex key) and a couple of minutes time.
  • Page 29 Remount the camera and wipe away any fingerprints with a clean microfiber cloth and you’re ready to go. The noise isolating earphones provided with the STAR 1200XLD are removable and the eyewear can be used with or without them attached. The earphones are interchangeable and can be used...
  • Page 30 Control Panel and selecting a different speaker system. A tether strap or lanyard is provided for those unaccustomed to wearing glasses or who are moving around while wearing the STAR 1200XLD. The tether will help secure (but not prevent) it from falling off and possibly being damaged.
  • Page 31 Refer to the “VR Manager” section for detailed information and instructions on calibrating the Tracker. A 2000mA USB charger is provided with the STAR 1200XLD. This charger is compatible with most types of electrical outlets from around the world. See the separate USB Travel Charger Adapter User Manual for important safety information and...
  • Page 32 USB connector and converts it to a HDMI signal for use on supported devices, such Vuzix eyewear equipped with a HDMI compatible Controller. The signal remains in digital format throughout the conversion process, avoiding quality is lost.
  • Page 33 Sprint Epic 4G Touch Vivid Verizon Spectrum AT&T Galaxy S II Skyrocket (i727) Rezound Prada T-Mobile Galaxy S II (T989) Amaze 4G Nitro HD AT&T Galaxy S II (i777) Sensation XE Galaxy S II (i9100) JetStream Infuse Sensation 4G EVO View 4G EVO 3D Sensation Flyer...
  • Page 34 Tip: For continuous playtime when using a MHL adapter connect both the MHL adapter and the eyewear’s HDMI Controller to a power source, such as the USB Power Adapter provided. For maximum output, do not connect other devices to the USB Power Adapter. Connect a HDMI cable between the HDMI port on the MHL Adapter and the HDMI •...
  • Page 35 Section 4 Service and Support From time to time you may have a question or you might encounter a challenge that requires assistance. This Service and Support section is able to answer many of the commonly asked questions or direct you to someone able to assist with the less common questions.
  • Page 36 Vuzix video eyewear. It is available for download from the Vuzix website and can be used royalty-free in any non-competing application, including commercial software.
  • Page 37 Support for the AR camera and ALVAR fiduciary markers provided by the Vuzix AR/VR SDK in its AR Extension, packed in a separate installer. It demonstrates the use of OpenCV for camera support. The Vuzix AR/VR SDK is available for download and royalty free use in not competing applications, including commercial products.
  • Page 38 Your eyewear is virtually maintenance free, requiring only occasional cleaning with a soft microfiber cloth. Do not spray cleaners onto the eyewear or any of its components or immerse them in water. If required, spray a small amount of optical lens cleaner on a microfiber cloth and use that to clean stubborn marks or oily film.
  • Page 39 United Kingdom, Europe, Russia, Middle East, and Africa United Kingdom: United States, Canada, Central & South America, Asia (other than Japan), United States: Australia, and New Zealand Corporate Website: www.vuzix.com/uksite Email Customer Support: vuzix@tmti.com Customer Helpline: 0044 844 477 2977 Customer Service Hours:...
  • Page 40 As an example a “1200” could refer to no less than 6 different models and “STAR” could refer to 4 very different models. Please provide the complete model name, such as the “STAR 1200XLD” when seeking technical assistance or referencing your product..
  • Page 41 保 証 書 本書は、無料修理を行うことをお約束するものとなります。 修理の際には、本書を同封して送付下さい。 本書は再発行致しませんので、大切に保管して下さい。 Eメールサポート : japan@vuzix.com の項目は必ずご記入下さい。 仟隣 殭 种箛磕䈎 殭 痟 評烝鏤蹙 殭 廝燒 燒隣 撤脉 鴈 殭 竴箛祘窂 殭 疢曠┦隣 殭 竴箛祘窂 殭 堙朝隣 使 隣 膅堙朝癮寢淋䐢 甠 痟撤脉 殭 鴈 殭  䇮籞䈎 保証期間（ご購入年月日から）１年...
  • Page 42 1. The equipment that you bought has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment. 2. In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems.
  • Page 43 Vuzix, the Vuzix logo, View the Future, Wrap and STAR are trademarks of Vuzix Corporation registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Vuzix Corporation accepts no responsibility for errors that may appear in this manual.
