Summary of Contents for Vuzix BLADE 447

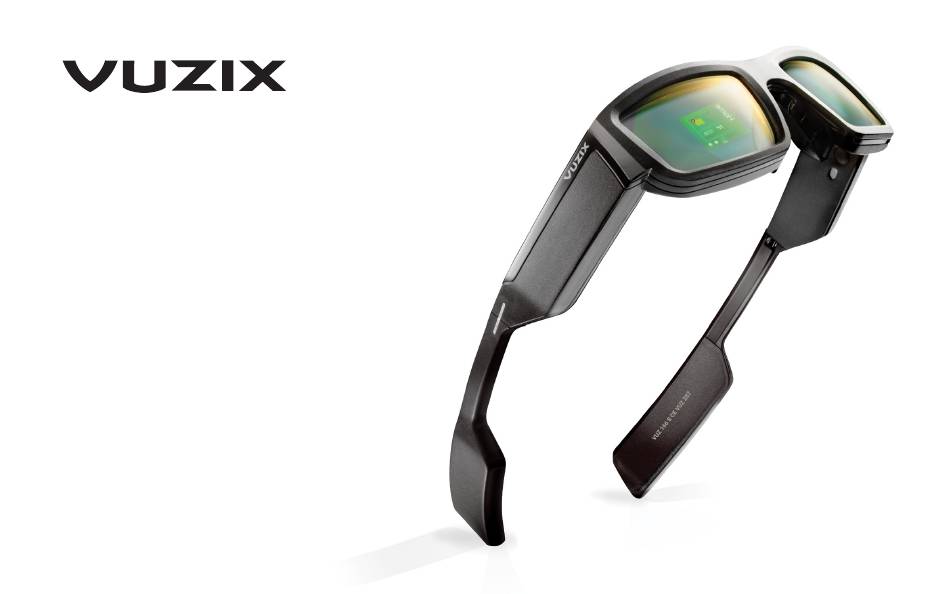

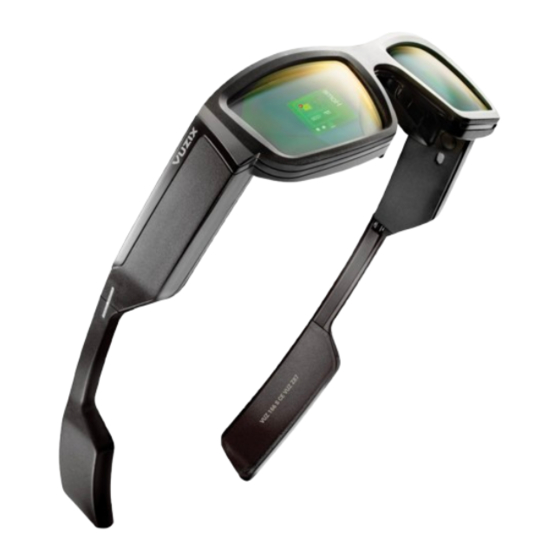

- Page 1 BLADE ® SMART GLASSES Model 447 Safety Glasses User’s Manual version 1.0 Before getting started, please read the Safety Instructions at: https://www.vuzix.com/support/safety-warranty-blade...
-
Page 2: Introduction To Vuzix Blade
Some Android applications and content Applications provided with the device are may not work as expected due to the subject to updates and discontinuation Vuzix Blade Smart Glasses’ design without prior notice. characteristics and its application. Vuzix is not liable for performance issues... - Page 3 Introduction to Vuzix Blade Package Contents Device Layout and Components HD Camera (8MP) Please be sure your Vuzix Blade came with all the contents shown. If you are missing any items contact Vuzix at www.vuzix.com/support/blade-smart-glasses. Full Color See Through Display...
- Page 4 Charging Your Blade is equipped with internal rechargeable The Power LED will indicate the various battery and batteries and is shipped with a partial charge. It is charging states using the following blink patterns: recommended that the battery be fully charged for first time use.
-
Page 5: User Controls
User Controls There are only two physical interfaces on the device, the power button and the touchpad (see illustration on page 4). Power Button Power Button The power button has multiple functions including: • display ON/OFF – press and release the power button. •... - Page 6 User Controls Basic Gestures Advanced Gestures These two simple gestures will quickly Two finger gestures combined with the basic get you started using your Blade. gestures are all you need to navigate the device. One-Finger Tap Two-Finger Tap Two-Finger Hold One-Finger Hold One-Finger Swipe One Second...
- Page 7 User Controls First Time User Experience Ensure Blade has enough power (see page 5). When starting your The power LED will Blade for the first light and remain on To turn ON press and hold the power button for time, initial set up when Blade is on.
- Page 8 User Controls Turning Blade Off Press and hold the power button for three seconds. Select Power Off from the menu. Toggle Display On/Off Press and release (one second). Rebooting Blade Press and hold the power button for three seconds. Select Reboot from the menu. Turning Airplane Mode ON/OFF Press and hold the power button for three seconds.
-
Page 9: Onboard Apps
Onboard Apps The Vuzix Blade comes pre-installed with five standard applications. • Home • Photos • Camera • Settings • Control (Music) Home Screen A widget is a snapshot of an Warning Bar Status Bar The Home App screen consists of applications current state and the fields identified in the illustration. - Page 10 REC icon will blink. The length of The Camera App is where you will recording time will also be displayed. find all of Vuzix. Blade’s picture When video is being recorded, you taking and video recording features. can navigate away from the Camera App to enjoy other Blade features.
- Page 11 Onboard Apps Camera App (continued) Additional Camera Actions Within the Camera App, there are actions that are common between the Capture and Record modes. Recording Video Back - returns to the app’s main screen. Preview - displays an image of the picture or video being captured.
- Page 12 Onboard Apps Control (Music) App The Control App allows the Blade to control music being played on your smart-phone. The app shows 3 lines indicating the track details. These details are also shown on the widget. Controls that are available are return, go to previous track, play/pause and go to next track.
- Page 13 Onboard Apps Photos App The Photos App allows you to navigate through and view pictures and videos captured on the Blade. A preview of the most recent media will be displayed on the home screen. Note: The Blade is pre-loaded with four videos and 16 photos.
- Page 14 Onboard Apps Settings App Companion Link The Settings App is where users can go to adjust the Blade’s The Companion Link App will allow you to connect a smart- settings or check the status of any of the Blade’s features (1-3). phone (Android phones or iPhones) to your Blade.
- Page 15 Onboard Apps Settings App Bluetooth USB Mode Blade is Bluetooth capable and can be paired with any standard Bluetooth Blade currently has three USB modes. device, including: headsets, headphones, MTP – This is the default mode. Your speakers and mouse. connected device will show Blade with Through the Settings App you can turn media icon under Devices and Drivers.
- Page 16 Onboard Apps Settings App Audio Software Update The Blade has two built-in microphones that are used during video recording and by applications that require voice input. To listen to audio from the Blade, you can either Software updates are installed via Wi-Fi connect a Bluetooth speaker, Bluetooth headphones, or wired headphones.
- Page 17 Keyboard Several task specific keyboards are Text Keyboards included in the BladeOS. When character entry is required, the appropriate keyboard Text Symbols Caps Lock will appear automatically. For example, if text is required to be entered, a text specific keyboard will be displayed.
-
Page 18: Companion App
Companion App is an app used to control Blade’s settings from your smart-phone. To enable advanced features like installing apps, updating settings, and receiving notifications, connect your Vuzix Blade to your iOS or Android phone via the Companion App. Install the Vuzix Blade Companion App Find the Vuzix Blade Companion App on the App Store or Google Play Store (Search for “Vuzix Blade”) and install it on your phone. - Page 19 Applications The Blade safety spectacles are designed to protect the user against eye injuries through mechanical impact and flying particles. The Blade safety spectacles will ensure a secure and comfortable fit and protect against common hazards. This product can be used in a wide range of applications including: •...
- Page 20 (EU) Regulation 2016/425. This product has been examined at the design stage by DIN CERTCO Gesellschaft für Konformitätsbewertung mbH, Alboinstr. 56, 12103 Berlin, Germany; Notified Body: 0196. This product was tested, and approved against EN 166:2001 and EN 170:2002 ANSI_ISEA Z87.1:2015. The applicable regulations can be viewed at the EU Declaration of Conformity link: www.vuzix.com/support/blade-smart-glasses...
- Page 21 Eye Protection Marking Frame Markings Lens Markings EN166 EN 166 VUZ 166 S CE 2C-1,7 VUZ 1 S CE Certification Mark Certification Mark Mechanical Strength Mechanical Strength General Field of Use Optical Class EN Standard Manufacturer Manufacturer Scale Number Z87.1 Z87.1 VUZ Z87 VUZ Z87 U5...
- Page 22 Optical Quality and Useful Life The Blade design provides excellent coverage and good field of vision. Optical class 1 lenses are particularly suitable when a high level of visual performance is required while protecting the human eye against damage in the form of defective vision, even when worn for prolonged periods of time.
-
Page 23: Care And Maintenance
Blade. • Use only the included microfiber pouch or equivalent microfiber cloth. • CAUTION: Vuzix Blade is not water resistant. Avoid submerging and exposure to moisture. Excessive moisture will damage the Blade. Other maintenance tips. • CAUTION: Do not pack loose objects in the zipper case with the Blade. Loose objects may rattle and cause damage. - Page 24 Accessories No spare parts are available for the Blade Smart Glasses.
- Page 25 General WARNING: • Always perform a visual inspection of the Blade Smart Glasses prior to use. • Pitted or scratched lenses reduce vision and seriously reduce protection and should be immediately replaced. • Eye and face protectors that have been subject to an impact shall not be used and should be discarded and replaced.
-
Page 26: Learning More
25 Hendrix Drive, Suite A West Henrietta, NY, 14586, USA © Vuzix 2019. This user manual is subject to change. Before using this product, please read the online Safety Instructions at www.vuzix.com/support/legal. All trademarks belong to the respective owners. 447PB0015 (0001) USER’S MANUAL, BLADE, US, SAFETY GLASSES...
