2.1 UNIT DIMENSIONS
ELECTRICAL CONNECTIONS
MAY EXIT TOP OR EITHER SIDE
HIGH VOLTAGE CONNECTION 7/8",
1-3/8", 1-3/4" DIA KNOCK OUTS
LOW VOLTAGE CONNECTION
BREAKER SWITCH
(FOR ELECTRIC HEATER ONLY)
VAPOR LINE CONNECTION COPPER (SWEAT)
LIQUID LINE CONNECTION COPPER (SWEAT)
AUXILIARY DRAIN CONNECTION 3/4 ＂
FEMALE PIPE THREAD (NPT)
AUXILIARY DRAIN CONNECTION 3/4＂
FEMALE PIPE THREAD (NPT)
PRIMARY DRAIN CONNCETION 3/4＂
FEMALE PIPE THREAD (NPT)
DIMENSIONAL DATA
MODEL SIZE
18
24
30
36
42
48
60

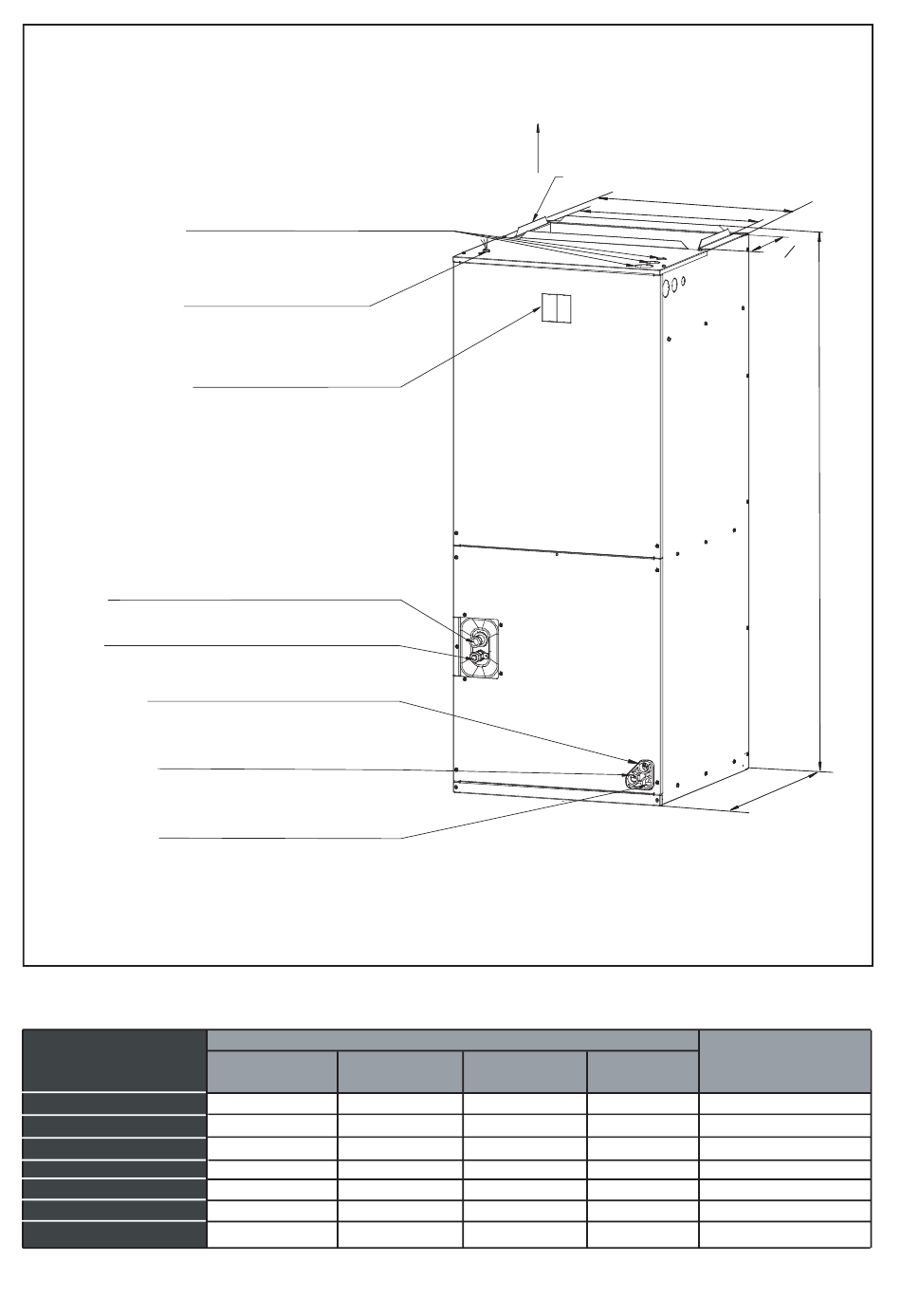

Fig.6 DIMENSIONS
Dimensions inch [mm]
UNIT HEIGHT UNIT WIDTH
"H" IN. [mm] "W" IN.[mm]
41-3/8"[1050] 18-1/8"[460]
41-3/8"[1050] 18-1/8"[460]
46-1/2"[1180] 19-5/8"[500]
46-1/2"[1180] 19-5/8"[500]
54-1/2"[1385] 22"[560]
54-1/2"[1385] 22"[560]
54-1/2"[1385] 22"[560]
NOTE: 25" CLEARANCE IS REQUIRED IN THE FRONT
OF THE UNIT FOR FILTER AND COIL MAINTENANCE.
SUPPLY AIR
FLANGES ARE PROVIDED
FOR FIELD INSTALLATION
UPFLOW UNIT SHOWN;
UNIT MAY BE INSTALLED UPFLOW, DOWNFLOW,
HORIZONTAL RIGHT OR LEFT AIR SUPPLY.
UNIT LENGHT
"D" IN.[mm]
20-1/2"[520]
20-1/2"[520]
21-5/8"[550]
21-5/8"[550]
24"[610] 19-1/2"[496]
24"[610] 19-1/2"[496]
24"[610] 19-1/2"[496]
5
W
A
10
D
UNIT WEIGHT
SUPPLY /SHIPPING WEIGHT
(LBS.[kg])
DUCT "A"
16"[406] 104/117 [47]/[53]
16"[406] 108/121 [49]/[55]
128/143 [58]/[65]
18"[456]
18"[456]
128/143 [58]/[65]
159/177 [72]/[80]
159/177 [72]/[80]
159/177 [72]/[80]
5
16
H
