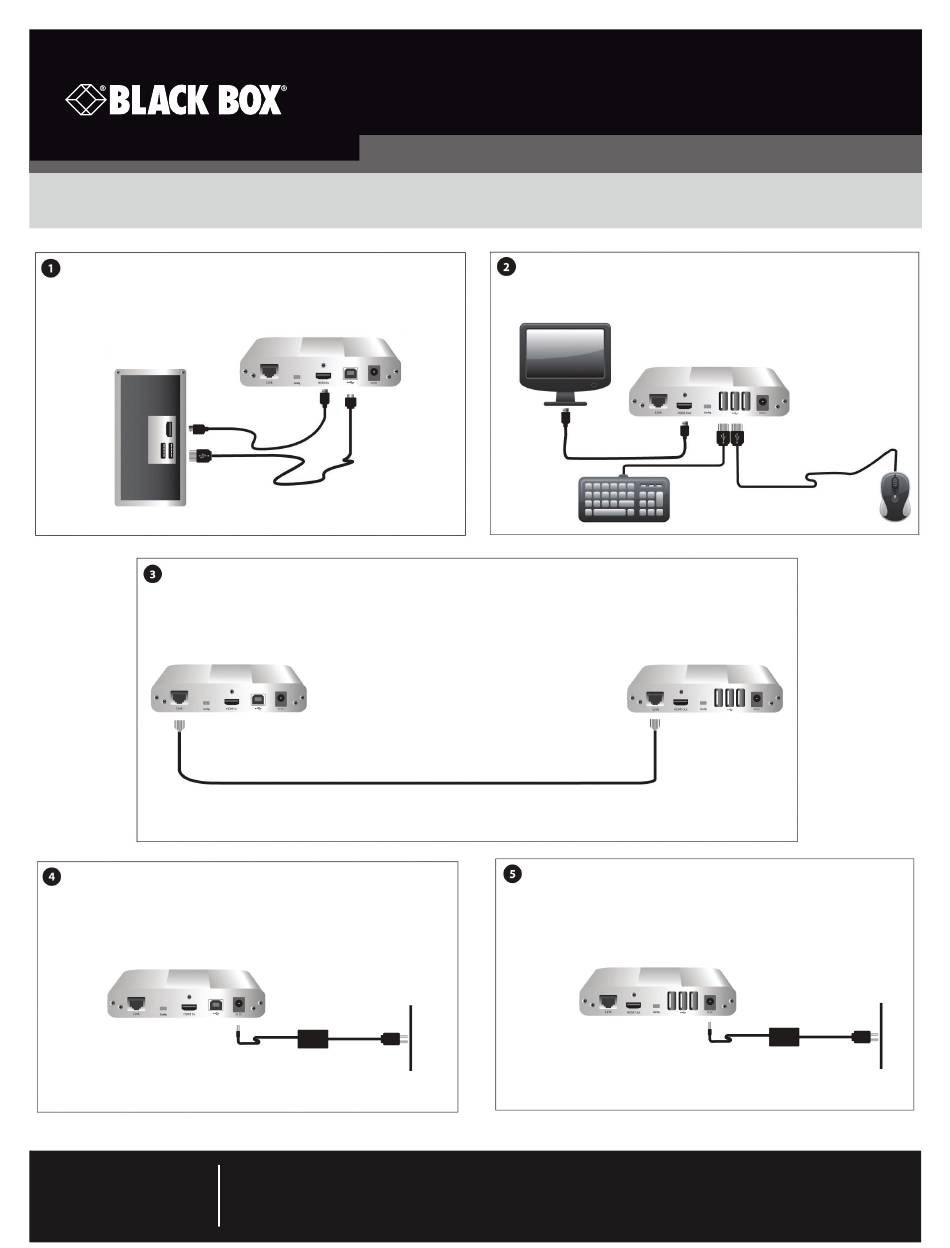

Using the included HDMI and USB cables, connect the
Local Extender to a computer.
Computer
Directly connect the Local Extender to the Remote Extender with a CAT5e STP cable (not
included). Solid-core CAT6 cable or better is recommended for best performance (refer to
detailed cable information and the table on the back of this page).
Max. distance is 330 ft. (100 m) between Local and Remote Extenders.
Power the Local Extender with the included 5-VAC
adapter.
Contact
Information
KVM Extender, HDMI and USB 2.0 over CATx
Local Extender (rear view)
CAT5e (or better) STP
Order toll-free in the U.S. or for FREE 24/7 technical support: Call 877-877-BBOX
(outside U.S. call 724-746-5500)
www.blackbox.com • info@blackbox.com
Connect the Remote Extender to a monitor or TV with
an HDMI cable (not included). Connect your USB devices
(e.g., keyboard and mouse) to the Remote Extender.
Remote Extender (rear view)
Power the Remote Extender with the included 5-VAC
adapter.
February 2010
