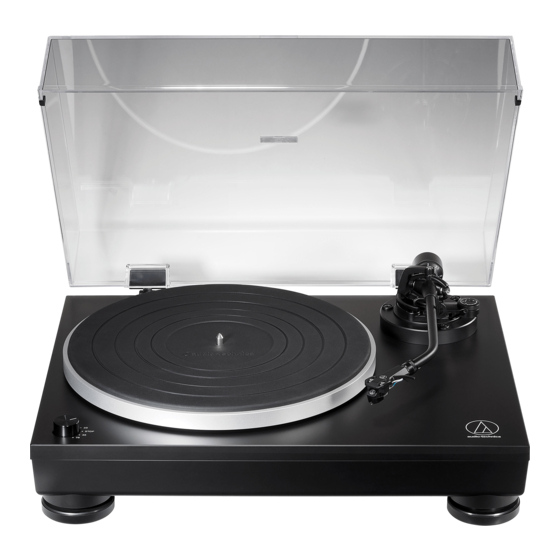

AT-LP5X
User Manual
Direct-Drive Turntable

Advertisement

Table of Contents
loading

Related Manuals for Audio Technica AT-LP5X

Summary of Contents for Audio Technica AT-LP5X

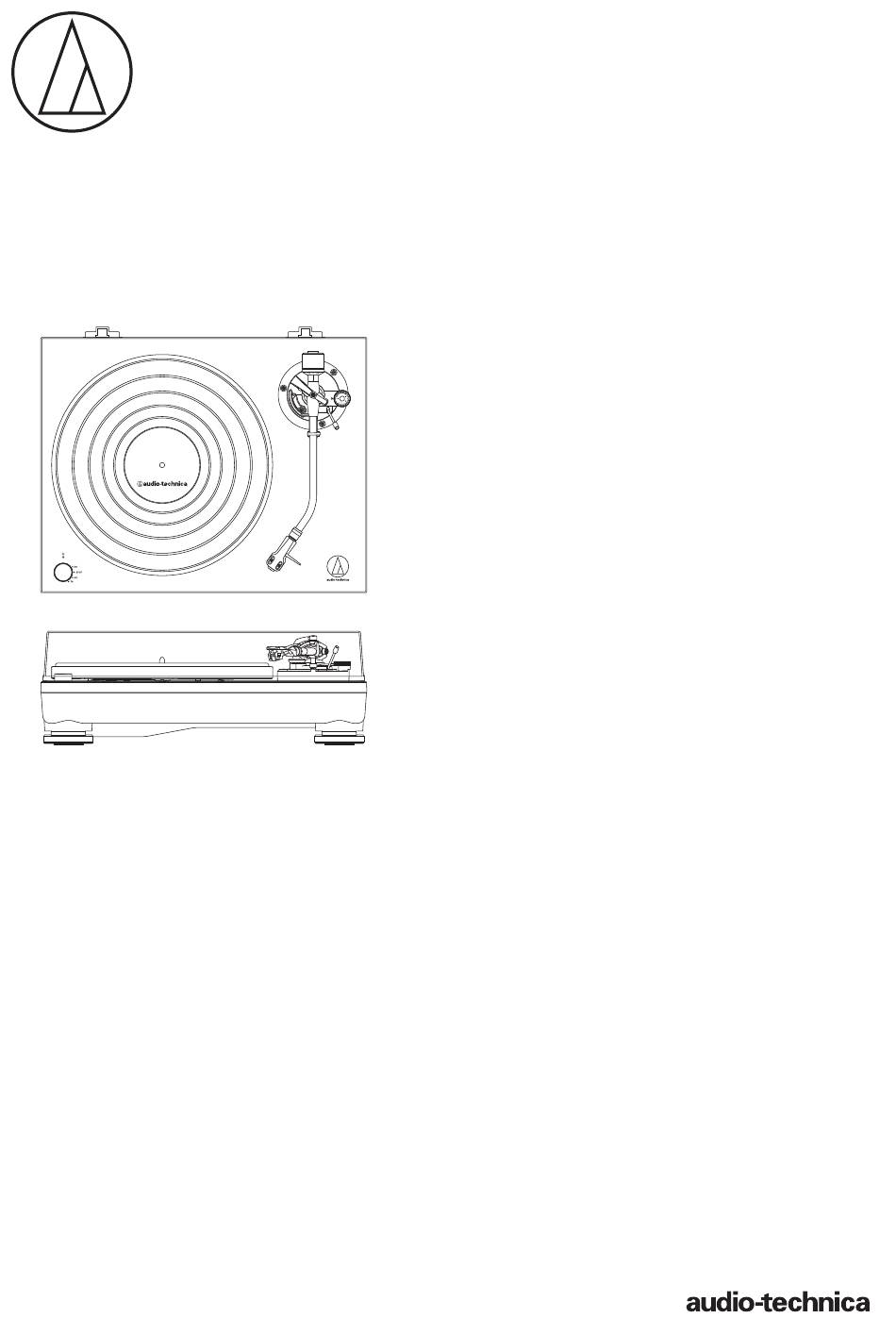

  • Page 1 AT-LP5X User Manual Direct-Drive Turntable...

  • Page 2: Package Contents

    Introduction Thank you for purchasing this Audio-Technica product. Before using the product, please read through the Quick Start Guide and Caution Guide, as well as this user manual when necessary, to ensure that you use the product correctly. This product can be used only in the countries where the product is sold. Make sure that the operating voltage and the plug of AC adapter of the product are correct for the country you live in.

  • Page 3: Safety Precautions

    Safety precautions Safety precautions Although this product was designed to be used safely, failing to use For customers in Canada it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product. IC statement: CAN ICES-3 (B)/NMB-3(B) Important information Warning:...

  • Page 4: Part Names And Functions

    Part names and functions Top view diagram Spindle Platter Cast aluminum platter mounts directly to center spindle/motor shaft. Rubber mat Power indicator Lights in blue: ready to play (AC adapter is connected to the product, supplying full power). Lights in red: standby mode (power consumption is reduced after 30 minutes of nonuse).
  • Page 5 Part names and functions Front and rear view diagram Dust cover Feet Adjust the level of the product. Pre-amplifier selector switch If using an amplifier with a PHONO input jack, set this switch to the PHONO position. If connecting to the AUX jack of an amplifier, set this switch to the LINE position.
  • Page 6 Part names and functions Tonearm Counterweight Balances the tonearm and adjusts to provide the proper tracking force. Tracking force gauge ring Use to adjust the tracking force. Tonearm lift Moves the tonearm vertically to and from the face of the record. Tonearm lift adjust screw Use to set the amount of tonearm lift.

  • Page 7: Preparation For Use

    Preparation for use Leveling the turntable Placing the platter 1. After positioning the product where you want to use it, adjust the This product requires some assembly before using it for the first time. feet so that the product is level. Do not connect the AC adapter until assembly is complete.
  • Page 8 Preparation for use Tonearm balance and tracking force Setting tracking force In order for the cartridge to pick up sound correctly from the record’s 1. While supporting the counterweight so that it does not move, turn the tracking force gauge ring so that its “0” position lines up grooves, the tonearm’s balance and tracking force must be adjusted with the centerline on the back of the tonearm.
  • Page 9 Preparation for use Installing/removing the dust cover Connecting to connectable equipment (active speakers, amplifiers, etc.) The dust cover is designed to protect the product's sensitive components when the product is not in use. Connecting to audio source When attaching the dust cover, insert the dust cover hinges into the two dust cover hinge holders on the back of the body.
  • Page 10 Preparation for use Connecting to computers with USB input Follow the settings for the pre-amplifier selector switch to connect the included USB cable to the USB input of your computer. • The included USB cable connects the product to your computer without need for special drivers.

  • Page 11: Playing A Record

    Playing a record Before playing a record Playing a record 1. Remove the cartridge's protector. Lower the volume of the amplifier, speakers, etc., sufficiently. • If the tonearm is fixed to the tonearm rest, unlatch the clamp. 1. Use the control knob to set the platter rotation speed (33/45/78) to match that of the record.
  • Page 12 Playing a record Pausing the record 1. After lowering the volume of the amplifier, speakers, etc., sufficiently, lift the tonearm with the tonearm lift control lever. Stopping the record 1. Lower the volume of the amplifier, speakers, etc. sufficiently. 2. Lift the tonearm lift control lever. 3.

  • Page 13: Replacing The Stylus

    Care Replacing the stylus Turntable body Removing the stylus • When the turntable body is dirty or dusty, first disconnect the • In addition to the deterioration of sound quality, records may also be AC adapter's cord, and then wipe off the dirt and dust with a soft, damaged as the cartridge’s stylus tip wears down.

  • Page 14: Replacing A Cartridge

    Replacing a cartridge When the turntable is moved Refer to the user manual for the cartridge that you will be using if Using the product's original packing materials, wrap the turntable in you are replacing the cartridge (AT-VM95E) included with this product the reverse order from when you unwrapped it.

  • Page 15: Troubleshooting

    Troubleshooting Problem Solution The platter does not spin. • Is the AC adapter connected to the outlet? Connect AC adapter to the outlet. • Has the AC adapter's plug come off? Check whether or not the plug is properly attached to the AC adapter. The platter spins, but there is •...

  • Page 16: Specifications

    Specifications Turntable specifications USB function Type 3-speed, fully manual operation 16 bit 44.1 kHz or 48 kHz USB selectable Motor DC servo motor Computer interface USB 2.0 Compliant Windows 7 or Drive method Direct drive above, or MAC OSX or above Speeds 33-1/3 RPM, 45 RPM, 78 RPM Turntable platter...
