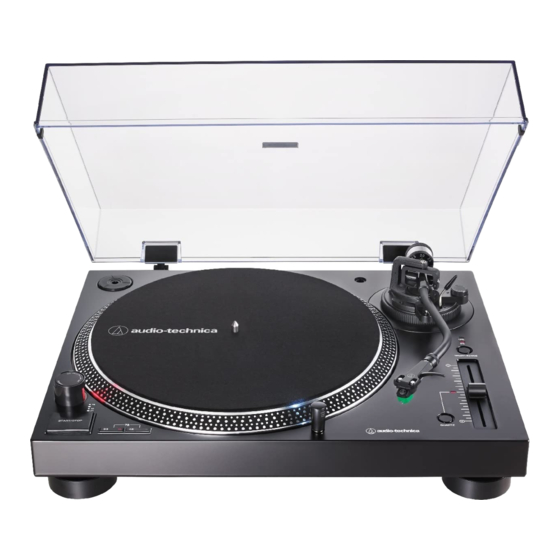

- Page 1 User Manual of Product 1: Audio-Technica AT-LP120XUSB-BK Direct-Drive Turntable (Analog & USB), Fully Manual, Hi-Fi, 3 Speed, Convert Vinyl to Digital, Anti-Skate and Variable Pitch Control Black...
- Page 2 AT-LP 120XUSB User Manual Direct-Drive Turntable...
-
Page 3: Package Contents
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, read through this user manual to ensure that you will use the product correctly. Please keep this manual for future reference. This product can be used only in the countries where the product is sold. Make sure that the operating voltage and the plug of AC adapter of the product are correct for the country you live in. -
Page 4: Safety Precautions
Safety precautions Safety precautions Although this product was designed to be used safely, failing to use For customers in Canada it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product. IC statement: CAN ICES-3 (B)/NMB-3(B) Important information Warning:... -
Page 5: Part Names And Functions
Part names and functions Top view diagram 45-RPM adapter (shown in receptacle) Removable stylus target light Adapts 7" records with large center holes to fixed center spindle. Provides illumination directed at the stylus position for easier cueing in low light. Easily plugs into jack on top of turntable deck. Strobe dots (on platter edge) Quartz button Operate in conjunction with stroboscopic light located under the... - Page 6 Part names and functions Front and rear view diagram Dust cover Feet Adjust the level of the product. Pre-amplifier selector switch If using an amplifier with a PHONO input jack, set this switch to the PHONO position. If connecting to the AUX jack of an amplifier, set this switch to the LINE position.
- Page 7 Part names and functions Tonearm Counterweight Balances the tonearm and adjusts to provide the proper tracking force. Tracking force gauge ring Use to adjust the tracking force. Tonearm lift Moves the tonearm vertically to and from the face of the record. Tonearm rest with clamp Use the clamp to secure the tonearm so that it does not move.
-
Page 8: Preparation For Use
Preparation for use Leveling the turntable Placing the platter 1. After positioning the product where you want to use it, adjust the This product requires some assembly before using it for the first time. feet so that the product is level. Do not connect the AC adapter until assembly is complete. - Page 9 Preparation for use Tonearm balance and tracking force Setting tracking force In order for the cartridge to pick up sound correctly from the record’s 1. While supporting the counterweight so that it does not move, turn the tracking force gauge ring so that its “0” position lines up grooves, the tonearm’s balance and tracking force must be adjusted with the centerline on the back of the tonearm.
- Page 10 Preparation for use • The RCA audio cable's red jack is for the right (R) channel, and the Installing/removing the dust cover white jack is for the left (L) channel. • The dust cover is designed to protect the product's sensitive With PHONO input* Without PHONO input components when the product is not in use.
- Page 11 Preparation for use Connecting to computers with USB input Follow the settings for the pre-amplifier selector switch to connect the included USB cable to the USB input of your computer. • The included USB cable connects the product to your computer without need for special drivers.
-
Page 12: Playing A Record
Playing a record Before playing a record Playing a record 1. Remove the cartridge's protector. Lower the volume of the amplifier, speakers, etc., sufficiently. • If the tonearm is fixed to the tonearm rest, unlatch the clamp. 1. Press the START/STOP button. •... - Page 13 Playing a record 4. Lower the tonearm by moving the tonearm lift control lever to the Stopping the record DOWN position. The tonearm descends slowly onto the record and play begins. 1. Lower the volume of the amplifier, speakers, etc. sufficiently. •...
-
Page 14: Replacing The Stylus
Care Replacing the stylus Turntable body Removing the stylus • When the turntable body is dirty or dusty, first disconnect the • In addition to the deterioration of sound quality, records may also be AC adapter's cord, and then wipe off the dirt and dust with a soft, damaged as the cartridge’s stylus tip wears down. -
Page 15: Replacing A Cartridge
Replacing a cartridge When the turntable is moved Refer to the user manual for the cartridge that you will be using if Using the product's original packing materials, wrap the turntable in you are replacing the cartridge (AT-VM95E) included with this product the reverse order from when you unwrapped it. -
Page 16: Troubleshooting
Troubleshooting Problem Solution The platter does not spin. • Is the AC adapter connected to the outlet? Connect AC adapter to the outlet. • Has the AC adapter's plug come off? Check whether or not the plug is properly attached to the AC adapter. The platter spins, but there is •... -
Page 17: Specifications
Specifications Turntable specifications USB function Type 3-speed, fully manual operation A/D, D/A 16 bit 44.1 kHz or 48 kHz USB selectable Motor DC servo motor Computer interface USB 1.1 Compliant Windows 7 or Drive method Direct drive above, or MAC OSX or above Speeds 33-1/3 RPM, 45 RPM, 78 RPM Turntable platter... - Page 18 Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan ©2019 Audio-Technica Corporation ver.1 2019.03.01 162501380-01-02 ver.2 2019.05.15 Global Support Contact: www.at-globalsupport.com...
