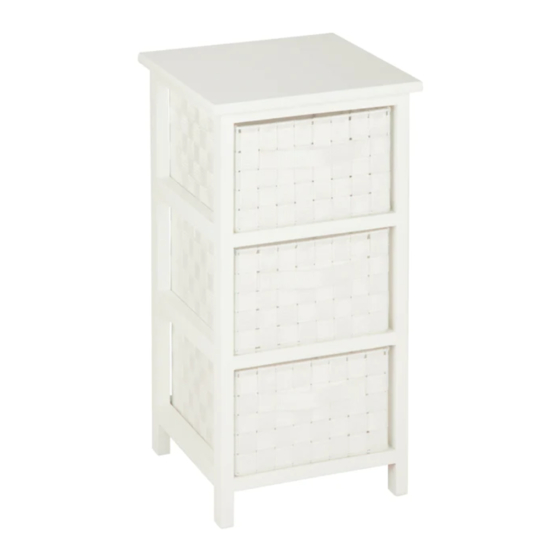

- Page 1 HZ032400TX QUINCY 3 DRAWER STORAGE For assistance with assembly contact: Assembly Instructions Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PO#13881...
- Page 2 HZ032400TX QUINCY 3 DRAWER STORAGE Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below.
- Page 3 HZ032400TX QUINCY 3 DRAWER STORAGE Assembly Instructions Step 1: Put all parts on a soft surface to prevent scratches. Not fully tighten the bolt until the last steps Attach top frame (A) and and shelf frame (C) and side frame (B) by using bolt (1) and allen key.
- Page 4 Step 3: Unfold the woven basket and insert the bottom (F) into the basket (D/E) as show Put the assembled woven baskets into the cabinet Step 4: Attach the bracket (5) into the top edge by using screws (3) as show...
- Page 5 Step 5: Drill the wall and insert the wall anchor (7) into the wall. Attach the bracket (5) into the wall anchor by using screws (4) as show Insert the plastic string (6) into the 2 bracket (5) tightly ASSEMBLY IS COMPLETE...
- Page 6 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
