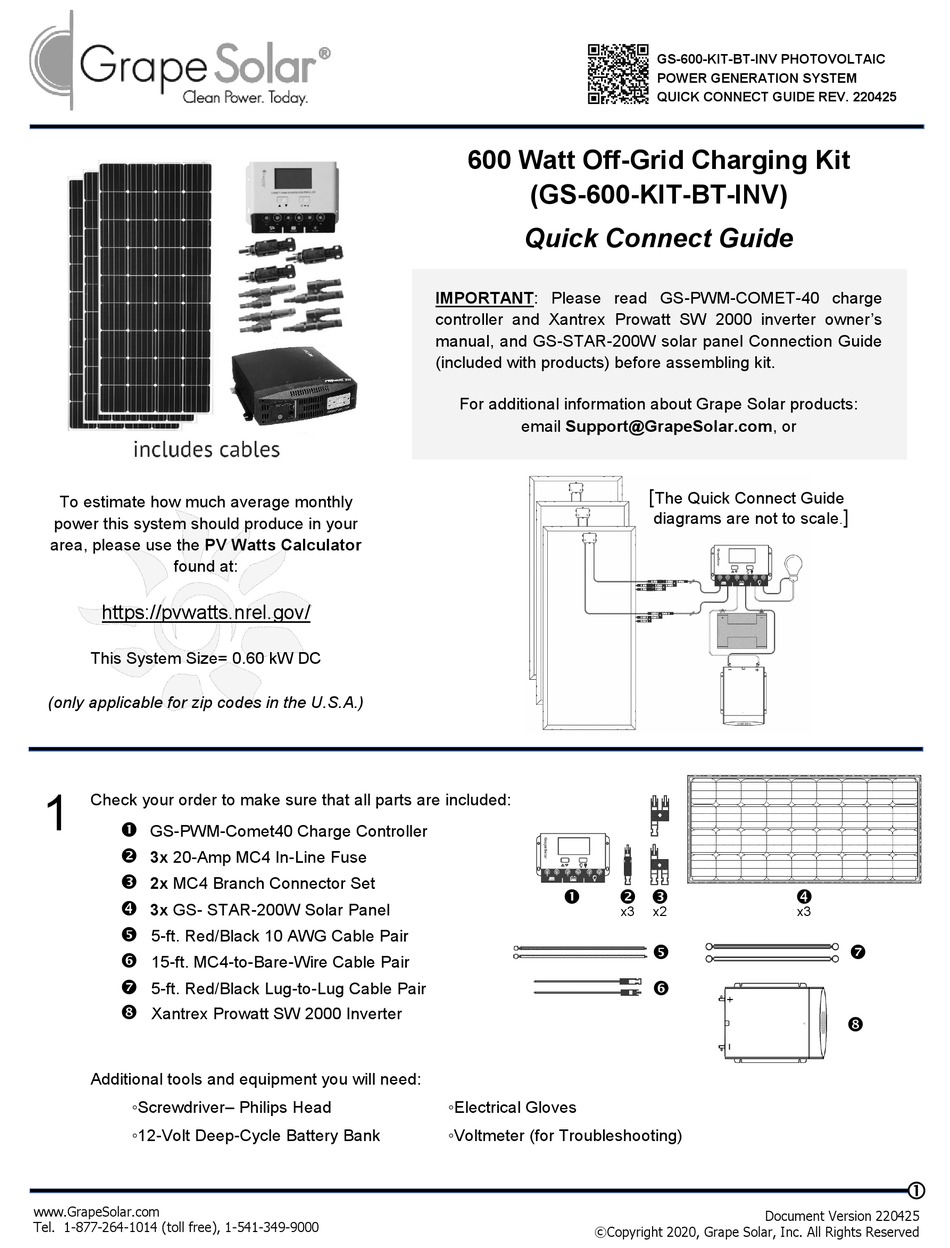

Grape Solar GS-600-KIT-BT-INV Quick Connect Manual

To estimate how much average monthly
power this system should produce in your
area, please use the PV Watts Calculator
found at:
https://pvwatts.nrel.gov/
This System Size= 0.60 kW DC
(only applicable for zip codes in the U.S.A.)
1

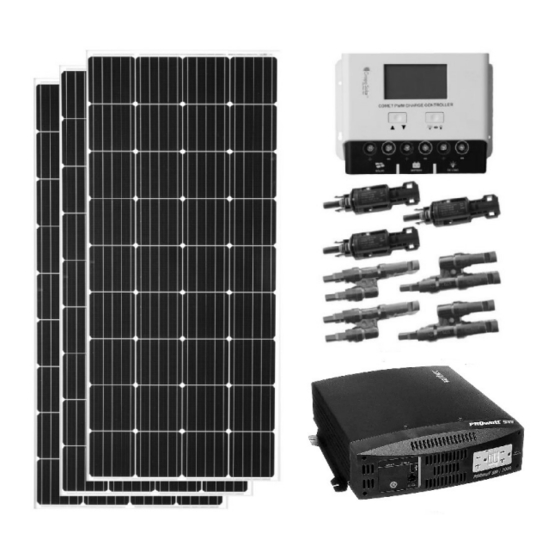

Check your order to make sure that all parts are included:

GS-PWM-Comet40 Charge Controller

3x 20-Amp MC4 In-Line Fuse

2x MC4 Branch Connector Set

3x GS- STAR-200W Solar Panel

5-ft. Red/Black 10 AWG Cable Pair

15-ft. MC4-to-Bare-Wire Cable Pair

5-ft. Red/Black Lug-to-Lug Cable Pair

Xantrex Prowatt SW 2000 Inverter
Additional tools and equipment you will need:
◦Screwdriver– Philips Head
◦12-Volt Deep-Cycle Battery Bank
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000
600 Watt Off-Grid Charging Kit
(GS-600-KIT-BT-INV)
Quick Connect Guide
IMPORTANT: Please read GS-PWM-COMET-40 charge
controller and Xantrex Prowatt SW 2000 inverter owner's
manual, and GS-STAR-200W solar panel Connection Guide
(included with products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or

◦Electrical Gloves
◦Voltmeter (for Troubleshooting)
©Copyright 2020, Grape Solar, Inc. All Rights Reserved
GS-600-KIT-BT-INV PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE REV. 220425
[
The Quick Connect Guide
diagrams are not to scale
  
x3 x2 x3


Document Version 220425
]
.



