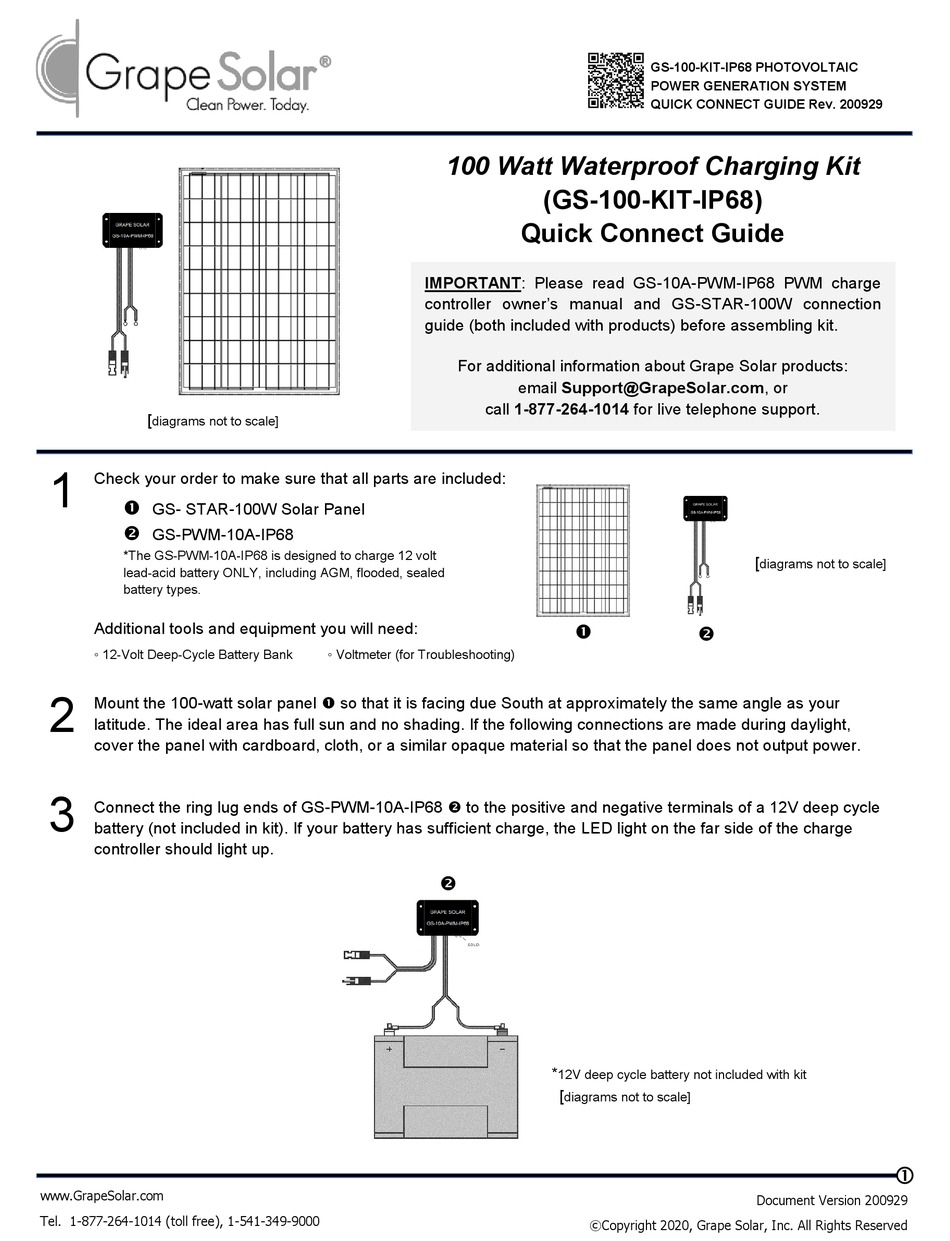

Grape Solar GS-100-KIT-IP68 Quick Connect Manual

[
diagrams not to scale]
1

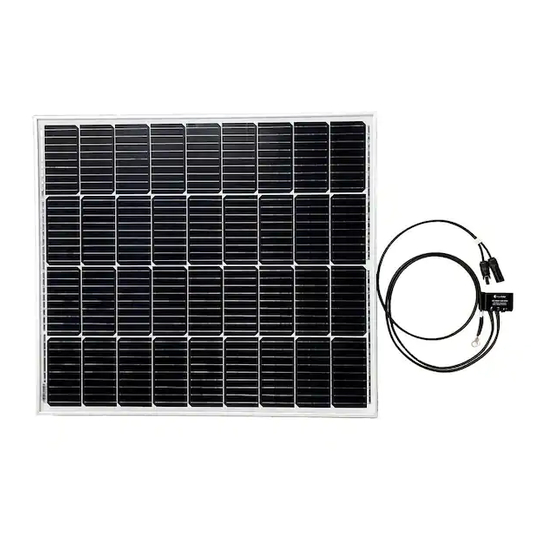

Check your order to make sure that all parts are included:


GS- STAR-100W Solar Panel

GS-PWM-10A-IP68
*The GS-PWM-10A-IP68 is designed to charge 12 volt
lead-acid battery ONLY, including AGM, flooded, sealed
battery types.

Additional tools and equipment you will need:

◦ 12-Volt Deep-Cycle Battery Bank
2
Mount The 100-Watt Solar Panel  so that it is facing due South at approximately the same angle as your
latitude. The ideal area has full sun and no shading. If the following connections are made during daylight,
cover the panel with cardboard, cloth, or a similar opaque material so that the panel does not output power.
3
Connect the ring lug ends of GS-PWM-10A-IP68  to the positive and negative terminals of a 12V deep cycle
battery (not included in kit). If your battery has sufficient charge, the LED light on the far side of the charge
controller should light up.
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000
100 Watt Waterproof Charging Kit
IMPORTANT: Please read GS-10A-PWM-IP68 PWM charge
controller owner's manual and GS-STAR-100W connection
guide (both included with products) before assembling kit.
For additional information about Grape Solar products:
call 1-877-264-1014 for live telephone support.
◦ Voltmeter (for Troubleshooting)

GS-100-KIT-IP68 PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 200929
(GS-100-KIT-IP68)
Quick Connect Guide
email Support@GrapeSolar.com, or

*
12V deep cycle battery not included with kit
[
diagrams not to scale]
©Copyright 2020, Grape Solar, Inc. All Rights Reserved
[
diagrams not to scale]

Document Version 200929

