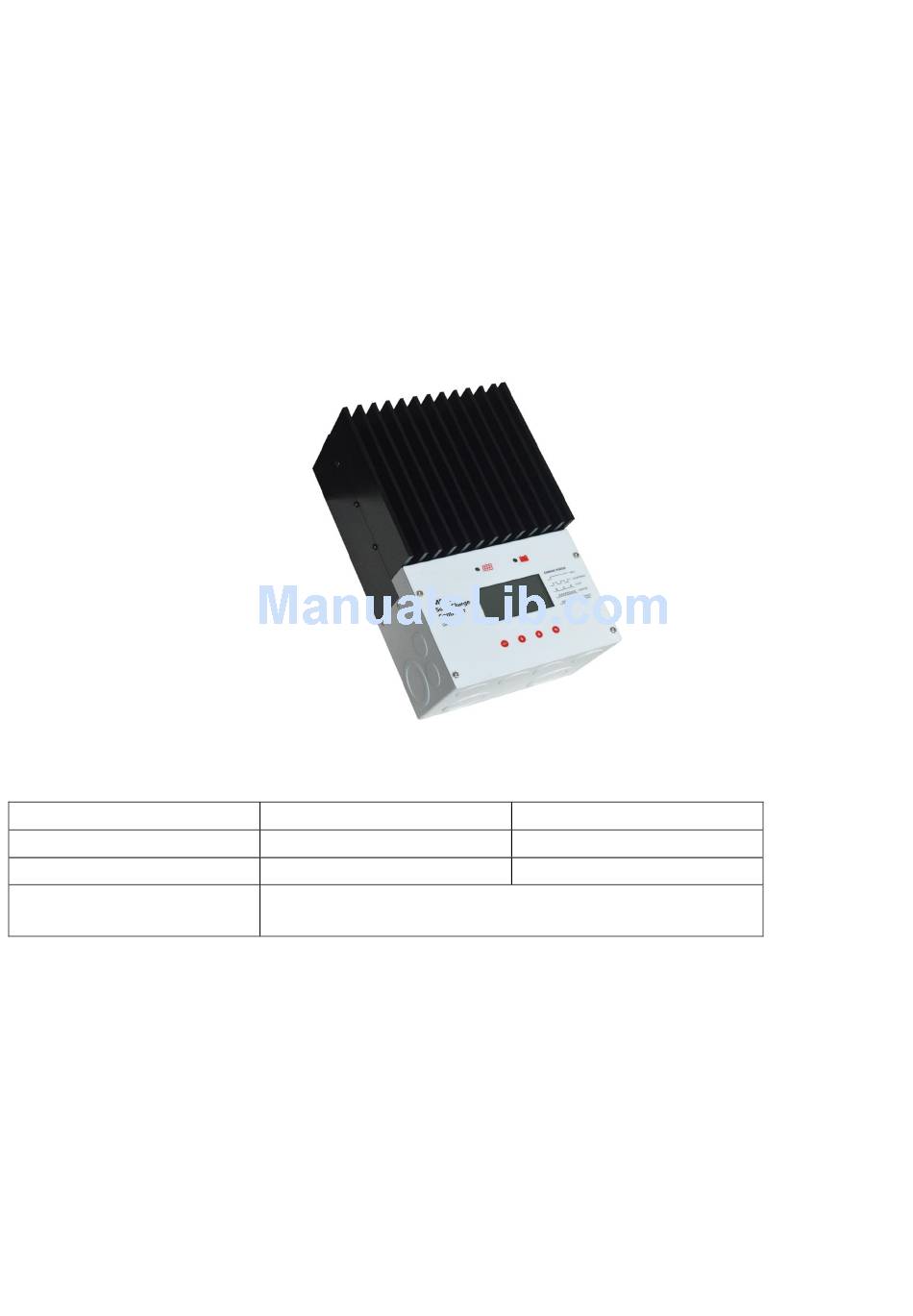

Grape Solar MPPT-45
Solar charge controller
User Manual
Specification:
Model
GS-MPPT-45
GS-MPPT-60
Battery voltage
12V/24V/36V/48V
12V/24V/36V/48V
Charging current
45A
60A
Max. voltage of solar panel
150V
array
Dear users:
Thank you very much for choosing our products!
Please read the manual carefully before using our controllers.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grape Solar GS-MPPT-60
Summary of Contents for Grape Solar GS-MPPT-60
- Page 1 Grape Solar MPPT-45 Solar charge controller User Manual Specification: Model GS-MPPT-45 GS-MPPT-60 Battery voltage 12V/24V/36V/48V 12V/24V/36V/48V Charging current Max. voltage of solar panel 150V array Dear users: Thank you very much for choosing our products! Please read the manual carefully before using our controllers.
-
Page 2: Table Of Contents
Catalog 1. Safety Attention: ..................................3 2. Features: ...................................... 3 3.Charging introduction.................................. 4 4.Connection....................................5 For one machine operation: ............................5 For parallel operation: ..............................5 5. Panel introduction..................................6 Fix the hooks................................... 6 Charging indication................................. 6 Battery indication. -
Page 3: Safety Attention
1. Safety Attention: The input voltage is high, so please read the instructions before operation and please do not operate the controller before training. Warning: The operation is dangerous; please observe proper safety precautions before operation. Attention: The operation can damage or destroy equipment. Reminder: Suggestions and hints to the operator. -
Page 4: Charging Introduction
3.Charging introduction. The full name of MPPT is maximum power point tracking. It is an advanced charging algorithm which can detect the real-time power of the solar panel and the maximum point of the I-V curve that make the highest battery charging efficiency. Contrasted with the traditional PWM controller, an MPPT controller can adjust the maximum power point of the solar panel so that a larger charging current could be supplied. -
Page 5: Connection
4.Connection. 1. For one machine operation: BAT+ PV- BAT- Switch Switch Storage Battery 2. For parallel operation: N Groups of Solar Panels Main Engine Slave 1~n Slave n RS485 RS232 Switch Switch Switch Switch Storage Battery... -
Page 6: Panel Introduction
1---Solar panel. The power for battery charging. 2---Controller. Central nervous system, which controls the overall system. 3---RS485 Telecommunication cable. Communication line of the controller which is necessary for parallel operation. 4---Open space. It can insure the safety of operators (the switching element is optional). 5---Battery. -
Page 7: Battery Indication
Normally on. Charging at Max. Power. Slow flash. （light for 1s，off for 1s，the cycle is 2s） Boost charging. Single flash. （light for 0.1s， off for 1.9s， the cycle is 2s） Float charging. Fast flash. （light for 0.1s，off for 0.1s，the cycle is Equalizing charge. - Page 8 System configuration System Configuration Product info Product Info System Data” is the menu to examine the system status and display status items； “System Configuration” is the menu to set the system running parameters’, and “Product Info” is the menu to examine equipment information. G.
- Page 9 13.8V float charge voltage FCV: 12.6V boost return voltage BCV-R: 12.6V low voltage reconnect LVR: under voltage warning UVW: low voltage disconnect LDV: 120Min equalizing charge duration EQV-T: 120Min boost charge duration BST-T: equaling charge interval EQV-Inv: -3mv/℃ /2V temperature compensation coefficient TEMP-Com: 0～17 load mode...
-
Page 10: Instructions
"12-volt" panels when applied to a 12 volt battery system. This controller functions best with series strings of two to five "12 volt" panels, or one to three "24 volt" panels. Grape Solar does not recommend the use of this controller with a single "12 volt"... -
Page 11: Installation Instructions
8. Installation instructions. 1. Loosen the four screws and open the panel (picture 1). 2. Please take away the baffles of the front or side wiring holes, take out the plastic cable pass-throughs, and install them in the wiring holes. 3. -
Page 12: Environmental Requirements
Bat- Bat+ 【 Picture 4 】 7. Power on. Battery short circuit is prohibited; do not touch the solar panel or the bare port of battery wiring. Choose the cable, do not exceed the current density of 4A/1mm, please make sure the wiring is correct. Do not reverse connect the wire, leave an air switch between battery and controller or between solar panel and controller, open the battery air switch after completion of above job, and then open the solar panel air switch;... -
Page 13: Fault Code
When the PV power exceeds the rated power, controller will limit the PV power under the value of rated power so as to prevent the controller from being damaged, the controller will charge by limited current. 3. Battery reverse connection protection Battery reverse connection will not damage the controller but the system will stop working. -
Page 14: Parameters
OVETMP2 The outside controller is over temperature P_OVRCRT The solar panel is over current P_SHTCRT The solar panel is short circuit P_OVP The solar panel is over voltage P_SHADOW The solar panel is shaded P_EDDY Reverse current in solar panel Tracing working voltage... - Page 15 Over voltage protection √ 16.0V 9.0V ～ 17.0V ； ×nV Limited charge voltage √ 15.5V 9.0V ～ 17.0V ； ×nV Equalizing charge voltage √ 15.2V 9.0～17.0V；×nV（25℃ ） Equalizing charge interval √ 30day 0～255day（0 means close the function） Boost charge voltage √...
-
Page 16: Conversion Efficiency
13. Conversion efficiency 1、12V system BAT OF 12V SYSTEN Output power 2、24V system BAT OF 24V SYSTEN Output power... -
Page 17: 3、48V System
3、48V system BAT OF 48V SYSTEN Output power Dimension of MPPT-45 (in mm) Right side view Left side view planform... - Page 18 Upware viwe Button view Front view...
