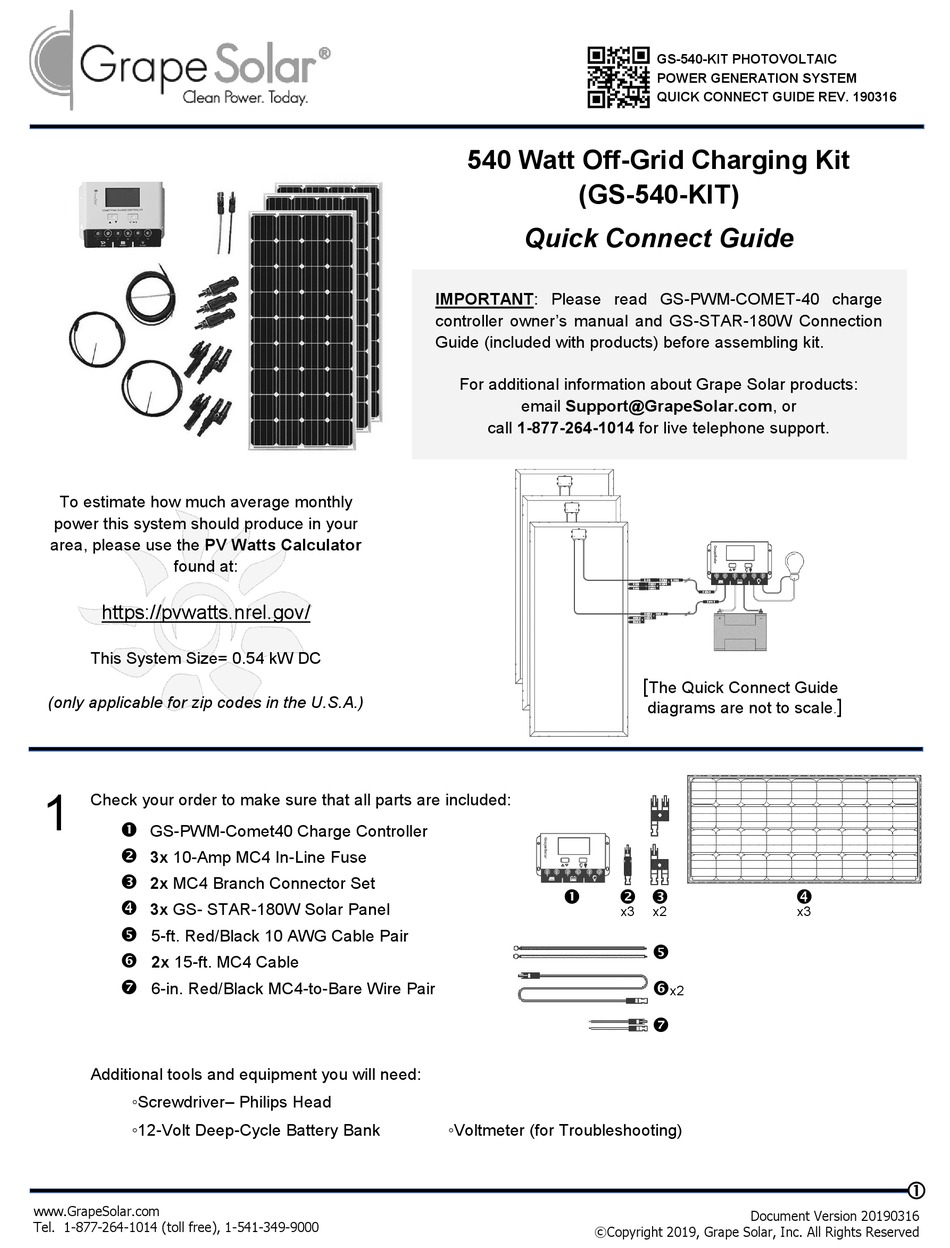

Grape Solar GS-540-KIT Quick Connect Manual

To estimate how much average monthly
power this system should produce in your
area, please use the PV Watts Calculator
found at:
https://pvwatts.nrel.gov/
This System Size= 0.54 kW DC
(only applicable for zip codes in the U.S.A.)
1
Check your order to make sure that all parts are included:

GS-PWM-Comet40 Charge Controller

3x 10-Amp MC4 In-Line Fuse

2x MC4 Branch Connector Set

3x GS- STAR-180W Solar Panel

5-ft. Red/Black 10 AWG Cable Pair

2x 15-ft. MC4 Cable

6-in. Red/Black MC4-to-Bare Wire Pair
Additional tools and equipment you will need:
◦Screwdriver– Philips Head
◦12-Volt Deep-Cycle Battery Bank
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000
540 Watt Off-Grid Charging Kit
(GS-540-KIT)
Quick Connect Guide
IMPORTANT: Please read GS-PWM-COMET-40 charge
controller owner's manual and GS-STAR-180W Connection
Guide (included with products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or
call 1-877-264-1014 for live telephone support.

◦Voltmeter (for Troubleshooting)
©Copyright 2019, Grape Solar, Inc. All Rights Reserved
GS-540-KIT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE REV. 190316
[
The Quick Connect Guide
diagrams are not to scale
  
x3 x2 x3


x2

Document Version 20190316
]
.

