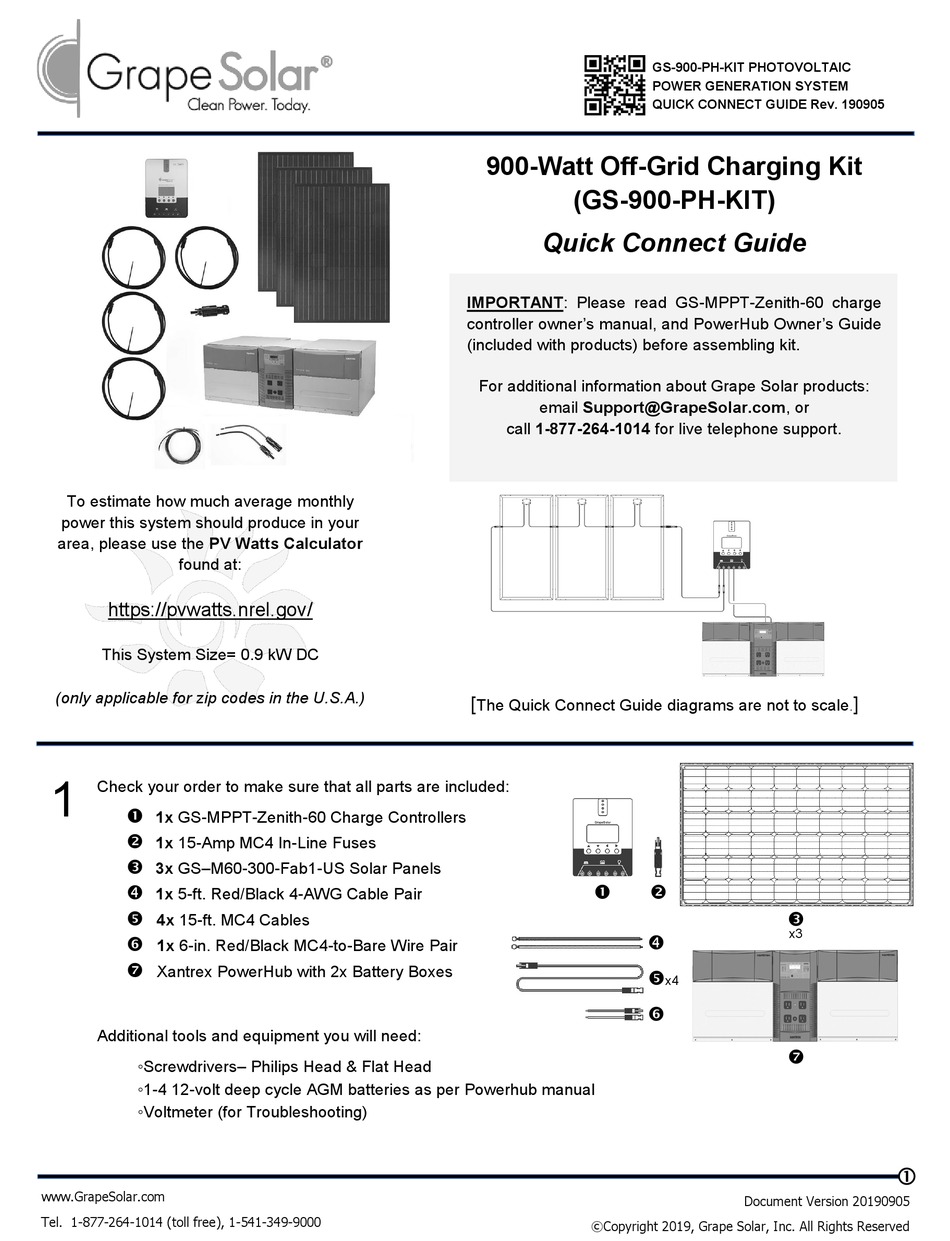

Grape Solar GS-900-PH-KIT Quick Connect Manual

To estimate how much average monthly
power this system should produce in your
area, please use the PV Watts Calculator
found at:
https://pvwatts.nrel.gov/
This System Size= 0.9 kW DC
(only applicable for zip codes in the U.S.A.)
1

Check your order to make sure that all parts are included:


1x GS-MPPT-Zenith-60 Charge Controllers

1x 15-Amp MC4 In-Line Fuses

3x GS–M60-300-Fab1-US Solar Panels

1x 5-ft. Red/Black 4-AWG Cable Pair

4x 15-ft. MC4 Cables

1x 6-in. Red/Black MC4-to-Bare Wire Pair

Xantrex PowerHub with 2x Battery Boxes
Additional tools and equipment you will need:
◦Screwdrivers– Philips Head & Flat Head
◦1-4 12-volt deep cycle AGM batteries as per Powerhub manual
◦Voltmeter (for Troubleshooting)
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000
900-Watt Off-Grid Charging Kit
(GS-900-PH-KIT)
Quick Connect Guide
IMPORTANT: Please read GS-MPPT-Zenith-60 charge
controller owner's manual, and PowerHub Owner's Guide
(included with products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or
call 1-877-264-1014 for live telephone support.
[
The Quick Connect Guide diagrams are not to scale

©Copyright 2019, Grape Solar, Inc. All Rights Reserved
GS-900-PH-KIT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 190905


x3


x4


Document Version 20190905
]
.

