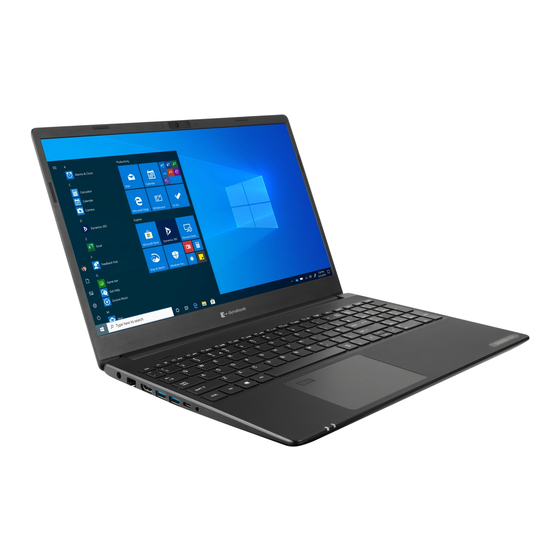

dynabook Satellite Pro L50-G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Satellite Pro L50-G and is the answer not in the manual?

Questions and answers

Related Manuals for dynabook Satellite Pro L50-G

Summary of Contents for dynabook Satellite Pro L50-G

  • Page 1 User's Manual dynabook Satellite Pro L50-G...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Legal, Regulatory, and Safety Copyright, Disclaimer and Trademarks ..........1-1 Regulatory Information ................. 1-2 Video Standard Notice ................ 1-10 OpenSSL Toolkit License Issues ............1-10 FreeType License Issues ..............1-12 ENERGY STAR® Program ..............1-16 Disposing of the computer and the computer's battery ....
  • Page 3 Specifications ..................7-1 AC Power Cord and Connectors ............7-2 Information for Wireless Devices ............7-3 Information about Intel® Authenticate ..........7-14 Accessibility ..................7-14 Ease of Access for Dynabook notebook ........... 7-15 Legal Footnotes ................... 7-18 Index User's Manual...

  • Page 4: Chapter 1 Legal, Regulatory, And Safety

    Copyright, Disclaimer and Trademarks Copyright © 2020 Dynabook Inc. All Rights Reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Dynabook Inc. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 5: Regulatory Information

    Only peripherals complying with the FCC class B limits can be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by Dynabook is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s Universal Serial Bus (USB 3.0) ports, USB Type-C™...
  • Page 6 Dynabook could void the user’s authority to operate the equipment. FCC conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 7 EMC (Electromagnetic Compatibility) standards. However, Dynabook cannot guarantee that this product still observes these EMC standards if options or cables not produced by Dynabook are connected or implemented. In this case the persons who have connected/implemented those options/cables have to provide assurance that the system (PC plus options/cables) still fulfils the required standards.
  • Page 8 Note that Canadian Department of Communications (DOC) regulations provide, that changes or modifications not expressly approved by Dynabook could void your authority to operate this equipment. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
  • Page 9 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
  • Page 10 Disposal of products The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste.
  • Page 11 Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Dynabook will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.
  • Page 12 Dynabook meets all requirements of Turkish regulation 28300 “Restriction of the use of certain hazardous substances in electrical and electronic equipment”.

  • Page 13: Video Standard Notice

    Video Standard Notice THIS PRODUCT IS LICENSED UNDER THE AVC, THE VC-1 AND MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCODING VIDEO IN COMPLIANCE WITH THE ABOVE STANDARDS ("VIDEO") AND/OR (II) DECODING AVC, VC-1 AND MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE SUCH...
  • Page 14 Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit"...

  • Page 15: Freetype License Issues

    This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
  • Page 16 Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction ============ The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license.
  • Page 17 authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project', be they named as alpha, beta or final release. `You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'.
  • Page 18 -------------- Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project', `FreeType Engine', `FreeType library', or `FreeType Distribution'.

  • Page 19: Energy Star® Program

    Dynabook is a partner in the ENERGY STAR Program and has designed this computer to meet the latest ENERGY STAR guidelines for energy efficiency. Your computer ships with the power management options preset to a...

  • Page 20: General Precautions

    To learn about Dynabook’s sustainability commitment, visit: http://emea.dynabook.com/environment General Precautions Your computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer.
  • Page 21 Liquids and corrosive chemicals. Stress injury Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. It also includes information on work space design, posture, and lighting that can help reduce physical stress.
  • Page 22 Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer. Moving the computer While the computer is designed for flexible day-to-day usage, you should exercise a few simple precautions when moving it in order to help ensure trouble-free operation.

  • Page 23: Safety Icons

    Safety Icons Safety icons are used in this manual to bring important information to your attention. Each type of message is identified as follows. Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions. A caution informs you that improper use of equipment or failure to follow instructions might cause data loss, equipment damage, or might result in minor or moderate injury.

  • Page 24: Chapter 2 Getting Started

    This chapter provides an equipment checklist, and basic information to start using your computer. If you use an operating system that was not pre-installed by Dynabook, some of the features described in this manual might not function properly. Equipment checklist Carefully unpack your computer, taking care to save the box and packaging materials for future use.

  • Page 25: Using Your Computer For The First Time

    Start The word "Start" refers to the " " button in the lower-left corner of the screen. Using your computer for the first time Be sure to read the enclosed Instruction Manual for Safety and Comfort for information on the safe and proper use of this computer. It is intended to help you be more comfortable and productive while using a notebook computer.
  • Page 26 Always use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor might cause fire or damage to the computer possibly resulting in serious injury.
  • Page 27 Figure 2-2 Connecting the power cord to the AC adaptor (3-pin plug) Either a 2-pin or 3-pin adaptor/cord is included with the computer depending on the model. Connect the DC output plug of the AC adaptor to the DC IN 19V jack on your computer.
  • Page 28 Figure 2-4 Opening the display panel 1. Display panel Product appearance depends on the model you purchased. Open and close the display panel with reasonable care. Opening it vigorously or slamming it shut might damage the computer. Be careful not to open the display panel too far as this might put stress on the display panel’s hinges and cause damage.

  • Page 29: Getting To Know Windows

    After you turn on the power for the first time, do not turn it off until you have set up the operating system. Volume cannot be adjusted during Windows Setup. Do not touch the display screen while turning on the computer. Open the display panel.
  • Page 30 You can pin your favorite apps to the Start menu as tiles in grid-like pattern, and also group them. Tiles show you dynamic information from apps without having to open them. Windows taskbar By default, the bottom of the desktop is Windows taskbar. You can see all of your currently running apps on the Windows taskbar.

  • Page 31: Turning Off The Power

    Windows Store Although many apps are pre-installed in your computer, you can also download many others from the Windows Store. You can search for and browse thousands of apps, all grouped into easy- to-find categories there. Windows Hello Windows Hello is a more personal and secure way to sign in to your Windows system, apps, and services using fingerprint, face recognition or a PIN.
  • Page 32 Make sure all disk/disc activity has stopped before removing the disk/ disc. If you turn off the power while a disk (disc) is being accessed, you might lose data or damage the disk. Never turn off the power while an application is running. Failure to do so can cause data loss.
  • Page 33 Before entering Sleep Mode, be sure to save your data. To prevent data loss, do not switch to Sleep Mode while transferring data to external media, such as USB devices, memory media, or other external memory devices. When the AC adaptor is connected, the computer will go into Sleep Mode according to the settings in the Power Options (to access it, click Start ->...
  • Page 34 If you are operating the computer on battery power, you can lengthen the overall operating time by turning it off into Hibernation Mode. Sleep Mode consumes more power while the computer is off. Sleep Mode limitations Sleep Mode will not function under the following conditions: Power is turned back on immediately after shutting down.

  • Page 35: System Recovery

    Restoring the pre-installed software from your created Recovery Media Restoring the pre-installed software from the Recovery Partition If you choose dynabook Maintenance Utility to erase the internal storage drive, all data including the operating system and recovery partition will be User's Manual...
  • Page 36 In that case, you cannot create recovery media or restore the pre- installed software from the recovery partition. Make sure that you have already created recovery media before you start dynabook Maintenance Utility. This recovery media can be used to restore your system after you have erased your internal storage drive.
  • Page 37 Turn on your computer and allow it to load the Windows operating system from the internal storage drive as normal. Insert the first blank disc into the external optical disc drive tray, or insert the USB Flash Memory into one available USB port. Click Start ->...
  • Page 38 (Power) and then select Restart. Hold down 0 (zero) key and then release this key just after the computer is power on. Select Troubleshoot -> dynabook Maintenance Utility -> dynabook Recovery Wizard. Follow the on-screen instructions to finish the recovery.

  • Page 39: Chapter 3 The Grand Tour

    Chapter 3 The Grand Tour This chapter identifies the various components of the computer. It is recommended that you become familiar with each before you operate the computer. Legal Footnote (Non-applicable Icons) For more information regarding Non-applicable Icons, refer to the Legal Footnotes section.

  • Page 40: Left Side

    Note that you must use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook. Use of an incompatible AC adaptor might cause fire or damage to the computer possibly resulting in serious injury.

  • Page 41: Right Side

    USB Type-C™ (USB One USB Type-C™ port, which complies to the 3.1 Gen1) port USB 3.1 Gen1 standard, is provided on the left side of the computer. This USB Type-C™ port supports USB 3.1 Gen1 (DC5V, 2A) with theoretical maximum transmission rate at 5Gbps.

  • Page 42: Underside

    Memory media slot This slot lets you insert an SD™/SDHC™/ SDXC™ memory card, miniSD™/microSD™ Card and MultiMediaCard™. Refer to the Memory media section for more information. Keep foreign metal objects, such as screws, staples, and paper clips, out of the Memory media slot. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.

  • Page 43: Front With The Display Open

    Figure 3-4 The underside of the computer 1. Cooling vents 3. Memory module cover 2. Stereo speakers Product appearance depends on the model you purchased. Cooling vents The cooling vents help the processor to avoid overheating. Do not block the cooling vents. Keep foreign metal objects, such as screws, staples, and paper clips, out of the cooling vents.
  • Page 44 Figure 3-5 The front of the computer with the display panel open 1. Wireless communication antennas 7. Display hinge (not shown) 2. Web Camera* 8. Power button 3. Web Camera LED* 9. Keyboard 4. Web Camera Shutter* 10. Touch Pad 5.
  • Page 45 Web Camera Web Camera is a device that allows you to record video or take photographs with your computer. You can use it for video chatting or video conferences using a communication tool. The Web Camera equipped on some models can support face recognition feature for Windows Hello.
  • Page 46 Display screen 39.6 cm (15.6") LCD screen, is configured with one of the following resolutions depending on the model you purchased: HD, 1366 horizontal x 768 vertical pixels FHD, 1920 horizontal x 1080 vertical pixels Be aware that, when the computer is operating on the AC adaptor, the image displayed on the internal screen is somewhat brighter than when it operates on battery power.

  • Page 47: Internal Hardware Components

    The actual specifications might vary depending on the model you purchased. The processor type varies depending on model. To check which type of processor is included in your model, click Start -> dynabook Support Utility -> System Information. Legal Footnote (CPU) For more information regarding CPU, refer to the Legal Footnotes section.
  • Page 48 Flashing White Indicates a problem with the computer. Disconnect the AC adaptor for several seconds, and then reconnect the AC adaptor. After that, press the power button. If it still does not operate properly, you should contact your reseller or dealer.

  • Page 49: Chapter 4 Operating Basics

    Chapter 4 Operating Basics This chapter describes the basic operations of your computer, and highlights the precautions that must be taken when using it. Using the Touch Pad The Touch Pad on the palm rest might support the following gestures: Tap once on the Touch Pad to activate an item, such as an app.

  • Page 50: The Keyboard

    Three-Finger Scroll Place three fingers down and slide them vertically or horizontally from anywhere on the Touch Pad. Slide towards left/right: switches between your open apps. Slide your fingers slowly across the Touch Pad to flip through them all. Slide up: views all your open apps in task view. Slide down: shows the desktop.
  • Page 51 The function keys (F1 ~ F12) are the 12 keys at the top of your keyboard. You can configure the function keys’ mode as "Special function mode" or "Standard F1-F12 mode" in the dynabook Setup Utility. "Special function mode" allows you to use special functions without pressing the FN key.

  • Page 52: Using The Fingerprint Sensor

    Special Standard F1- Function function mode F12 mode FN + F9 Decreases the playback volume of the computer. FN + F10 Increases the playback volume of the computer. FN + F11 Turns the sound on or off. FN + F12 Turns the Airplane mode on or off.
  • Page 53 Figure 4-2 Using the Fingerprint Sensor 1. Fingerprint sensor Fingerprint cannot be used in models that do not have a fingerprint function. Total fingerprints which can be registered are 10 pcs. Points to note about the Fingerprint Sensor Be aware of the following considerations when using the fingerprint sensor. A failure to follow these guidelines might result in damage to the sensor, sensor failure, fingerprint recognition problems or a lower fingerprint recognition success rate.

  • Page 54: Battery

    If the RTC lasting time completely runs out, the system will lose this information and the real-time clock and calendar will stop working. You can change the Real-Time Clock settings in the dynabook Setup Utility. Refer to Real-Time Clock for further information.
  • Page 55 Care and use of the battery pack This section provides the important safety precautions in order to handle your battery pack properly. Refer to the enclosed Instruction Manual for Safety and Comfort for detailed precautions and handling instructions. Charge the battery pack only in an ambient temperature from 5 through 35 degrees Celsius.
  • Page 56 The battery might not be charged depending on how the computer is being used, and the charge of battery decreases and battery might not be fully charged sometimes. Charging notice The battery might not begin charging immediately under the following conditions: The battery is extremely hot or cold (if the battery is extremely hot, it might not charge at all).
  • Page 57 With repeated discharges and recharges, the battery capacity will gradually decrease. In view of this, it is noted that an often used, older battery will not operate for as long as a new battery even when both are fully charged. Maximizing battery operating time The usefulness of a battery depends on how long it can supply power on a single charge, while how long the charge lasts in a battery depends on:...

  • Page 58: Additional Memory Module

    When installing or removing a memory module, you must ensure that you do not touch any other internal areas of the computer. Use only memory modules approved by Dynabook. Do not try to install or remove a memory module under the following conditions.
  • Page 59 Additional memory module is a precision electronic component that might be fatally damaged by static electricity. Since the human body can carry static electricity, it is important that you discharge yourself before touching or installing any additional memory modules. To discharge your body’s static electricity, simply touch any metal close to you with bare hands.
  • Page 60 Align the notch of the memory module with that of the memory slot and gently insert the module into the slot at about a 30 degree angle before holding it down until the latches on either side snap into place. Figure 4-4 Seating the memory module 1.
  • Page 61 Seat the memory module cover in place and secure it with the screw. Ensure that the memory module cover is firmly closed. Figure 4-5 Seating the memory module cover 1. Memory module cover 2. Screw Turn your computer over. 10. Connect the AC adaptor and turn on the computer. Make sure that the added memory is recognized.

  • Page 62: Memory Media

    Do not touch the connectors on the memory module or on the computer. Debris on the connectors might cause memory access problems. Figure 4-6 Removing the memory module 1. Latches Seat the memory module cover in place and secure it with the screw. Ensure that the memory module cover is firmly closed.
  • Page 63 Figure 4-7 Examples of memory media Secure Digital (SD) Card microSD card adaptor and microSD card MultiMediaCard (MMC) Points to note about the memory media card SD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music Initiative), which is a technology adopted to prevent unlawful copy or playback of digital music.
  • Page 64 To format all areas of the memory card, including the protected area, you must obtain an appropriate application that applies the copy protection system. Media care Observe the following precautions when handling the card. Do not twist or bend cards. Do not expose cards to liquids or store in humid areas or lay media close to containers of liquid.
  • Page 65 Press the memory media gently until it clicks into place. Figure 4-8 Inserting memory media 1. Memory media slot 2. Memory media Make sure that the memory media is oriented properly before you insert it. If you insert the media in wrong direction, you might not be able to remove it.

  • Page 66: Smart Card

    Smart Card A Smart Card is a credit card sized plastic card. An extremely thin integrated circuit (IC chip) is embedded into the card on which information can be recorded. These cards can be used for a wide variety of applications including telephone related and electronic monetary payments.
  • Page 67 As the port operation of all external monitors have not been confirmed, some display devices might not function properly. To connect an HDMI™-compatible display device, do the following: To connect a device to the HDMI™ out port, you must purchase a suitable HDMI™...

  • Page 68: Lan

    While communication is being carried out The computer has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) or Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T). This section describes how to connect/disconnect to a LAN. The Wake-up on LAN function consumes power even when the system is off.

  • Page 69: Wireless Display

    Do not connect any power supplying device to the LAN cable that is connected to the LAN jack. Otherwise, malfunctions or damage might occur. Turn off the power to all external devices connected to the computer. Plug one end of the cable into the LAN jack. Press gently until you hear the latch click into place.

  • Page 70: Security Lock

    AC adaptor to be kept at each site in order to remove the need to carry the adaptor with you always. Not all the accessories are available in your region. Contact your reseller or dynabook dealer for more information. User's Manual 4-22...

  • Page 71: Sound System And Video Mode

    Sound System and Video mode This section describes some of the audio control functions. Volume Mixer The Volume Mixer utility lets you control the audio volume for playback of devices and applications under Windows. To launch the Volume Mixer utility, right-click on the speaker icon on the Windows Taskbar, and then select Open Volume Mixer from the sub menu.
  • Page 72 Microphone Array This tab allows you to set Main Volume, Microphone Effects and Default Format. Device advanced settings This tab allows you to choose the type of headphone or microphone and select devices when an external device is plugged in. To choose the type of headphone or microphone, do the following: Plug a headphone or microphone into the headphone/microphone jack.
  • Page 73 If that occurs, adjust the resolution of display, lowering it until the screen is displayed properly. User's Manual 4-25...

  • Page 74: Chapter 5 Utilities And Advanced Usage

    OFF, which includes Sleep Mode, Hibernation Mode, and shutdown state. To set USB Sleep and Charge feature, go to Advanced -> Sleep and Charge in the dynabook Setup Utility. Refer to dynabook Setup Utility to enter it.
  • Page 75 When the Sleep and Charge function is enabled, USB bus power (DC5V) is supplied to compatible ports even when the power of the computer is turned OFF. USB bus power (DC5V) is similarly supplied to the external devices which are connected to the compatible ports. However, some external devices cannot be charged solely by supplying USB bus power (DC5V).
  • Page 76 “System ON CDP Charge Mode” and “USB Sleep and Charge function”. System Password You can set a password in the dynabook Setup Utility in order to restrict access to the computer. Follow the on-screen instructions to set the passwords.
  • Page 77 Support Utility dynabook Support Utility allows your computer to automatically search for alerts from Dynabook that are specific to your computer system and its programs. On the initial Internet connection, your computer will send some limited system information to Dynabook periodically.

  • Page 78: Special Features

    Setup Utility dynabook Setup Utility provides you a menu-based user interface so that you can easily view and change BIOS settings. To enter the dynabook Setup Utility, do the following: Save your work. Click Start -> (Power) and then select Restart.
  • Page 79 Two levels of password security, supervisor and user, are available to prevent unauthorized access to your computer. You can enable/disable this feature under Security tab in dynabook Setup Utility. Intelligent power A microprocessor in the computer's intelligent power supply detects the battery charge,...
  • Page 80 Hibernation Mode This feature lets you turn off the power to the computer without exiting from your software. The contents of main memory are automatically saved to the internal storage drive so that when you next turn on the power again, you can continue working right where you left off.

  • Page 81: Troubleshooting

    Chapter 6 Troubleshooting Dynabook has designed this computer for durability, however, should problems occur you are able to use the procedures detailed in this chapter to help determine the cause. You should become familiar with this chapter as knowing what might go wrong can help prevent problems from occurring in the first place.
  • Page 82 Check all cables to ensure that they are correctly and firmly attached to the computer - loose cables can cause signal errors. Inspect all connecting cables for loose wires and all connectors for loose pins. Check that your disc media is correctly loaded Always try to make detailed notes of your observations and keep them in a permanent error log - this helps you to describe your problems to Technical Support.
  • Page 83 Hardware If you cannot find a software problem, you should then check the setup and configuration of your hardware. First run through the items in the preliminary checklist as described previously then, if you still cannot correct the problem, try to identify the source.

  • Page 84: Hardware And System Checklist

    By holding down one of the following keys during startup, your computer can load the following advanced options. Advanced option dynabook Setup Utility Boot Menu 0 (zero) Recovery options If your computer starts to load the Operating System instead of desired advanced options, do the following: Click Start ->...
  • Page 85 Overheating power down If the processor's temperature reaches an unacceptably high level with either setting, the computer automatically shuts down to prevent any damage. In this instance, all unsaved data in memory is lost. Problem Procedure Computer shuts Leave the computer off until it reaches room down automatically.
  • Page 86 The lasting time of the Real-Time Clock (RTC) has and system date/ run out. You must set the date and time in the time are lost. dynabook Setup Utility by using the following steps: Launch the dynabook Setup Utility. Refer to the...
  • Page 87 Check to see whether there is a disc in the external boot from internal optical disc drive - if so remove it and try to start storage the computer again. If this has no effect, check the Boot Priority Options setting under Boot within the dynabook Setup Utility. User's Manual...
  • Page 88 Problem Procedure Slow performance The files on the internal storage drive might be fragmented. In this instance you should run the disk defragmentation utility to check the condition of your files and the internal storage drive. Refer to the operating system's documentation or online Help File for further information on operating and using the Defragmentation utility.
  • Page 89 Touch Pad Problem Procedure The Touch Pad does Check the device settings. not work. Click Start -> (Settings) -> Devices -> Touchpad. Mouse pointer does In this instance, the system might be busy. Try not respond to moving the mouse again after waiting a short pointing device while.
  • Page 90 Problem Procedure Double-clicking does In this instance, you should initially try changing not work the double-click speed setting within the Mouse Control utility. To access this utility, click Start -> Windows System -> Control Panel -> Hardware and Sound -> Mouse. Within the Mouse Properties window, click the Buttons tab.
  • Page 91 Restart. Hold down the F2 key and then release this key just after the computer is power on to show the dynabook Setup Utility. Select Security -> BIOS Password -> Supervisor, and then register the Supervisor Password. (If the User Password has been registered, clear it first.)
  • Page 92 Sleep and Charge To enable the Sleep and Charge function, go to function. Advanced -> Sleep and Charge in the dynabook Setup Utility. When there is a current overflow of the external device connected to the compatible port, USB bus power (DC5V) supply might be stopped for safety reasons.
  • Page 93 Problem Procedure The "USB Wakeup When "System ON CDP Charge Mode" or "USB function" does not Sleep and Charge function" is enabled, the "USB work. WakeUp" function does not work for ports that support the Sleep and Charge function. In that case, use a USB port that does not have the USB Sleep and Charge function or change to disable both "System ON CDP Charge Mode"...
  • Page 94 Problem Procedure Monitor does not After confirming that the monitor's power switch is turn on on, check the connections to make sure that the power cord/adaptor is firmly connected to the monitor and to a working power outlet. No display Try adjusting the contrast and brightness controls on the external monitor.

  • Page 95: Technical Support

    Problem Procedure Cannot access LAN Check for a firm cable connection between the LAN jack and the LAN hub. Wake-up on LAN Make sure the AC adaptor is connected. The does not work Wake-up on LAN function consumes power even when the system is off.
  • Page 96 - they are your best resource for current information and support. Technical support If you are still unable to solve the problem and suspect that it is hardwarerelated, read the enclosed warranty booklet or visit the technical support website http://emea.dynabook.com/support-country-selector User's Manual 6-16...

  • Page 97: Appendix Specifications

    Chapter 7 Appendix Specifications This section summarizes the technical specifications of the computer. Physical Dimensions The following physical dimensions do not include parts that extend beyond the main body. The physical dimensions vary depending on the model you purchased. Size Approximately 361 (w) x 244 (d) x 19.9 (h) millimeters (not including parts that extend beyond the main body) Environmental Requirements...

  • Page 98: Ac Power Cord And Connectors

    AC Power Cord and Connectors The AC input plug of the power cord must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Wire size: Minimum 0.75 mm...

  • Page 99: Information For Wireless Devices

    United Kingdom, South Africa, Middle-East UL approved BS approved Australia Europe, Africa, South Africa, Middle-East AS approved Approved by the appropriate agency Canada China CSA approved CCC approved State of Israel Africa Approved by the appropriate SII approved agency Switzerland Italy Approved by the appropriate Approved by the appropriate...
  • Page 100 Because wireless products operate within the guidelines found in radio frequency safety standards and recommendations, Dynabook believes wireless products are safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
  • Page 101 If this occurs, the outsider might illegally access your system, eavesdrop, or cause the loss or destruction of stored data. Dynabook is not liable for the loss of data due to eavesdropping or illegal access through the wireless LAN and the damage thereof. Card Specifications Compatibility IEEE 802.11 Standard for Wireless LANs...
  • Page 102 Country/region where the product was purchased Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN wireless networking products have been designed for operation in the license-free 2.4 GHz and 5 GHz band, local radio regulations might impose a number of limitations to the use of wireless communication equipment.
  • Page 103 Worldwide operation ® The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band, which is license-free and compatible with radio systems in most countries in the world. Radio links You can easily establish links between two or more devices, with these links being maintained even if the devices are not within a line-of-sight of each other.
  • Page 104 Russian Limited Using SRD (Short Range Device) with Federation: implementation FHSS (Frequency-Hopping Spread Spectrum) modulation. Maximum 2.5mW (4dBm) EIRP (Equivalent Isotropically Radiated Power) is permitted to use. Maximum 100mW (20dBm) EIRP is permitted to use with the following conditions: Permitted to use SRD for outdoor applications without restriction on installation height only for purposes of gathering telemetry...
  • Page 105 Using SRD with DSSS (Direct Sequence Spread Spectrum) and other than FHSS wideband modulation. Maximum EIRP density is 2mW/ MHz. Maximum100mW (20dBm) EIRP is permitted to use. Maximum EIRP density is 20mW/ MHz. Maximum 100mW (20dBm) EIRP is permitted to use with the following condition: It is permitted to use SRD for outdoor applications only for...
  • Page 106 SAR Value 1.8 W/kg (10g)* Maximum Power Output (2400 - 2483.5 MHz) IEEE802.11 b/ Maximum 100mW (20dBm) EIRP g/n mode / Bluetooth (2400 - 2483.5 MHz) BLE Maximum 10mW (10dBm) EIRP (5150 - 5725 MHz) IEEE802.11 a/n/ Maximum 200mW (23dBm) EIRP ac mode The low band 5.15 - 5.35 GHz is for indoor use only.
  • Page 107 Canada - Industry Canada (IC) This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 108 Caution: Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 5.15 to 5.25GHz frequency range. High-power radars are allocated as primary users (i.e. priority users) of the bands 5.25 to 5.35GHz and 5.65 to 5.85GHz and that these radars could cause interference and/or damage to LE-LAN devices.
  • Page 109 stations for mobile object identification systems (RFID) used in factory production lines (Other Radio Stations). Before using this equipment, ensure that it does not interfere with any of the equipment listed above. If this equipment causes RF interference to other radio stations, promptly change the frequency being used, change the location of use, or turn off the source of emissions.

  • Page 110: Information About Intel® Authenticate

    Accessibility options provided by Windows 10 operating system are accessible through Ease of Access features of Windows settings. It allows you customise your Dynabook notebook the way you want to use it. To see the available features in one of the following ways: Go to Start and select (Settings).

  • Page 111: Ease Of Access For Dynabook Notebook

    Ease of Access for Dynabook notebook Ease of access options provides those with learning, vision, hearing, mobility and other impairments with the following features categories. Vision Display: To change of text similar to zoom in or out in browser or using the magnifying glass option.
  • Page 112 Interaction Speech: Talk instead of type. Press the (Windows key) + H to start dictation or select the microphone button on the touch keyboard. Cortana, the Windows 10 built-in digital assistant can help with setting reminders, opening apps, finding facts, and sending emails and text messages.
  • Page 113 Sound Systems and Video mode section for more information. Utilities and Advanced Usage: Your computer comes with pre- installed utilities such as dynabook Settings, eco Utility, USB Charging, USB Sleep and Charge, System ON CDP Charge, System Password, User Password, Supervisor Password, Pre-Boot Authentication, dynabook Service Station, dynabook Setup Utility, and dynabook Maintenance Utility.

  • Page 114: Legal Footnotes

    Hibernation Mode, Sleep Mode, Hibernation Mode, USB Wakeup function, Wake-up on Wireless LAN, and Heat dispersal. Refer to Special features section for more information. Troubleshooting: Dynabook has designed this computer for durability, however, should problems occur you are able to use the procedures detailed in the Troubleshooting section to help determine the cause.
  • Page 115 Published battery life numbers are achieved on select models and configurations tested by Dynabook at the time of publication. Recharge time varies depending on usage. Battery might not charge while computer is consuming full power.
  • Page 116 such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity might vary. Over a period of time, and depending on the usage of the computer, the brightness of the LCD screen will deteriorate. This is an intrinsic characteristic of LCD technology.

  • Page 117: Index

    Index External monitor problems 6-14 AC adaptor additional 4-22 connecting 2-2 DC IN 19V jack 3-2 Hard disk drive automatic power off 5-6 Battery extending life 4-9 Keyboard monitoring capacity 4-8 function keys 4-3 real time clock 4-6 Function keys F1...F12 4-3 save mode 5-6 problems 6-6 Windows special keys 4-4...
  • Page 118 Memory media slot 4-14 microSD/SDHC/SDXC Card note 4-15 Recovery hard disk drive 2-15 Recovery Media 2-14 Moving the computer 1-19 SD/SDHC/SDXC Card Password formatting 4-15 power on 5-6 Security lock 4-22 Power Hibernation Mode 2-11 Sleep Mode panel on/off 5-6 setting 2-9 Shut Down mode 2-8 System automatic 5-6...
