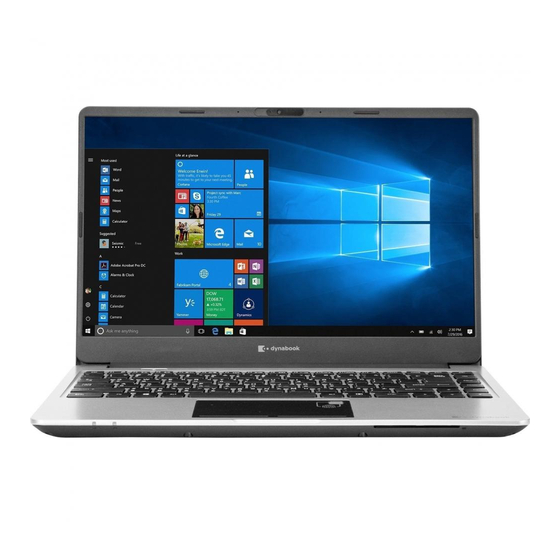

dynabook Satellite Pro L40-G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Satellite Pro L40-G and is the answer not in the manual?

Questions and answers

Related Manuals for dynabook Satellite Pro L40-G

Summary of Contents for dynabook Satellite Pro L40-G

  • Page 1 User's Manual dynabook Satellite Pro L40-G...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Legal, Regulatory, and Safety Copyright, Disclaimer and Trademarks ..........1-1 Regulatory Information ................. 1-2 Video Standard Notice ................1-6 OpenSSL Toolkit License Issues ............1-7 FreeType License Issues ..............1-9 ENERGY STAR® Program ..............1-13 Disposing of the computer and the computer's battery ....
  • Page 3 Specifications ..................7-1 AC Power Cord and Connectors ............7-2 Information for Wireless Devices ............7-3 Information about Intel® Authenticate ..........7-11 Accessibility ..................7-11 Ease of Access for Dynabook notebook ........... 7-11 Legal Footnotes ................... 7-15 Index User's Manual...

  • Page 4: Chapter 1 Legal, Regulatory, And Safety

    Copyright, Disclaimer and Trademarks Copyright © 2020 Dynabook Inc. All Rights Reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Dynabook Inc. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 5: Regulatory Information

    EMC (Electromagnetic Compatibility) standards. However, Dynabook cannot guarantee that this product still observes these EMC standards if options or cables not produced by Dynabook are connected or implemented. In this case the persons who have connected/implemented those options/cables have to provide assurance that the system (PC plus...
  • Page 6 This product was designed to fulfil the EMC (Electromagnetic Compatibility) requirements to be observed for so-called “Residential, commercial and light industry environments”. Dynabook do not recommend the use of this product in working environments other than the above listed working environment.
  • Page 7 Disposal of products The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste.
  • Page 8 Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Dynabook will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.

  • Page 9: Video Standard Notice

    Dynabook meets all requirements of Turkish regulation 28300 “Restriction of the use of certain hazardous substances in electrical and electronic equipment”.

  • Page 10: Openssl Toolkit License Issues

    OpenSSL Toolkit License Issues LICENSE ISSUES ============== The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses.
  • Page 11 LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

  • Page 12: Freetype License Issues

    All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)" The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related :-). If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:...
  • Page 13 This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike.
  • Page 14 stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this. The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg.
  • Page 15 materials: `FreeType Project', `FreeType Engine', `FreeType library', or `FreeType Distribution'. As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it.

  • Page 16: Energy Star® Program

    Dynabook is a partner in the ENERGY STAR Program and has designed this computer to meet the latest ENERGY STAR guidelines for energy efficiency. Your computer ships with the power management options preset to a...

  • Page 17: General Precautions

    To learn about Dynabook’s sustainability commitment, visit: http://emea.dynabook.com/environment General Precautions Your computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer.
  • Page 18 Liquids and corrosive chemicals. Stress injury Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. It also includes information on work space design, posture, and lighting that can help reduce physical stress.
  • Page 19 Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer. Moving the computer While the computer is designed for flexible day-to-day usage, you should exercise a few simple precautions when moving it in order to help ensure trouble-free operation.

  • Page 20: Safety Icons

    Safety Icons Safety icons are used in this manual to bring important information to your attention. Each type of message is identified as follows. Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions. A caution informs you that improper use of equipment or failure to follow instructions might cause data loss, equipment damage, or might result in minor or moderate injury.

  • Page 21: Chapter 2 Getting Started

    This chapter provides an equipment checklist, and basic information to start using your computer. If you use an operating system that was not pre-installed by Dynabook, some of the features described in this manual might not function properly. Equipment checklist Carefully unpack your computer, taking care to save the box and packaging materials for future use.

  • Page 22: Using Your Computer For The First Time

    Start The word "Start" refers to the " " button in the lower-left corner of the screen. Using your computer for the first time Be sure to read the enclosed Instruction Manual for Safety and Comfort for information on the safe and proper use of this computer. It is intended to help you be more comfortable and productive while using a notebook computer.
  • Page 23 Always use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor might cause fire or damage to the computer possibly resulting in serious injury.
  • Page 24 Figure 2-2 Connecting the power cord to the AC adaptor (3-pin plug) Either a 2-pin or 3-pin adaptor/cord is included with the computer depending on the model. Connect the DC output plug of the AC adaptor to the DC IN 19V jack on your computer.
  • Page 25 Figure 2-4 Opening the display panel 1. Display panel Product appearance depends on the model you purchased. Open and close the display panel with reasonable care. Opening it vigorously or slamming it shut might damage the computer. Be careful not to open the display panel too far as this might put stress on the display panel’s hinges and cause damage.

  • Page 26: Getting To Know Windows

    After you turn on the power for the first time, do not turn it off until you have set up the operating system. Volume cannot be adjusted during Windows Setup. Do not touch the display screen while turning on the computer. Open the display panel.
  • Page 27 You can pin your favorite apps to the Start menu as tiles in grid-like pattern, and also group them. Tiles show you dynamic information from apps without having to open them. Windows taskbar By default, the bottom of the desktop is Windows taskbar. You can see all of your currently running apps on the Windows taskbar.

  • Page 28: Turning Off The Power

    Windows Store Although many apps are pre-installed in your computer, you can also download many others from the Windows Store. You can search for and browse thousands of apps, all grouped into easy- to-find categories there. Windows Hello Windows Hello is a more personal and secure way to sign in to your Windows system, apps, and services using fingerprint or a PIN.
  • Page 29 Never turn off the power, disconnect an external storage device, or remove storage media during data read/write. Failure to do so can cause data loss. Click Start -> (Power) and then select Shut down. Turn off any peripheral devices connected to your computer. Do not turn the computer or peripheral devices back on immediately.
  • Page 30 When the AC adaptor is connected, the computer will go into Sleep Mode according to the settings in the Power Options (to access it, click Start -> Windows System -> Control Panel -> System and Security -> Power Options.) To restore the operation of the computer from Sleep Mode, press and hold the power button for a short amount of time.
  • Page 31 Memory circuits are exposed to static electricity or electrical noise. Hibernation Mode The Hibernation Mode feature saves the contents of memory to the internal storage drive when the computer is turned off so that, the next time it is turned on, the previous state is restored. Note that the Hibernation Mode feature does not save the status of any peripheral devices connected to the computer.

  • Page 32: System Recovery

    Media Restoring the pre-installed software from the Recovery Partition If you choose dynabook Maintenance Utility to erase the internal storage drive, all data including the operating system and recovery partition will be deleted. In that case, you cannot create recovery media or restore the pre- installed software from the recovery partition.
  • Page 33 Be sure to close all other software programs. Do not run software such as screen savers which can put a heavy load on the CPU. Operate the computer at full power. Do not use power-saving features. Do not write to the media when the virus check software is running. Wait for it to finish, then disable virus detection programs including any software that checks files automatically in the background.
  • Page 34 Restoring the pre-installed software from your created Recovery Media If the pre-installed files are damaged, you are able to use the Recovery Media you have created to restore the computer to the state it was in when you originally received it. To perform this restoration, do the following: Make sure that the AC adaptor is connected during the restoring process.
  • Page 35 (Power) and then select Restart. Hold down 0 (zero) key and then release this key just after the computer is power on. Select Troubleshoot -> dynabook Maintenance Utility -> dynabook Recovery Wizard. Follow the on-screen instructions to finish the recovery.

  • Page 36: Chapter 3 The Grand Tour

    Chapter 3 The Grand Tour This chapter identifies the various components of the computer. It is recommended that you become familiar with each before you operate the computer. Legal Footnote (Non-applicable Icons) For more information regarding Non-applicable Icons, refer to the Legal Footnotes section.

  • Page 37: Left Side

    Note that you must use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook. Use of an incompatible AC adaptor might cause fire or damage to the computer possibly resulting in serious injury.

  • Page 38: Right Side

    Universal Serial Bus One type-A Universal Serial Bus port, which (USB 3.1 Gen1) port complies to the USB 3.1 standard, is provided on the left side of the computer. USB 3.1 port is compliant with USB 3.1 standard and backward compatible with USB 2.0 devices. The port with the icon ( ) has Sleep and Charge function.
  • Page 39 Figure 3-3 The right side of the computer 1. Memory media slot 3. Cooling vents* 2. Universal Serial Bus (USB 3.1 Gen1) 4. Security lock slot port * Provided with some models. Product appearance depends on the model you purchased. Memory media slot This slot lets you insert a micro SD™/SDHC™/ SDXC™...

  • Page 40: Underside

    Do not block the cooling vents. Keep foreign metal objects, such as screws, staples, and paper clips, out of the cooling vents. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury. Carefully clean the dust on the surface of the cooling vents using a soft cloth.

  • Page 41: Front With The Display Open

    Front with the display open This section shows the computer with the display panel open. In order to open the display, lift up the display panel and position it at a comfortable viewing angle for you. Figure 3-5 The front of the computer with the display panel open 1.
  • Page 42 It is highly recommended to use Windows Hello Face indoors. Operating outdoors might cause enrollment/sign-in failure due to the possible sunlight affection. When enrolling your face to Windows Hello, please make sure that there is no other face in preview of Windows Hello setup dialog. While web camera is capturing your face, make sure that your face is in front of the web camera, and you look directly at it.

  • Page 43: Internal Hardware Components

    The actual specifications might vary depending on the model you purchased. The processor type varies depending on model. To check which type of processor is included in your model, click Start -> dynabook Support Utility -> System Information. Legal Footnote (CPU) For more information regarding CPU, refer to the Legal Footnotes section.

  • Page 44: Power Condition Descriptions

    Your computer is equipped with a "Solid-State Drive (SSD)". In this manual, the word "internal storage drive" refers to SSD unless otherwise stated. SSD is a large-capacity storage device which uses Solid-State Memory in place of a magnetic disk of the hard disk. Under certain unusual conditions of prolonged non-use and/or exposure to high temperatures, the SSD might be vulnerable to data retention errors.
  • Page 45 the battery pack falls to a normal range, charging will resume. This process occurs regardless of whether the computer's power is on or off. Power indicator Check the Power indicator to determine the power status of the computer. The following indicator conditions should be noted: White Indicates that the computer is turned on.

  • Page 46: Chapter 4 Operating Basics

    Chapter 4 Operating Basics This chapter describes the basic operations of your computer, and highlights the precautions that must be taken when using it. Using the Touch Pad The Touch Pad on the palm rest might support the following gestures: Tap once on the Touch Pad to activate an item, such as an app.

  • Page 47: The Keyboard

    Three-Finger Scroll Place three fingers down and slide them vertically or horizontally from anywhere on the Touch Pad. Slide towards left/right: switches between your open apps. Slide your fingers slowly across the Touch Pad to flip through them all. Slide up: views all your open apps in task view. Slide down: shows the desktop.
  • Page 48 The function keys (F1 ~ F12) are the 12 keys at the top of your keyboard. You can configure the function keys’ mode as "Special function mode" or "Standard F1-F12 mode" in the dynabook Setup Utility. "Special function mode" allows you to use special functions without pressing the FN key.

  • Page 49: Using The Fingerprint Sensor

    Special Standard F1- Function function mode F12 mode FN + F8 Moves media forward. FN + F9 Decreases the playback volume of the computer. FN + F10 Increases the playback volume of the computer. FN + F11 Turns the sound on or off. FN + F12 Turns the Airplane mode on or off.
  • Page 50 Figure 4-2 Using the Fingerprint Sensor 1. Fingerprint sensor Fingerprint cannot be used in models that do not have a fingerprint function. Total fingerprints which can be registered are 10 pcs per account. Points to note about the Fingerprint Sensor Be aware of the following considerations when using the fingerprint sensor.

  • Page 51: Battery

    If the RTC lasting time completely runs out, the system will lose this information and the real-time clock and calendar will stop working. You can change the Real-Time Clock settings in the dynabook Setup Utility. Refer to Real-Time Clock for further information.
  • Page 52 Care and use of the battery pack This section provides the important safety precautions in order to handle your battery pack properly. Refer to the enclosed Instruction Manual for Safety and Comfort for detailed precautions and handling instructions. Charge the battery pack only in an ambient temperature from 5 through 35 degrees Celsius.
  • Page 53 The battery might not be charged depending on how the computer is being used, and the charge of battery decreases and battery might not be fully charged sometimes. Charging notice The battery might not begin charging immediately under the following conditions: The battery is extremely hot or cold (if the battery is extremely hot, it might not charge at all).
  • Page 54 With repeated discharges and recharges, the battery capacity will gradually decrease. In view of this, it is noted that an often used, older battery will not operate for as long as a new battery even when both are fully charged. Maximizing battery operating time The usefulness of a battery depends on how long it can supply power on a single charge, while how long the charge lasts in a battery depends on:...

  • Page 55: Memory Media

    Turn off the computer's power. Disconnect the AC adaptor and turn on the computer's power. If it does not turn on then go to Step 4. Operate the computer on battery power for five minutes. If you find that the battery pack has at least five minutes of operating time, continue operating until the battery pack is fully discharged.
  • Page 56 Memory media format New media cards are formatted according to specific standards. If you wish to reformat a media card, be sure to do so with a device that uses media cards. Formatting a memory media card Memory media cards are sold already formatted in conformity to specific standards.
  • Page 57 Insert the memory media into the memory media slot on your computer. Press the memory media gently until it clicks into place. Figure 4-4 Inserting memory media 1. Memory media slot 2. Memory media Make sure that the memory media is oriented properly before you insert it.

  • Page 58: Smart Card

    Smart Card A Smart Card is a credit card sized plastic card. An extremely thin integrated circuit (IC chip) is embedded into the card on which information can be recorded. These cards can be used for a wide variety of applications including telephone related and electronic monetary payments.
  • Page 59 As the port operation of all external monitors have not been confirmed, some display devices might not function properly. To connect an HDMI™-compatible display device, do the following: To connect a device to the HDMI™ out port, you must purchase a suitable HDMI™...

  • Page 60: Lan

    While communication is being carried out The computer has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) or Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T). Some models are equipped with a LAN jack on the left side of the computer.

  • Page 61: Wireless Display

    Do not connect any power supplying device to the LAN cable that is connected to the LAN jack. Otherwise, malfunctions or damage might occur. Turn off the power to all external devices connected to the computer. Plug one end of the cable into the LAN jack. Press gently until you hear the latch click into place.

  • Page 62: Security Lock

    AC adaptor to be kept at each site in order to remove the need to carry the adaptor with you always. Not all the accessories are available in your region. Contact your reseller or dynabook dealer for more information. User's Manual 4-17...

  • Page 63: Sound System And Video Mode

    Sound System and Video mode This section describes some of the audio control functions. Volume Mixer The Volume Mixer utility lets you control the audio volume for playback of devices and applications under Windows. To launch the Volume Mixer utility, right-click on the speaker icon on the Windows Taskbar, and then select Open Volume Mixer from the sub menu.
  • Page 64 Microphone Array This tab allows you to set Main Volume, Microphone Effects and Default Format. Device advanced settings This tab allows you to choose the type of headphone or microphone and select devices when an external device is plugged in. To choose the type of headphone or microphone, do the following: Plug a headphone or microphone into the headphone/microphone jack.
  • Page 65 If that occurs, adjust the resolution of display, lowering it until the screen is displayed properly. User's Manual 4-20...

  • Page 66: Chapter 5 Utilities And Advanced Usage

    OFF, which includes Sleep Mode, Hibernation Mode, and shutdown state. To set USB Sleep and Charge feature, go to Advanced -> Sleep and Charge in the dynabook Setup Utility. Refer to dynabook Setup Utility to enter it.
  • Page 67 When the Sleep and Charge function is enabled, USB bus power (DC5V) is supplied to compatible ports even when the power of the computer is turned OFF. USB bus power (DC5V) is similarly supplied to the external devices which are connected to the compatible ports. However, some external devices cannot be charged solely by supplying USB bus power (DC5V).
  • Page 68 “System ON CDP Charge Mode” and “USB Sleep and Charge function”. System Password You can set a password in the dynabook Setup Utility in order to restrict access to the computer. Follow the on-screen instructions to set the passwords.
  • Page 69 Support Utility dynabook Support Utility allows your computer to automatically search for alerts from Dynabook that are specific to your computer system and its programs. On the initial Internet connection, your computer will send some limited system information to Dynabook periodically.

  • Page 70: Special Features

    Setup Utility dynabook Setup Utility provides you a menu-based user interface so that you can easily view and change BIOS settings. To enter the dynabook Setup Utility, do the following: Save your work. Click Start -> (Power) and then select Restart.
  • Page 71 Two levels of password security, supervisor and user, are available to prevent unauthorized access to your computer. You can enable/disable this feature under Security tab in dynabook Setup Utility. Intelligent power A microprocessor in the computer's intelligent power supply detects the battery charge,...
  • Page 72 Hibernation Mode This feature lets you turn off the power to the computer without exiting from your software. The contents of main memory are automatically saved to the internal storage drive so that when you next turn on the power again, you can continue working right where you left off.

  • Page 73: Troubleshooting

    Chapter 6 Troubleshooting Dynabook has designed this computer for durability, however, should problems occur you are able to use the procedures detailed in this chapter to help determine the cause. You should become familiar with this chapter as knowing what might go wrong can help prevent problems from occurring in the first place.
  • Page 74 Check all cables to ensure that they are correctly and firmly attached to the computer - loose cables can cause signal errors. Inspect all connecting cables for loose wires and all connectors for loose pins. Check that your disc media is correctly loaded Always try to make detailed notes of your observations and keep them in a permanent error log - this helps you to describe your problems to Technical Support.
  • Page 75 Hardware If you cannot find a software problem, you should then check the setup and configuration of your hardware. First run through the items in the preliminary checklist as described previously then, if you still cannot correct the problem, try to identify the source.

  • Page 76: Hardware And System Checklist

    By holding down one of the following keys during startup, your computer can load the following advanced options. Advanced option dynabook Setup Utility Boot Menu 0 (zero) Recovery options If your computer starts to load the Operating System instead of desired advanced options, do the following: Click Start ->...
  • Page 77 Overheating power down If the processor's temperature reaches an unacceptably high level with either setting, the computer automatically shuts down to prevent any damage. In this instance, all unsaved data in memory is lost. Problem Procedure Computer shuts Leave the computer off until it reaches room down automatically.
  • Page 78 The lasting time of the Real-Time Clock (RTC) has and system date/ run out. You must set the date and time in the time are lost. dynabook Setup Utility by using the following steps: Launch the dynabook Setup Utility. Refer to the...
  • Page 79 Check to see whether there is a disc in the external boot from internal optical disc drive - if so remove it and try to start storage the computer again. If this has no effect, check the Boot Priority Options setting under Boot within the dynabook Setup Utility. User's Manual...
  • Page 80 Problem Procedure Slow performance The files on the internal storage drive might be fragmented. In this instance you should run the disk defragmentation utility to check the condition of your files and the internal storage drive. Refer to the operating system's documentation or online Help File for further information on operating and using the Defragmentation utility.
  • Page 81 Problem Procedure Mouse pointer does In this instance, the system might be busy. Try not respond to moving the mouse again after waiting a short pointing device while. operation Double-tapping In this instance, you should initially try changing (Touch Pad) does the double-click speed setting within the Mouse not work Control utility.
  • Page 82 Problem Procedure Double-clicking does In this instance, you should initially try changing not work the double-click speed setting within the Mouse Control utility. To access this utility, click Start -> Windows System -> Control Panel -> Hardware and Sound -> Mouse. Within the Mouse Properties window, click the Buttons tab.
  • Page 83 Restart. Hold down the F2 key and then release this key just after the computer is power on to show the dynabook Setup Utility. Select Security -> BIOS Password -> Supervisor, and then register the Supervisor Password. (If the User Password has been registered, clear it first.)
  • Page 84 Sleep and Charge To enable the Sleep and Charge function, go to function. Advanced -> Sleep and Charge in the dynabook Setup Utility. When there is a current overflow of the external device connected to the compatible port, USB bus power (DC5V) supply might be stopped for safety reasons.
  • Page 85 Problem Procedure The "USB Wakeup When "System ON CDP Charge Mode" or "USB function" does not Sleep and Charge function" is enabled, the "USB work. WakeUp" function does not work for ports that support the Sleep and Charge function. In that case, use a USB port that does not have the USB Sleep and Charge function or change to disable both "System ON CDP Charge Mode"...
  • Page 86 Problem Procedure Monitor does not After confirming that the monitor's power switch is turn on on, check the connections to make sure that the power cord/adaptor is firmly connected to the monitor and to a working power outlet. No display Try adjusting the contrast and brightness controls on the external monitor.

  • Page 87: Technical Support

    Problem Procedure Cannot access LAN Check for a firm cable connection between the LAN jack and the LAN hub. Wake-up on LAN Make sure the AC adaptor is connected. The does not work Wake-up on LAN function consumes power even when the system is off.
  • Page 88 - they are your best resource for current information and support. Technical support If you are still unable to solve the problem and suspect that it is hardwarerelated, read the enclosed warranty booklet or visit the technical support website http://emea.dynabook.com/support-country-selector User's Manual 6-16...

  • Page 89: Appendix Specifications

    Chapter 7 Appendix Specifications This section summarizes the technical specifications of the computer. Physical Dimensions The following physical dimensions do not include parts that extend beyond the main body. The physical dimensions vary depending on the model you purchased. Size Approximately 322.8 (w) x 221.9 (d) x 18.9 (h) millimeters (not including parts that extend beyond the main body) Environmental Requirements...

  • Page 90: Ac Power Cord And Connectors

    AC Power Cord and Connectors The AC input plug of the power cord must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Wire size: Minimum 0.75 mm...

  • Page 91: Information For Wireless Devices

    United Kingdom, South Africa, Middle-East UL approved BS approved Australia Europe, Africa, South Africa, Middle-East AS approved Approved by the appropriate agency Canada China CSA approved CCC approved State of Israel Africa Approved by the appropriate SII approved agency Switzerland Italy Approved by the appropriate Approved by the appropriate...
  • Page 92 Because wireless products operate within the guidelines found in radio frequency safety standards and recommendations, Dynabook believes wireless products are safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
  • Page 93 If this occurs, the outsider might illegally access your system, eavesdrop, or cause the loss or destruction of stored data. Dynabook is not liable for the loss of data due to eavesdropping or illegal access through the wireless LAN and the damage thereof. Card Specifications Compatibility IEEE 802.11 Standard for Wireless LANs...
  • Page 94 Country/region where the product was purchased Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN wireless networking products have been designed for operation in the license-free 2.4 GHz and 5 GHz band, local radio regulations might impose a number of limitations to the use of wireless communication equipment.
  • Page 95 Worldwide operation ® The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band, which is license-free and compatible with radio systems in most countries in the world. Radio links You can easily establish links between two or more devices, with these links being maintained even if the devices are not within a line-of-sight of each other.
  • Page 96 Russian Limited Using SRD (Short Range Device) with Federation: implementation FHSS (Frequency-Hopping Spread Spectrum) modulation. Maximum 2.5mW (4dBm) EIRP (Equivalent Isotropically Radiated Power) is permitted to use. Maximum 100mW (20dBm) EIRP is permitted to use with the following conditions: Permitted to use SRD for outdoor applications without restriction on installation height only for purposes of gathering telemetry...
  • Page 97 Using SRD with DSSS (Direct Sequence Spread Spectrum) and other than FHSS wideband modulation. Maximum EIRP density is 2mW/ MHz. Maximum100mW (20dBm) EIRP is permitted to use. Maximum EIRP density is 20mW/ MHz. Maximum 100mW (20dBm) EIRP is permitted to use with the following condition: It is permitted to use SRD for outdoor applications only for...
  • Page 98 SAR Value 0.331 W/kg (10g) Maximum Power Output (2400 - 2483.5 MHz) IEEE802.11 b/ Maximum 100mW (20dBm) EIRP g/n/ax mode / Bluetooth (2400 - 2483.5 MHz) BLE Maximum 10mW (10dBm) EIRP (5150 - 5725 MHz) IEEE802.11 a/n/ Maximum 200mW (23dBm) EIRP ac/ax mode The low band 5.15 - 5.35 GHz is for indoor use only.

  • Page 99: Information About Intel® Authenticate

    Accessibility options provided by Windows 10 operating system are accessible through Ease of Access features of Windows settings. It allows you customise your Dynabook notebook the way you want to use it. To see the available features in one of the following ways: Go to Start and select (Settings).
  • Page 100 Cursor & pointer: Makes pointer, cursor and touch feedback easier to see. Change pointer size and colour, cursor thickness, touch feedback and make visual feedback for touch points darker and larger. Magnifier: Makes part or all of your screen bigger allowing words and images easier to see.
  • Page 101 Eye control: Allows you to setup an eye tracking device. Refer to Compatible Eye tracking device for more information. For more information about Ease of Access and other accessibility features with the preloaded Windows 10 operating system, click here. Others Hardware: Opening and closing lid can be achieved using one hand as shown below.
  • Page 102 Utilities and Advanced Usage: Your computer comes with pre- installed utilities such as dynabook Support Utility, dynabook Setup Utility (including USB Sleep and Charge, System ON CDP Charge, System Password, etc), and dynabook Maintenance Utility. Refer to Utilities and Advanced Usage section for more information.

  • Page 103: Legal Footnotes

    Legal Footnotes Non-applicable Icons Certain computer chassis are designed to accommodate all possible configurations for an entire product series. Therefore, be aware that your selected model might not have all the features and specifications corresponding to all of the icons or switches shown on the computer chassis.
  • Page 104 Published battery life numbers are achieved on select models and configurations tested by Dynabook at the time of publication. Recharge time varies depending on usage. Battery might not charge while computer is consuming full power.
  • Page 105 The actual transmission speed is lower than the theoretical maximum speed. Copy Protection Applicable copy protection standards included in certain media may prevent or limit recording or viewing of the media. User's Manual 7-17...

  • Page 106: Index

    Index External monitor problems 6-14 AC adaptor additional 4-17 connecting 2-2 DC IN 19V jack 3-2 Hard disk drive automatic power off 5-6 Battery extending life 4-9 Keyboard monitoring capacity 4-8 function keys 4-3 real time clock 4-6 Function keys F1...F12 4-3 save mode 5-6 problems 6-6 Windows special keys 4-4...
  • Page 107 Moving the computer 1-16 SD/SDHC/SDXC Card formatting 4-11 Password Security lock 4-17 power on 5-6 Sleep Mode setting 2-9 Power System automatic 5-6 Hibernation Mode 2-11 panel on/off 5-6 Shut Down mode 2-8 Smart Card 4-13 Sleep Mode 2-9 turning off 2-8 Sound system turning on 2-5 problems 6-13...
