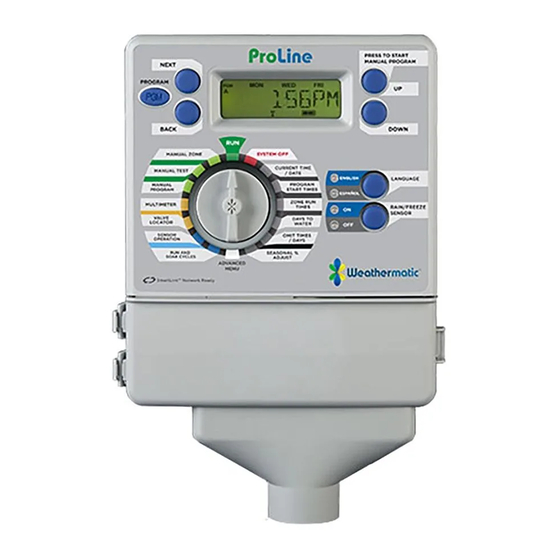

G5 Controller Models
PL800, PL1600, PL4800
Owner's Manual
PROGRAM
PGM
NEXT
BACK
LANGUAGE
ENGLISH
ESPAÑOL
MANUAL ZONE
MANUAL TEST
MANUAL PROGRAM
MULTIMETER
VALVE LOCATOR
SENSOR OPERATION
RUN AND SOAK CYCLES
ADVANCED
PRESS TO START
MANUAL PROGRAM
UP
DOWN
RAIN/FREEZE
ON
SENSOR
OFF
RUN
SYST E M O F F
CURRENT TIME / DATE
PROGRAM START TIMES
ZONE RUN TIMES
DAYS TO WATER
OMIT TIMES / DAYS
MONTHLY % ADJUST
MENU
Advertisement
Table of Contents
Related Manuals for Weathermatic ProLine 800 Series
Summary of Contents for Weathermatic ProLine 800 Series

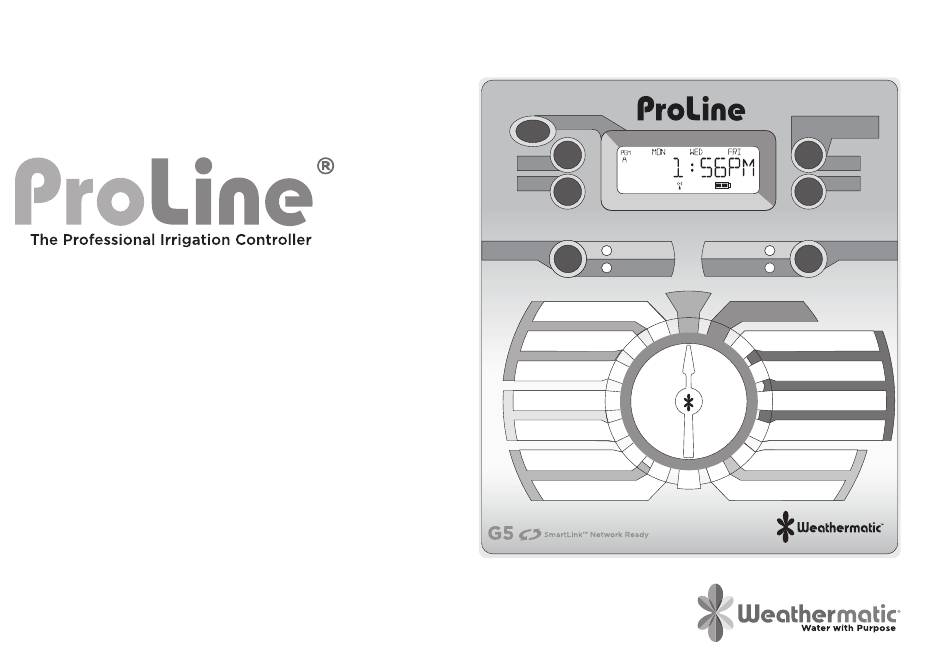

- Page 1 PROGRAM PRESS TO START MANUAL PROGRAM NEXT DOWN BACK RAIN/FREEZE LANGUAGE ENGLISH SENSOR G5 Controller Models ESPAÑOL PL800, PL1600, PL4800 MANUAL ZONE SYST E M O F F MANUAL TEST CURRENT TIME / DATE Owner’s Manual MANUAL PROGRAM PROGRAM START TIMES MULTIMETER ZONE RUN TIMES VALVE LOCATOR...
- Page 2 Introduction Help Desk Congratulations! The ProLine® controller performs timed watering and is ready for options like rain and freeze sensors, Online: support.weathermatic.com ATTENTION INSTALLER: Email: support@weathermatic.com PLEASE READ BEFORE INSTALLING AND SAVE THIS MANUAL FOR SYSTEM OWNER. INSTALLATION INSTRUCTIONS FOR Telephone: 888-484-3776 EACH MODEL IS INCLUDED SEPARATELY.
- Page 3 SL-AIRCARD, SL-AIRCARDFLOW 420GLS RFS5 Web-based control from Rain Sensor for All Wireless rain/ PC, tablet, smartphone. ProLine® Models freeze sensor Flow management option ProLine® accessories available through your professional Weathermatic installer. For the Weathermatic distributor directory, go to www.weathermatic.com. http://support.weathermatic.com...
-
Page 4: Table Of Contents
5.18.2 DS SETUP ....... .15 5.6 GROW-IN ........12 http://support.weathermatic.com... - Page 5 6.2 Watering Cycle Pause Functions ....18 6.3 Troubleshooting Guide ..... . 19 http://support.weathermatic.com...
-
Page 6: Getting Acquainted With Your Proline® Controller
Advanced Menu, it will appear again the next time the program SENSOR OPERATION OMIT TIMES / DAYS runs if the problem is not corrected. RUN AND SOAK CYCLES MONTHLY % ADJUST No AC: Appears when there is no AC supply to the controller. ADVANCED MENU http://support.weathermatic.com... - Page 7 The reason for the pause will be shown on the display. activity for 30 minutes. Display with Dial In SYSTEM OFF Position: When the ProLine® controller dial is in the SYSTEM OFF position, the processor and clock continue to operate and all program values are http://support.weathermatic.com...
-
Page 8: Programming
Your ProLine® controller will cause the chosen value to be saved in memory. automatically adjust for leap years and USA daylight savings time. See DS TIME, in Advanced Menu to to turn the feature on/off and change the DST schedule. http://support.weathermatic.com... -
Page 9: Program Start Times
Run/Soak cycles are applied to each start time. See Run/Soak, Section 5.4. Note: If display shows “0 ZONES,” this indicates no SLM4 modules are currently installed or have ever been installed under AC power with the control panel firmly closed. http://support.weathermatic.com... -
Page 10: Days To Water
If you want to omit specific dates during the year, select OMIT: DATES. Then push NEXT. Enter the month and date. Push NEXT to http://support.weathermatic.com... -
Page 11: Seasonal % Adjust
SEASONAL % ADJUST time. The Manual Test can be set to run ADVANCED ADVANCED MENU MENU a minimum of 10 seconds or a maximum of 10 minutes. You must return dial to RUN for Manual Test operation to begin. http://support.weathermatic.com... -
Page 12: Manual Program
ProLine® controllers use a Real Time Calendar Clock instead of a backup battery to maintain correct time during a 1.000 A 1,000 mA power outage. A battery is only necessary for viewing the screen and programming when the panel is removed from the housing. http://support.weathermatic.com... -
Page 13: Valve Locator
RAIN and FREEZE selections work the same as SENSOR described above, however allow you to differentiate between rain and freeze events. For example, you may want your potted plants to irrigate during rain but not during a freeze. http://support.weathermatic.com... -
Page 14: Run And Soak Cycles
The system will irrigate for 5 minutes and then pause for 10 three times so that the system was irrigating for a total of 15 minutes. However, the total time elapsed will be 45 minutes, due to the 3, 10-minute pauses (30 minutes) required. http://support.weathermatic.com... -
Page 15: Advanced Menu
[3 STARTS] [NUM STRT] [ON/OFF] [LEAK DET] [DELAY] [DS TIME] [DS SET UP] [FREEZE] [SAMPLE T] [SLW] [RAIN] [LINEFILL] [SHUTDOWN] [SKIP CUR] [SENSOR] [FLOW] [FLOW PPG] [CLR TOTL] [TOTL RUN] [RAIN DLY] [RUNTIME] [SLW] [REVIEW] [OPEN FAULT] [FAULTS] http://support.weathermatic.com... -
Page 16: Faults
From the ADVANCED MENU dial position press the UP button until the “OPEN FLT” menu is displayed. Press the NEXT button to enter the menu and the UP or DOWN buttons to select on or off for the alert. http://support.weathermatic.com... -
Page 17: Language
MODEL CONFIRM prompt; press NEXT to proceed or BACK to exit the Displays the model name of the controller. prompt. Pressing NEXT at the CONFIRM prompt will cause the display to read COMPLETE to show that you have successfully http://support.weathermatic.com... -
Page 18: Version
5.7.10 SLAC B VER Displays the version of the aircard. NI is show if this is not installed. 5.7.11 SLAC B BLD Displays the build version of the aircard. NI is show if this is not installed. http://support.weathermatic.com... -
Page 19: Clr Pgm
10 minute increments from 30 minutes to start relay, the pump may overheat or cause a pipe to burst. To 3 hours. prevent operating a pump with no flow (dead heading), make sure all unused zones are set to OFF. http://support.weathermatic.com... -
Page 20: Num Start
If you would like for your controller to automatically set the time Sensor is an ON/OFF toggle to override the SEN terminals rain/ of day on the occurrence of Daylight Saving Time, make sure it is freeze functions on selected zones. Factory default is ON. turned on in this menu http://support.weathermatic.com... -
Page 21: Flow
Advanced Menu and use an arrow button produce a Leak Detect fault. to select SLW DLY. Press the NEXT button and 48 hours will show in the display. Use the UP and DOWN buttons to eliminate http://support.weathermatic.com... -
Page 22: Slw
Use UP/DOWN buttons to select review functions you wish to view. 5.25.1 SLW 5.25.2.1 LASTCOM This feature records time elapsed since last successful communication between the weather station and control panel. 5.25.2.2 BATTERY Check the battery status in your wireless weather station here. http://support.weathermatic.com... -
Page 23: Troubleshooting
Green Omit- Cycle paused for omit Time hours set Orange Green SOAK Zone waiting for soak time out Orange Green ZONE Waiting for next zone valve to open Orange Green PAUSE Waiting for MVP to turn on or off http://support.weathermatic.com... -
Page 24: Troubleshooting Guide
Each Program will start and run all zones assigned to that program in consecutive order. For most installations, only one start time is needed and the rest should be set to OFF. See Program Start Times, for more information. Display shows 0 Defective module Replace module in zone 1-4 position ZONES http://support.weathermatic.com... - Page 25 Pause for Run/Soak in progress. This is normal operation to allow water infiltration zone for expected run time and prevent runoff Module not installed Install module No initial AC power-up of Connect AC power and close control panel controller http://support.weathermatic.com...
- Page 26 Omit times/days are activated Verify omit times/days Rain or freeze sensor has Replace sensor if faulty stopped watering (Sensor LED Select BYPASS mode if desired is red Reset start time to later in the day to avoid early morning freezing temperatures. http://support.weathermatic.com...
- Page 27 www.weathermatic.com...
- Page 29 www.weathermatic.com...
- Page 31 www.weathermatic.com...
- Page 32 ADG51_revA...
