Summary of Contents for Weathermatic SoloRain 8024 DC Series

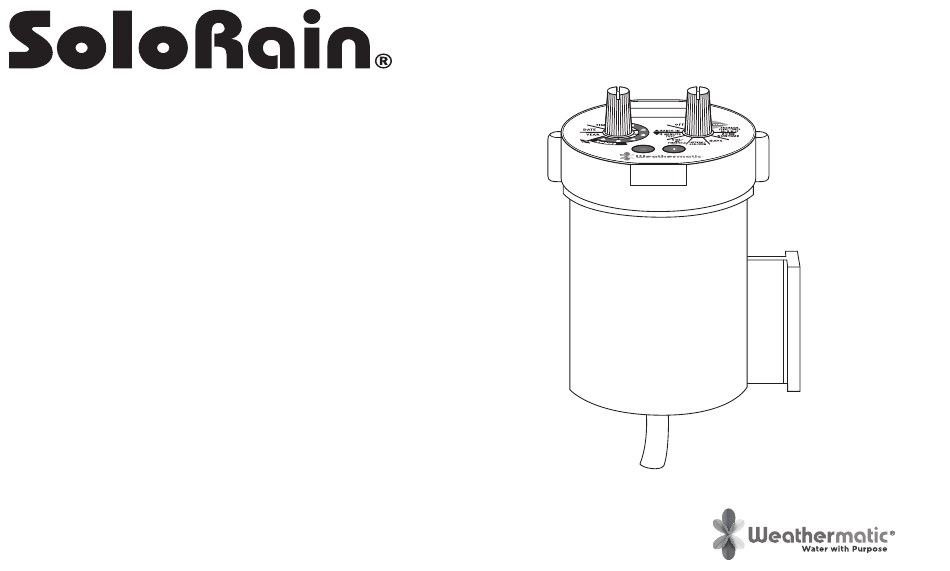

- Page 1 8024 DC Series SoloRain ® Battery Operated Valve Controller Controller Models 80424C Owner’s Manual...
- Page 3 Introduction Help Desk Thank you for selecting Weathermatic's SoloRain™ battery operated valve controller. This unit has the latest technology and Online: support.weathermatic.com will provide many years of reliable service. Email: support@weathermatic.com Please read the following instructions carefully to get familiar...
-
Page 4: Table Of Contents
Table of Contents 1.0 Getting Acquainted With Your SoloRain Controller 4.0 Running Your Controller ..........4 4.1 Running Your Scheduled Your Controllers Features ............ 1 Watering Program ............4 1.2 Electrical Specifications ..........1 4.2 Manually Running Your Controller ......4 1.3 Technical Data .............. -
Page 5: Getting Acquainted With Your Solorain Controller
Signature valve models 7900 • Operating pressure: 7 to 150 PSI 1” series, 9000 1” series, and the 9500 1 1/2” and • Protective cover included 2” series. Adapters are available for most others manufacturers vavles. http://support.weathermatic.com... -
Page 6: Connecting A Rain/Freeze/Wind Sensor
With the Set dial in any position, turn the Select dial to YEAR. Use the + and – buttons to scroll to the current year. NOTE: When date and year are selected, the day of the week is automatically set. The 8020 SoloRain is leap year compatible. http://support.weathermatic.com... -
Page 7: Setting The Watering Schedule
The RUNTIME applies to all start times within a program. INTERVAL waters every X number of days (from 1 to 30 days) (i.e., water every 3 days, waters every 10 days, etc.). A value of 1 in an interval schedule means to water every day. When using http://support.weathermatic.com... -
Page 8: Set % Water Budget
There is a 30-second delay to open or close the water for 20 minutes in two 10 minute intervals, which is a split valve. You can select which program you want to run by pressing cycle. the + and - buttons simultaneously until you reach your desired program. http://support.weathermatic.com... -
Page 9: Running The Controller On A 3 Minute Cycle
4.6 Turning the Controller Off To discontinue watering when the timer is in operation or to prevent automatic operation, turn the SET dial to the OFF position. To return to automatic operation, return the SET dial to the RUN position. http://support.weathermatic.com... -
Page 10: Troubleshooting
Valve not operating Debris in valve Clean valve Valve not operating Debris in plunger See 5.2 Plunger Cleaning LCD is not working Dead battery Replace with a new battery Flashing battery symbol Low battery Replace with a new appears battery http://support.weathermatic.com... - Page 11 Limited Warranty Weathermatic, Inc. warrants all electronic products to be free of defects in material and workmanship for a period of two (2) years from the original date of purchase. In the event of such defects, Weathermatic will repair or replace, at it’s option, the product or the defective part. This warranty does not extend to damage to a Weathermatic product or part resulting from accident, misuse, alteration, neglect, abuse, improper installation or normal wear and tear, or to exterior appearance and color.
- Page 12 ADSR-8024-MN_REVB...
