3.3 Digital Outputs

Module Output:
Voltage Range:
Max. Output Current:
Isolation:
Pulse Width Modulation Output and Pulse Train Output:
Pulse Train Output Max. Frequency(PTO):
Pulse Width Modulation Output Max. Frequency(PWM):
12

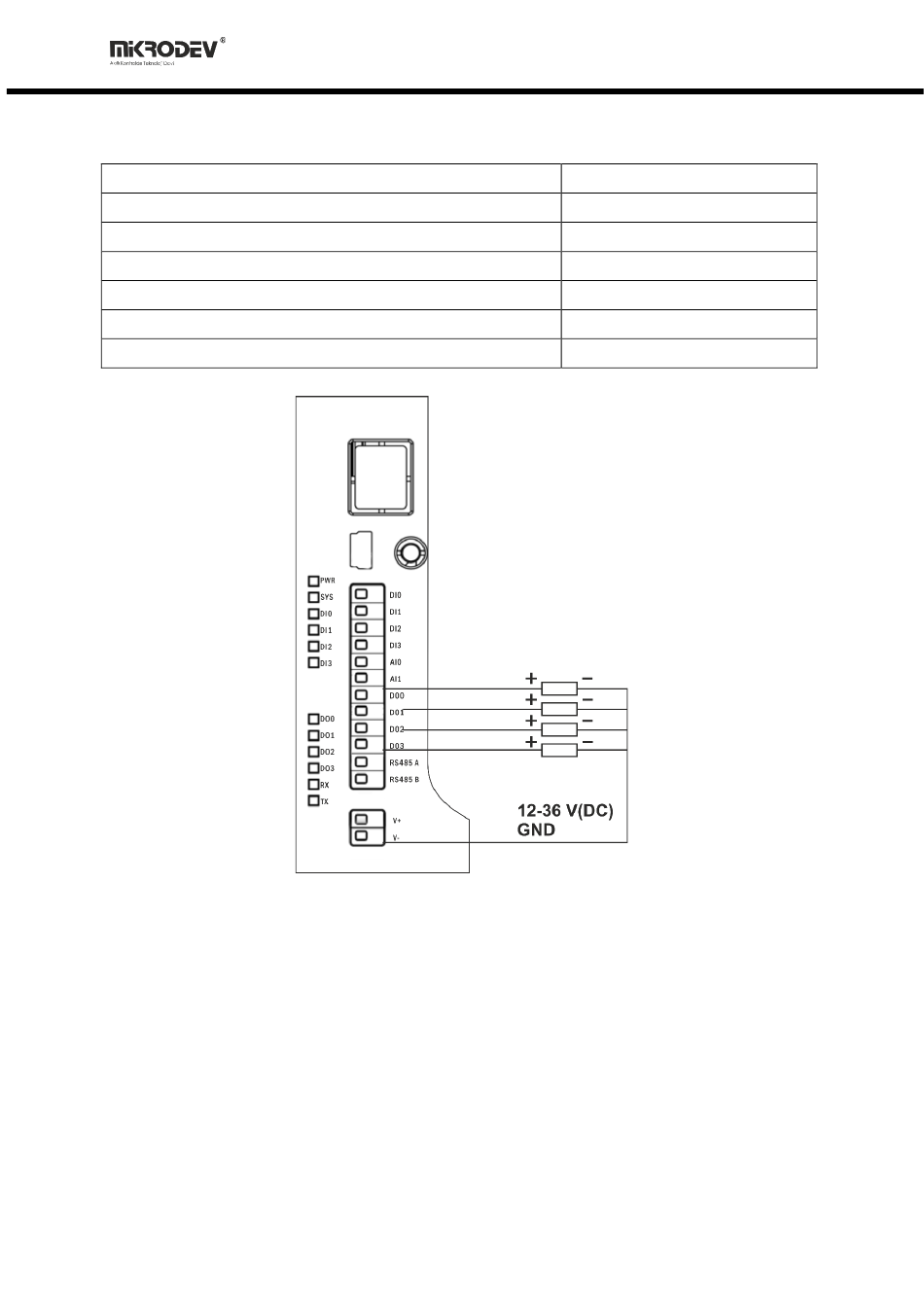

Figure 6 Digital Output Connection Diagram
4 Channel, Mosfet Output
12-36V DC
2A @ 30V DC
Optical
DO1, DO2, DO3, DO4
50 kHz
65 kHz
MP110 SERIES – HARDWARE MANUAL
