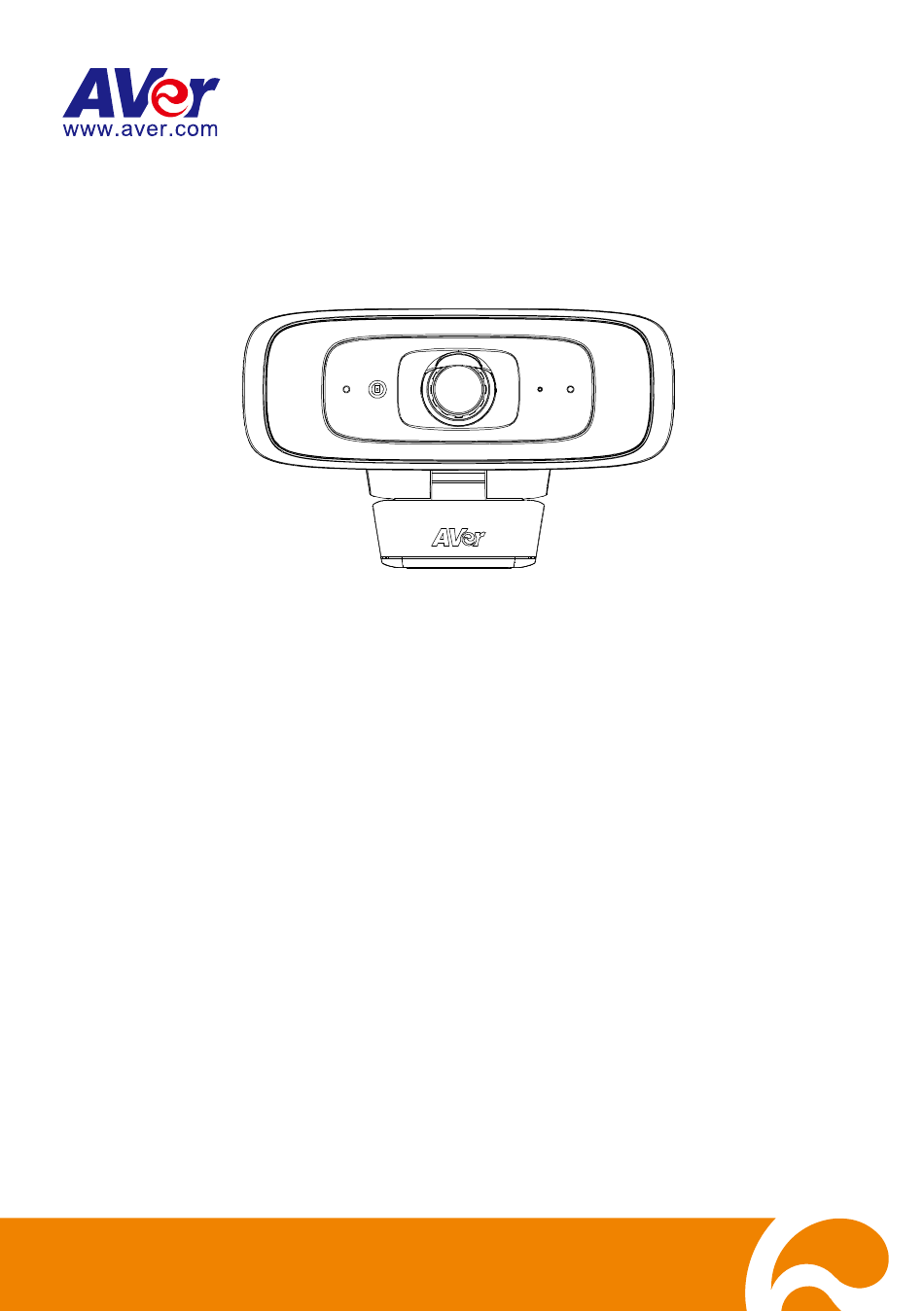

  • Page 1 CAM130 User Manual...
  • Page 2 The information contained in this documentation is subject to change without notice. In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 3 ©2021 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.
  • Page 4 Global: https://aver.com/technical-support USA: https://averusa.force.com/support/s/contactsupport Europe: https://www.avereurope.com/technical-support/ Contact Information Global European Headquarters AVer Information Inc. AVer Information Europe B.V. AVer Information Inc. https://www.aver.com https://www.avereurope.com https://www.averusa.com 8F, No.157, Da-An Rd., Westblaak 134, 3012KM, 668 Mission Ct., Tucheng Dist., Rotterdam, The Netherlands Fremont, CA 94539, USA...

  • Page 5: Table Of Contents

    Contents Package Contents ....................1 Optional Accessories ..................1 Product Introduction ....................2 Overview ......................2 LED Indicator ....................2 How to Control Fill Light ..................3 Control Fill Light via Device Buttons ............3 Control Fill Light via Remote Control ............3 Installation .......................
  • Page 6 Tracking Mode ..................20 Framing Speed ..................21 Home Position ..................22 On Screen Menu ................... 22 Save Preset ................... 22 Fill Light ....................23 Image Settings ....................24 Field of View ..................24 Image Flip ....................24 Image Mirror ..................24 True WDR ....................
  • Page 7 Trouble Shooting ................... 28 Information ..................... 28 Audio Settings ....................29 Microphone .................... 29 EZLive ........................30 Use AVer EZLive ................... 30...

  • Page 8: Package Contents

    Package Contents CAM130 Unit & USB 3.1 Type-C to Power Adapter* Tripod Screw Lens Cover Type-A Cable (1.8m)** QR Code Card * The power cord will vary depending on the standard power outlet of the country where it is sold. * Power adapter will be required to support fill light function only when connecting CAM130 to PC USB 2.0 port.

  • Page 9: Product Introduction

    Product Introduction Overview Fill Light Kensington Lock Microphones* USB 3.1 Type-C Port Color Sensor (10) DC 5V Power Jack Lens (11) Color Temperature Button Lens Cover (12) TV Clip LED Indicator (13) Tripod Screw Hole Light Level Button * The built-in microphone of CAM130 is disabled as default. LED Indicator Power on: Solid red Start-up: Solid red...

  • Page 10: How To Control Fill Light

    Users can do advanced lighting behavior setting via AVer PTZApp 2. The fill light brightness level is much higher while connecting power adapter since the power voltage in power adapter is much higher than USB power.
  • Page 11 Remote Control (Optional)  Name Function 1. SmartFrame One-click automatic FOV adjustment to fit all participants. Press for 1~2 second to switch the SmartFrame function among Manual Framing/Auto Framing/Preset Framing modes. A message (as figures shown) will display on the middle bottom of the screen to indicate the mode.
  • Page 12 Name Function detected. The maximum detection distance is 5 meters.  Camera will track people while moving. It will start to focus and zoom in once people stop moving for 1~5 seconds, depending on the framing speed you choose via PTZApp 2. The default framing speed is “Middle”...
  • Page 13 Name Function function.  Microphone: Press and then to enable/disable microphone function. This setting will force system reboot. It will take 20 seconds for system reboot.  Long press the number button to set the preset point. 14. Number Buttons/Preset ...

  • Page 14: Installation

    Installation Device Connection Install the CAM130 on top of TV or on a tripod. Connect CAM130 to PC with provided USB cable. If you like to use type-C connector on newer PC, connect your adapter to USB cable, and then connect type-C side of adapter to PC. USB type-A to type-C adapter (optional)
  • Page 15 PTZApp 2 or remote controller to enable it first and then select CAM130 as your microphone or audio device. For multi-person conferences, it is recommended to use an external professional microphone or to use with AVer Fone540 for the best conference results. USB cable...
  • Page 16 Microsoft Teams app: Install PTZApp 2 on laptop or PC that is connected with CAM130. The app can be used to adjust and set up the parameters of the camera (refer to the section of PTZApp 2).

  • Page 17: Operating The Camera

    Operating the Camera Make a Video Call Make sure all devices (CAM130, laptop/PC, TV/monitor) are well connected and powered on. ® Run your video application (Zoom, Microsoft Teams, Skype for Business, Skype, Google Meet, ® ® Intel Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting , TrueConf, ®...

  • Page 18: Ptzapp 2

    In PTZApp 2, user can configure the parameters of the camera, set up AI tracking functions and some advanced image settings, pan, tilt, and zoom the camera. Install PTZApp 2 Please go to https://www.aver.com/download-center (Global & European Headquarters) or https://www.averusa.com/business/support/ (USA) to download the PTZApp 2. After downloading, double-click on the file and follow the on-screen instructions to complete the installation.
  • Page 19  Language: Select desired language and click the check icon to confirm the selection.  Hotkey Control: User can control the camera by using keyboard. This is a general list for all Aver USB Cameras. Backlight control equals to WDR function in CAM130.
  • Page 20  PTZApp Update: Get current PTZApp 2’s version number and do auto update here. Information: Click the drop-down triangle icon to review the information of camera. To minimize the information, click the triangle or the bottom area of the information icon. Camera: Click the camera icon to view the camera live view.
  • Page 22  Full Screen: PTZApp 2 can switch to full screen mode. Click “ ” icon and video screen will switch to full screen mode. In full screen mode, user can use direction panel to control camera direction. Click “ ” icon to go back to normal screen view. The resolution of full screen mode is 1080p.
  • Page 23  People Count and Stream Interval: Click the icon to show people count number and stream time interval. Click the icon to hide the stream time interval.  Control Panel: To control the camera direction, and zoom in/out.
  • Page 24 Setting: Click “Setting” button to set up parameters of the camera. Click arrow icon to leave the Setting page.
  • Page 25 Set up the Preset User can set 10 preset positions. In live screen, click the preset number (0~9). Use ▲ , ▼ , ,  and zoom in/out buttons to adjust the camera screen view to desired position. Select “Set Preset” button to save the preset. The system will capture the preset screen view and display in preset number frame.

  • Page 26: Select The Preset Position

    Select the Preset Position Preset positions need to be set. Select the preset. The live screen will move to the preset screen view. Camera Settings The video icon is to turn on camera live view while doing any settings. Live screen preview Press the icon to show/hide people count number &...

  • Page 27: Tracking Mode

    Tracking Mode Select Setting > Camera > Tracking Mode > Off, Manual Frame, Auto Frame, or Preset Framing.  Off: Tracking mode is disabled.  Manual Frame: User one-click SmartFrame button and camera will adjust view angle to fit all participants in screen for once.

  • Page 28: Framing Speed

    preset area. When any of them touch a preset area, the camera will immediately shoot the preset zones instead of focusing and zooming into presenter. To keep the screen stable, whenever there is a person in the area, the camera won’t move any more until no one shows up. However, the camera can detect the direction where the last person goes.

  • Page 29: Home Position

    Home Position Every time when powering on the camera, it will turn to this position. Select Setting > Camera > Home Position > Last Operating Position, Factory Center Position, or Preset 0. On Screen Menu Enable/disable on screen display status information. For instance, when it is at auto frame mode, it will appear “Auto framing”...

  • Page 30: Fill Light

    Fill Light Select Setting > Camera > Fill Light > Intelligent Lighting or Manual Lighting.

  • Page 31: Image Settings

    Image Settings Field of View Two kinds of view angle to select for different types of rooms. Select Setting > Image > Field Of View > Depth Room (90 degree) or Wide Room (120 degree). [Note] To enable this option, please switch off AI functions. Image Flip If the CAM130 is installed in the upside down position, please enable the "Flip".

  • Page 32: Frequency

    Frequency Select the frequency of the camera. Select Setting > Image > Frequency > Off, 50 HZ or 60 HZ. White Balance Select the white balance setting for various light conditions or color temperature. Select Setting > Image > White Balance > Auto or Manual. Noise Reduction To reduce the noise from the signal.
  • Page 33 Low Light Compensation Select Setting > Image > Low Light Compensation > Off or On. Please notice that the frame rate will drop to 10~15 fps.

  • Page 34: System Settings

    Update the camera’s firmware. Select System > FW Update > Auto Update or Manual Update.  Auto Update: The system will check firmware version from AVer server and request to update.  Manual Update: To update the firmware from specific location.

  • Page 35: Factory Default

    Factory Default Reset the camera back to factory default setting. Select System > Factory Default > Reset. Select Continue to reset back to factory default. Trouble Shooting Output log to save in local PC. Select System > Trouble Shooting > Start. Select Output.

  • Page 36: Audio Settings

    Audio Settings Microphone Enable/disable microphone function. The default setting is off. Select Audio > Microphone > Off or On. While changing the microphone status, the system requires 20 sec to reboot. 9. PTZApp 2 Quit & Restore: To quit the application, right-click the icon on the system tray and select “Quit”.

  • Page 37: Ezlive

    EZLive Please go to https://www.aver.com/download-center to download the AVer EZLive software. After downloading, double-click on the file and follow the on-screen instructions to complete the installation. Use AVer EZLive During a video call, EZLive can help user to do: (1) Camera ePTZ (2) Volume control for the speaker connected (3) Capture camera’s still images...
