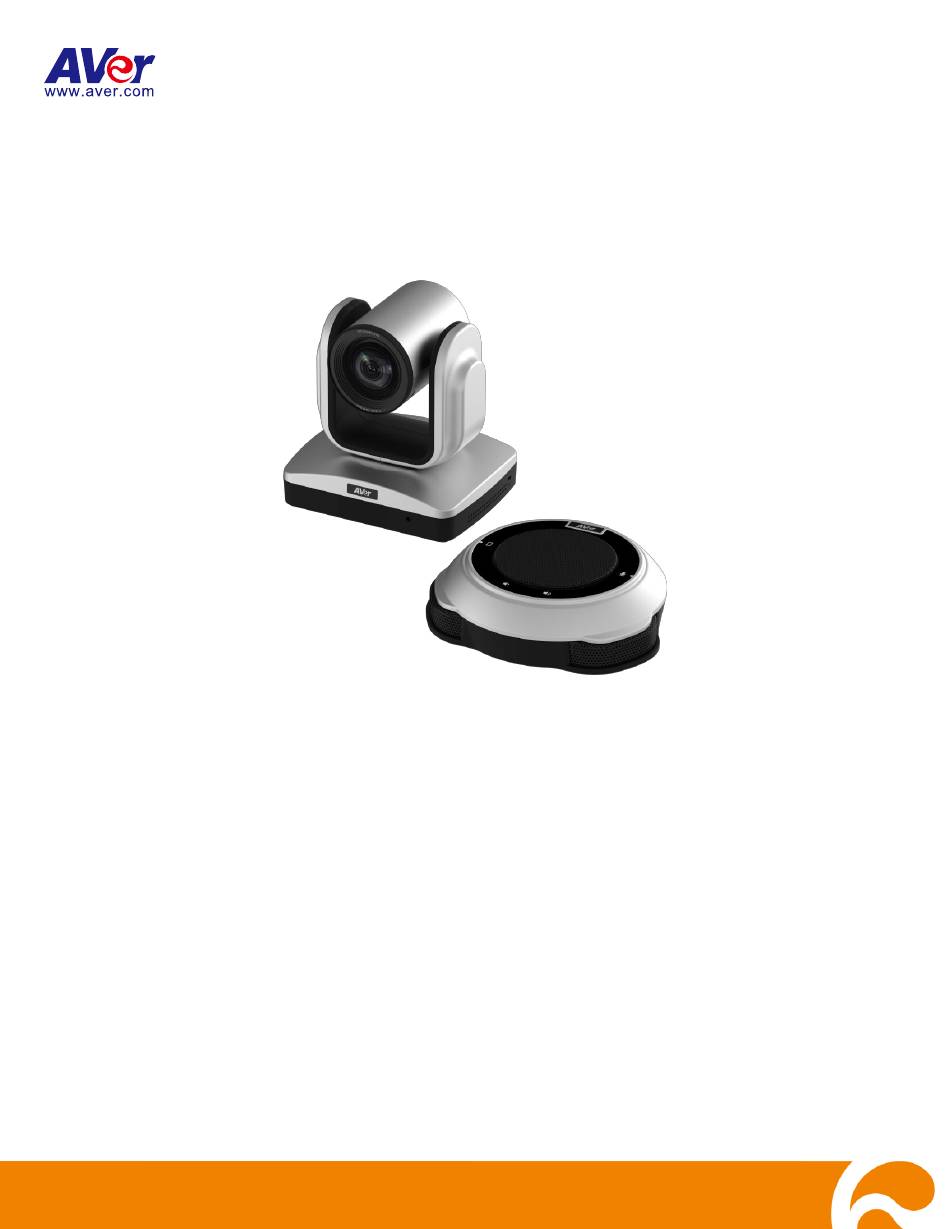

  • Page 1 VC520+ User Manual...
  • Page 2 FCC NOTICE (Class A) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 © 2017 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 4: Table Of Contents

    Contents Package Contents ..........................1 Product Introduction ........................... 2 Camera ............................2 Speakerphone ..........................3 Remote Controller ........................4 Setup VC520+ ........................... 5 Device Connection ........................5 Using Cable Retainer ........................6 Wall Mount Installation ........................ 7 Holes for 2-Gang Box/Non 2-Gang Box ..................10 Holes for Celling Mount ......................
  • Page 5 LED Indicator ..........................11 AVer PTZApp ........................... 13 Install AVer PTZApp ........................13 Use AVer PTZApp ........................13 Select Remote Control ......................19 Set the Camera Number ......................20...

  • Page 6: Package Contents

    Package Contents 1. Camera 7. Speakphone cable 2. Speakerphone 8. Quick start guide 3. Power Cord & Power adapter 9. AAA Batteries (x2) 4. Remote Controller 10. Wall mount bracket 5. USB cable(cable retainer is inculded) 11. Tripod screw 6. 3.5mm AUX cable *The power cord will vary depending on the standard power outlet of the country where it is sold.

  • Page 7: Product Introduction

    5. USB port 2. Power indictor 6. Power jack 3. Speakerphone port 7. Kensington lock (Speakerphone connection) 4. RS232 connection* 8. Mounting hole * If you need a converter or instructions on how to use RS232, please contact AVer USA.

  • Page 8: Speakerphone

    Speakerphone 6 7 8 1. Cellphone indicator 5. Camera port 2. Volume up/down 6. Kensington lock 3. Mute/unmute speakerphone* 7. Line out 4. Speakerphone(daisy chain) 8. Phone in Red LED: speakerphone is on mute * Blue LED: speakerphone is active (or live)

  • Page 9: Remote Controller

    Button Function 1. Camera select 1 remote can control up to 3 AVer VC/CAM. Use AVer PTZapp sets number associated with each camera, select which camera you like to control on remote. Use the direction button on the remote to control the direction of 2.

  • Page 10: Setup Vc520

    3. Connect the power to the camera and camera head will rotate, and the camera power indictor will light 4. Install Aver PTZApp on laptop/PC that is connected with VC520+. The app can be used to adjust and setup the parameters of the camera (refer to section of Aver PTZApp).

  • Page 11: Using Cable Retainer

    Using Cable Retainer The USB cable retainer is used to secure the cable connection between camera and speakerphone. After connecting the cable to camera, screw tight the screw of cable retainer to secure the cable on the camera.

  • Page 12: Wall Mount Installation

    Wall Mount Installation Paste the drilling paper on the wall where you want to mount the camera. Then, according the drilling paper to drill the hole on the wall for installing the wall mount bracket on the wall. After drilling, the drilling paper can tear off.
  • Page 13 Secure the camera on the wall mount. [Note] DO NOT screw tight, leave some space for push camera in the end later. Connect the necessary cables to the camera. [Note] You may use cable ties to organizer cables. After connecting all cables, slide the camera in the end.
  • Page 14 Screw tight the screw to secure the camera on the wall mount. Complete the wall mount installation.

  • Page 15: Holes For 2-Gang Box/Non 2-Gang Box

    Holes for 2-Gang Box/Non 2-Gang Box Holes for Celling Mount...

  • Page 16: Use Vc520

    4. The VC520+ is a plug-and-play conference camera. The system requires no special drivers, but we do recommend installing the AVer PTZApp for a better user experience. For information on how to install and use the AVer PTZApp, refer to the AVer PTZApp section in this user manual.
  • Page 17  Speakerphone( Status Mute Solid Red Unmute Solid blue  Cellphone( Status Connect Light on Light off Disconnect...

  • Page 18: Aver Ptzapp

    Skype. Click on the Skype plug-in request to accept the plug-in; this enables funcationality on the Remote Control. 2. During your video call, you can use the AVer PTZApp to pan, tilt and zoom the camera in/out and enable/disable the backlight feature.
  • Page 19  Currently selected device: This field displays currently selected VC or CAM device controlled by PTZApp. If you have more than one AVer VC or CAM devices connected to this PC/Mac PTZApp is running, you can click on the drop down list to select other AVer VC or CAM device.
  • Page 20  Settings: To setup parameters of the camera. Click the Save button to save all settings. To change all the settings, back to the default values, click the Factory Default button.  Diagnostic Utility: To display the S/W and F/W version and the devices connection status. You can also test the camera and speakerphone status, and update the firmware of the camera.
  • Page 21 Normal Un-normal  Connection diagnostic: Display devices connection status. If the AVer PTZApp has detected that some of the devices (camera, speakerphone and laptop/PC) are not connected well, the diagram will display an “X” on the device to indicate the connection has a problem. If the camera is in use by...
  • Page 22  Test Camera: Click the Test Camera button to check the camera status. Click to view camera live video. Also, you can adjust the camera direction and view of the zoom in/out. To leave the page, click the Abort Diagnostic button. ...
  • Page 23 Download new firmware Update new firmware to camera To update the firmware manually, click “Manual Update” and locate the new firmware to start the process.  Troubleshooting: collect more system information for troubleshooting before you contact AVer technical support.

  • Page 24: Select Remote Control

    Select Remote Control VC520+ supports 2 types of remote control, user need to select remote control before use it. At PTZApp UI, select PTZ and select the remote control that user has.

  • Page 25: Set The Camera Number

    Set the Camera Number When connect with multiple cameras, user can set the camera number to associate with each camera for remote controller to control. 1. If PTZApp detects computer connects to multiple VC/CAM, you can select which camera you like to control through the dropdown list.
