  • Page 1 VC520 User Manual...
  • Page 2 © 2016 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 3: Table Of Contents

    Product Introduction ........................... 2 Camera ............................2 Speakerphone ..........................3 Hub ............................. 4 Remote Controller ........................4 Setup VC520 ............................. 6 Device Connection ........................6 Mounting Camera ........................7 Connector Retainer ........................8 Use VC520 ............................9 Make a Video Call ........................9 Phone in .............................

  • Page 4: Package Contents

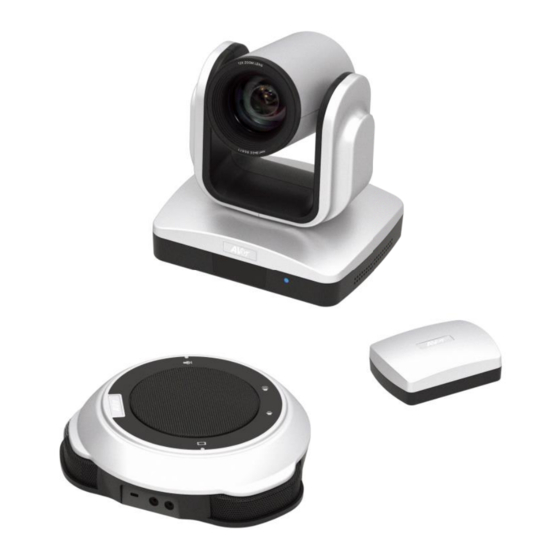

    Package Contents 1. Camera 9. Camera cable 2. Hub 10. Speakerphone cable 3. Speakerphone 11. 3.5mm AUX cable 4. Remote Controller 12. User Manual 5. Mount (mounting screws are included) 13. Warranty Card 6. Power Cord & Power adapter 14. Quick Installation Guide 7.

  • Page 5: Product Introduction

    Product Introduction Camera 1. IR Sensor 4. RS232 connection* 2. Power indictor 5. Kensington lock 3. Hub connection 6. Screw hole for mounting * If you need a converter or instructions on how to use RS232, please contact AVer USA.

  • Page 6: Speakerphone

    Speakerphone 6 7 8 1. Cellphone indicator 5. Hub connection 2. Volume up/down 6. Kensington lock 3. Mute/unmute speakerphone* 7. Line out 4. Speakerphone(daisy chain) 8. Phone in Red LED: speakerphone is on mute * Blue LED: speakerphone is active (or live)

  • Page 7: Hub

    Remote Controller Name Function 1. Camera select 1 remote can control up to 3 AVer VC/CAM. Use AVer PTZapp sets number associated with each camera, select which camera you like to control on remote. 2. Camera direction control Use the direction button on the remote to control the direction of the camera.
  • Page 8 Mute/Unmute the speakerphone. 11. Volume up/down Adjust volume up or down. Press the Far/Near button to control the far site camera for pan, 12. Far site camera control tilt, or zoom functions. 13. Hang up* End the call. Function requires AVer PTZApp...

  • Page 9: Setup Vc520

    LED will light up, camera head will rotate, and the camera power indictor will light up. 4. Install Aver PTZApp on laptop or PC that is connected with VC520. The app can be used to adjust and setup the parameters of the camera (refer to section of Aver PTZApp) ®...

  • Page 10: Mounting Camera

    Mounting Camera There are 3 ways to mount the camera – on the wall, on the ceiling, and on a table with the mount and screws included in the package. [Warning] 1. When securing the camera mount on a wall or celling, only use hardware and materials certified to support 22 lb (10 kg) weight.

  • Page 11: Connector Retainer

     Table Connector Retainer The connector retainer can use to secure camera and speakerphone cable connection with hub, camera, and speakerphone. Speaker- phone...

  • Page 12: Use Vc520

    GoToMeeting , WebRTC, and etc.) on your laptop or PC. 3. Set the VC520 camera as the primary camera for your video application (refer to your video application user guide). You can now make your call. 4. The VC520 is a plug-and-play conference camera. The system requires no special drivers, but we do recommend installing the AVer PTZApp for a better user experience.
  • Page 13  Speakerphone( Status Mute Solid Red Unmute Solid blue  Cellphone( Status Connect Light on Light off Disconnect...

  • Page 14: Aver Ptzapp

    Skype. Click on the Skype plug-in request to accept the plug-in; this enables funcationality on the Remote Control. 2. During your video call, you can use the AVer PTZApp to pan, tilt and zoom the camera in/out and enable/disable the backlight feature.
  • Page 15 Currently selected device: This field displays currently selected VC or CAM device controlled by PTZApp. If you have more than one AVer VC or CAM devices connected to this PC/Mac PTZApp is running, you can click on the drop down list to select other AVer VC or CAM device.
  • Page 16 Diagnostic Utility: To display the S/W and F/W version and the devices connection status. You can also test the camera and speakerphone status, and update the firmware of the camera. c. Minimize: Minimize the app to system tray. To quit the application, right-click the icon on the system tray and select “Quit”.
  • Page 17 Connection diagnostic: Display devices connection status. If the AVer PTZApp has detected that some of the devices (camera, speakerphone, hub, and laptop/PC) are not connected well, the diagram will display an “X” on the device to indicate the connection has a problem. If the camera is in use by another application, it will display “Can’t start video”...
  • Page 18 Test Speakerphone: Click to check the speakerphone status. It will require the user to record a short message and play it back to ensure the speakerphone is working. h. Update Now: Allows the user to update the VC520 camera’s firmware. Click” Update Now”.

  • Page 19: Select Remote Control

    Select Remote Control VC520 supports 2 types of remote control, user need to select remote control before use it. At PTZApp UI, select PTZ and select the remote control that user has.

  • Page 20: Set The Camera Number

    Set the Camera Number When connect with multiple cameras, user can set the camera number to associate with each camera for remote controller to control. 1. If PTZapp detects computer connects to multiple VC/CAM, you can select which camera you like to control through the dropdown list.
