PowerTac E10R User Manual

INTRODUCTION

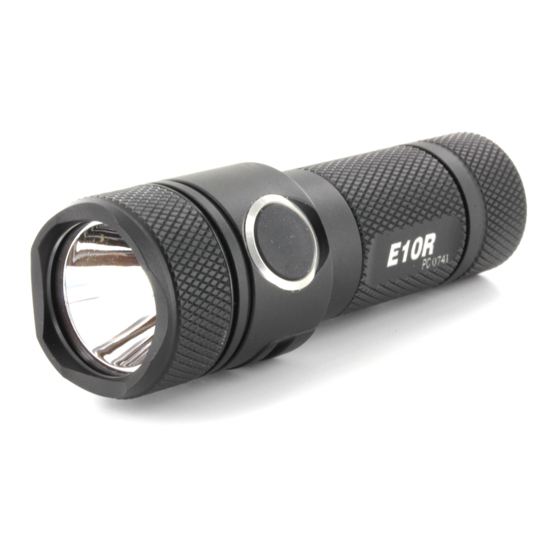

The PowerTac E10R high-power LED ashlight is a USB rechargeable-battery version of our E10 Spark. It is engineered using the latest cutting-edge technology and nest quality
components; manufactured with exceptional craftsmanship and unbeatable reliability. Considering its compact size (less than 3" in length), it produces a dramatic maximum
light output of 600 lumens, with a focused beam distance of 172 meters. The pocket-sized E10R is extremely versatile; it features a built-in micro USB port to recharge a RCR123A
battery (included) without removing it. In addition, an integrated magnetized tail cap attaches to any ferrous (iron) metal object that can be used as a work lamp. Equipped with
a simple user interface side-switch that auto-memorizes last light mode setting. The E10R is the preferred choice of many individuals seeking a compact, high-lumen profession-
al-grade ashlight; ideal for mechanics, technicians, law enforcement and outdoor enthusiasts.
USAGE INSTRUCTIONS
1. To install battery, unscrew tail cap. Insert positive end of the battery
towards LED. Tighten the tail cap till it's completely closed.
2. To turn the light ON, quickly push the side button to illuminate LED; to
adjust light settings, press and HOLD down side button. The ashlight
will change modes in the following order: Fire y–Low--Medium–High
and back to Fire y. The last setting used will be auto-memorized when
turned o .
3. To charge E10R battery, unseat rubber cap on charge-port. Plug in small
end of supplied USB cord into the ashlight; plug in DC USB attachment
(not supplied) into power source and begin charging. The indicator light
inside side-switch will be red when depleted and will change to blue
when fully charged.
Maintenance
Every 3 months, threads should be wiped with a clean cloth followed by a
thin coating of silicon-based lubricant.
LED TYPE: CREE XM-L2 U2 LED
ILLUMINATION FUNCTIONS
Mode: Fire y Low Medium
Output: 0.1 lm 36 lm 190 lm
Runtime: 132 hrs 11 hrs 1.9 hrs
SIDE SWITCH BATTERY TUBE
HEAD CHARGE PORT POCKET / HAT CLIP
High Strobe
600 lm 600lm
0.9 hrs 1.8 hrs
TAIL CAP
E10R
EVERY DAY CARY FLASHLIGHT
USER MANUAL
