PowerTac E9R-G4 User Manual

INTRODUCTION

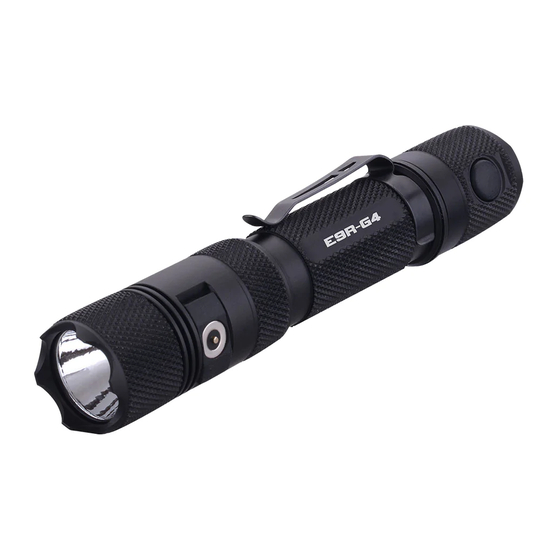

direct to Strobe function. Using the latest CREE XHP50 LED to produce a maximum of 2550 Lumens. The E9R-G4 is machined from aircraft grade aluminum, which makes it
for law enforcement, outdoor enthusiasts, and EDC. The included tactical holster is perfect for law enforcement, security guards, and soldiers alike. With the ability to mount the
goes to the person who wields the E9R-G4.
USAGE INSTRUCTIONS
1. To install battery: Unscrew tail cap. Insert positive end of the battery
towards LED. Tighten the tail cap till it's completely closed.
2. To turn the light ON: Push the back switch to click. Once Turned on the
back button to click.
3. To switch light levels: Turn the light on and press the side switch (click).
Press side switch again (click) will cycle to next light level.
side switch or turn light on and hold down side switch (long click, 0.3
seconds). The light will remain on strobe until you switch light levels.
5. Toggle Strobe / High Function: Access direct to strobe function; release
side switch; hold down side switch again (long click) and light will toggle
to high mode. Hold down side witch again (long click) and toggle to
strobe again.
Maintenance
Every 3 months, threads should be wiped with a clean cloth followed by a
thin coating of silicon-based lubricant.
LED Type: Cree XHP50 White LED
Battery: (2) CR123A or (1) 18650 High Discharge Rechargeable Li-ion.
Size: Length: 138 .6mm
Bezel Diameter: 25.4 mm
Body Diameter: 23 mm
Weight: 85g (without battery)
Illumination:
Battery Low Medium
1 x 18650 (3.6V)
.64 Lumens 71 Lumens 270 Lumens
(High Discharge)
50 days 20.9 hrs 5.7 hrs
Rechargeable Battery
2 x CR123A (3.0V)
.64 Lumens 71 Lumens 270 Lumens
(High Discharge)
48 days 10.68 hrs 4.2 hrs
Rechargeable Battery
HEAD MAGNETIC / MICRO USB BATTERY TUBE
CHARGE PORT
High Turbo Strobe
1135 Lumens 2550 Lumens 790 Lumens
2.11 hrs 2.02 hrs 4.81 hrs
980 Lumens
790 Lumens
1.24 hrs
4.4 hrs
