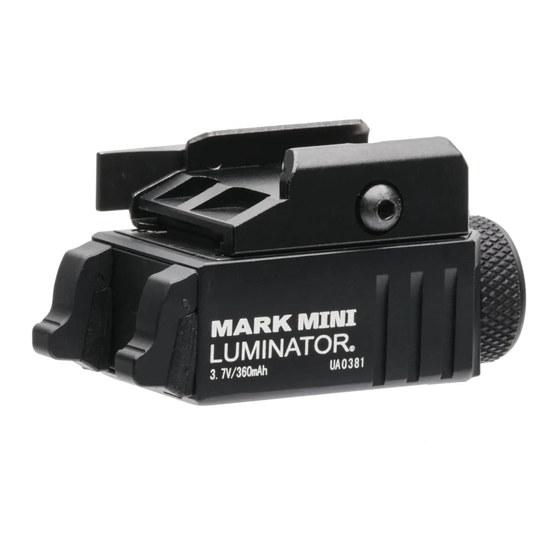

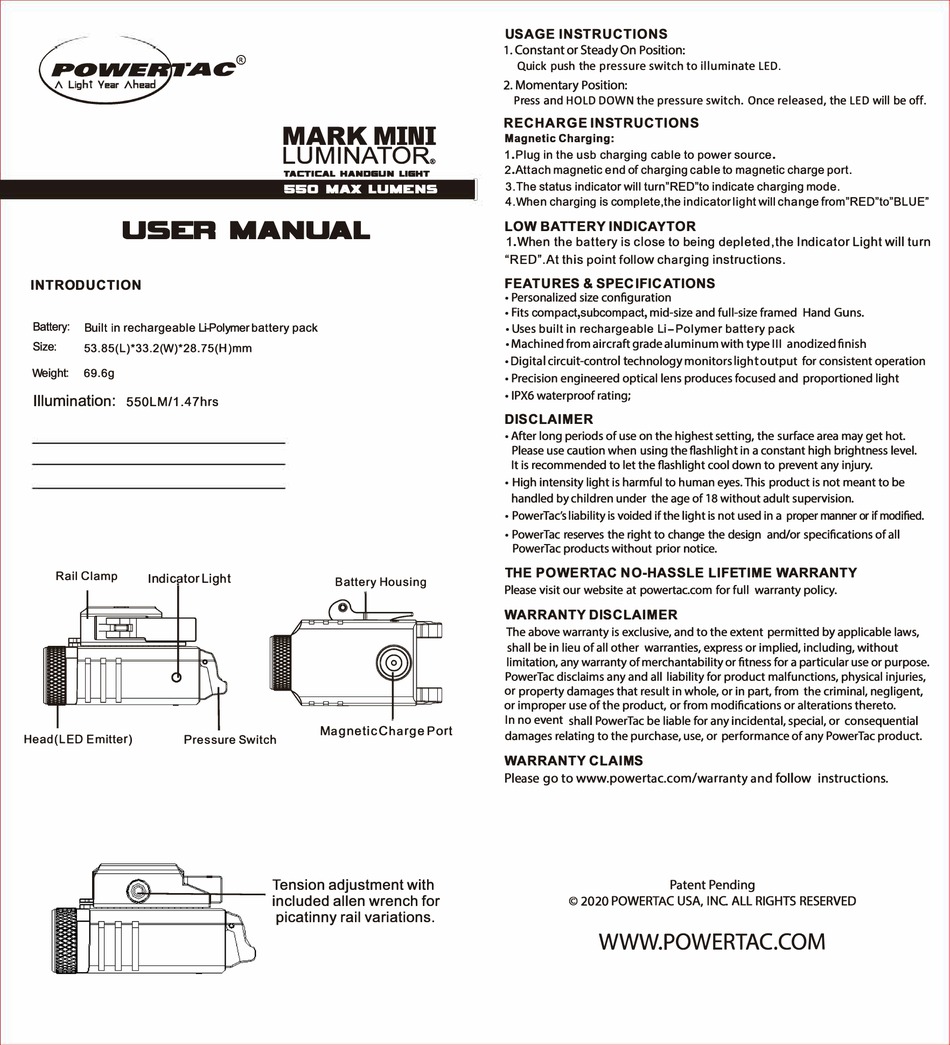

PowerTac MARK MINI LUMINATOR User Manual

_ ＾
USER MANUAL
INTRODUCTION
Battery:
Built in rechargeable Li-Polymer battery pack
Size:
53.85(L)*33.2(W)*28.75(H)mm
Weight: 69.6g
Illumination: 550LM/1.47hrs
R ail Clamp
Indicator Light
Head(LED Emitter) Pressure Switch
c
®
MARK MINI
LUMINATOR®
TACTICAL HAND霾UN LI匡HT
巨巨口MAX LUMENS
B attery Housing
Magnetic Charge Port
Tension adjustment with
included al i en wrench for
picatinny rail variations.
USAGE INSTRUCTIONS
1. Constant or Steady On Position:
Quick push the pressure switch to illuminate LED.
2. Momentary Position:
Press and HOLD DOWN the pressure switch. Once released, the LED will be off.
RECHARGE INSTRUCTIONS
Magnetic Charging:
1.Plug in the usb charging cable to power source.
I
2.Attach magnetic end of cha
3.The status indicato will turn"RED"to indicate charging mode.
「
4.When charging is complete,the indicator light will change from"RED"to"BLUE"
LOW BATTERY INDICAYTOR
1.When the battery is close to being depleted,the Indicator Light will turn
"RED".At this point follow charging instructions.
FEATURES & SPECIFICATIONS
• Personalized size configuration
• Fits compact,subcompact, mid-size and full-size framed Hand Guns.
• Uses built in rechargeable Li-Polyme
• Machined from aircraft grade aluminum with type Ill anodized finish
• Digital circuit-control technology monitors light output for consistent operation
• Precision engineered optical lens produces focused and proportioned light
• IPX6 waterproof rating;
DISCLAIMER
• After long periods of use on the highest setting, the surface area may get hot.
Please use caution when using the flashlight in a constant high brightness level.
It is recommended to let the flashlight cool down to prevent any injury.
• High intensity light is harmful to human eyes. This product is not meant to be
handled by children under the age of 18 without adult supervision.
• PowerTac's liability is voided if the light is not used in a proper manner or if modified.
• Power Tac reserves the right to change the design and/or specifications of all
PowerTac products without prior notice.
THE POWERTAC NO-HASSLE LIFETIME WARRANTY
Please visit our website at powertac.com for full warranty policy.
WARRANTY DISCLAIMER
The above warranty is exclusive, and to the extent permitted by applicable laws,
shall be in lieu of all other warranties, express or implied, including, without
limitation, any warranty of merchantability or fitness for a particular use or purpose.
Power Tac disclaims any and all liability for product malfunctions, physical injuries,
or property damages that result in whole, or in part, from the criminal, negligent,
or improper use of the product, or from modifications or alterations thereto.
In no event shall PowerTac be liable for any incidental, special, or consequential
damages relating to the purchase, use, or performance of any Power Tac product.
WARRANTY CLAIMS
Please go to www.powertac.com/warranty and follow instructions.
© 2020 POWERTAC USA, INC. ALL RIGHTS RESERVED
WWW.POWERTAC.COM
ging cable to magnetic cha ge port.
「 「
battery pack
「
Patent Pending
