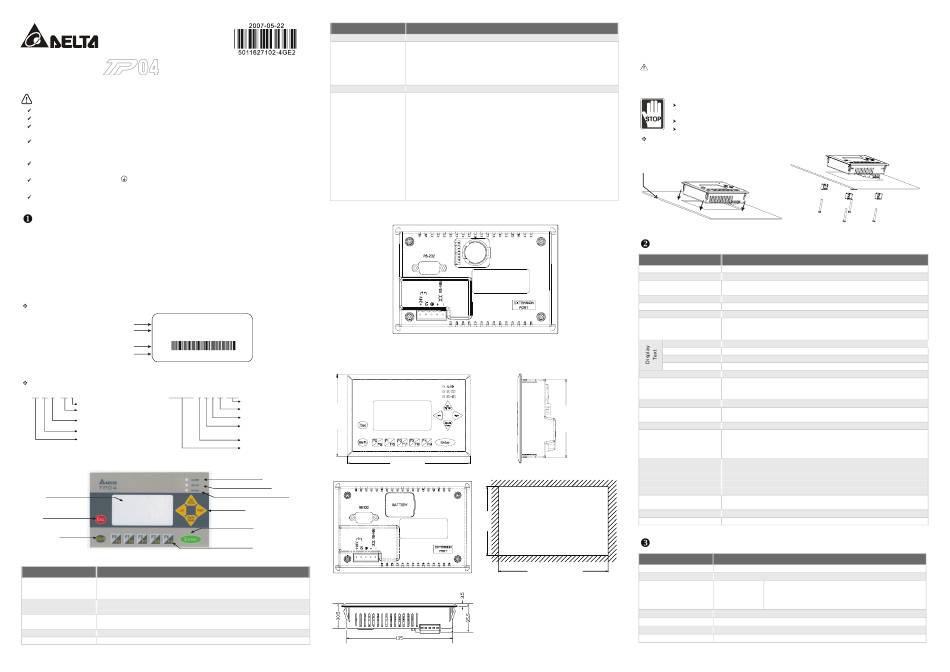

Terminal Panels Series
Instruction Sheet
Warning
Please read this instruction carefully before use.
Switch off the power before wiring.
The display panel of TP04 series is waterproof. But please prevent grease, corrosive liquids and sharp objects from
contacting the TP04 series.
The TP04 series require 24VDC input power. DO NOT connect input AC power supply to any of the RS-485
communication port; otherwise serious damage may occur. Check all the wiring again before switching
on the power.
DO NOT touch any terminal when the power is switched on. DO NOT touch any internal circuit in 1
minute after the power is switched off.
Make sure the groud terminal is correctly grounded in order to prevent electromagnetic
interference.
Please use the fixed support accessory which is packed together with the product provided by Delta. DO
NOT tighten the screws out of the normal torque specifications; otherwise serious damage may occur.
Introduction
1.1 Model Explanation
Thank you for choosing Delta TP Series. TP04G-AS2 has the features of high resolution 128×64 dots and is able
to display 8×4 Chinese character. It provides multilingual display and two built-in communication ports, one is for
RS-232 / RS-422 and the other is for RS-485. RS-232 and RS-485 can be used simultaneously. Besides, it also
supports built-in RTC, communication / alarm LED indicators. The user can purchase program copy card (optional)
to copy settings and programs quickly and save download time. Regarding the editing software, there are various
objects and images for the user's requirements.
Nameplate Explanation
Production model
MODEL : TP04G-AS2
Power input spec.
POWER INPUT :
24Vdc 3.5W
Barcode and
serial number
VX.XX
Version TP04GAS2W6050004
DELTA ELECTRONICS, INC
NOTE: The words of "MADE IN XXXXX" will be different due to the manufacturing location. Please refer to the actual product
for exact description.
Model / Serial No. Explanation
TP 04 G - AS 2 TP04GAS 2 W 6 05 0004
RS-232/RS-422/RS-485 interface
Reserved
T: Text mode
G: Graphic mode
LCD Spec.
Series name

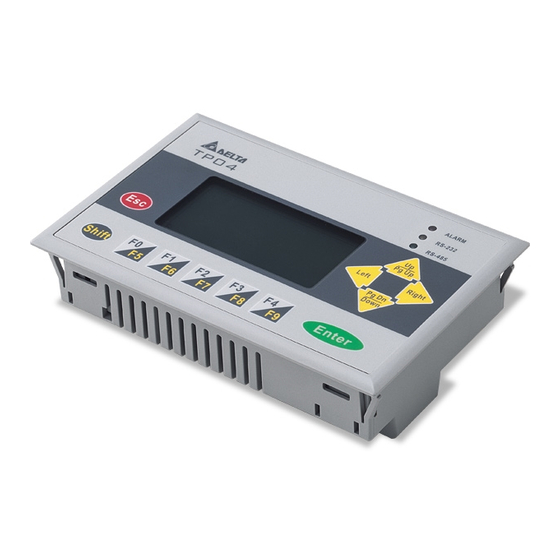

1.2 Product Outline
Displaying Area
Escape / Exit Key
Shift Key
1.3 Panel Function Explanation
PANEL COMPONENT EXPLANATION
Status 1: When power is on, LED will start to blink slowly
Alarm LED Indicator
Status 2: When there is an abnormal situation, LED will blink quickly along with
(RED)
an alarm sound.
RS-232 LED Indicator
LED will blink when transmits program and communicates via RS-232.
(Yellow)
RS-485 / RS-422 LED
LED will blink when communicates via RS-485 / RS-422.
Indicator (Green)
Displaying Area Liquid Crystal Module display area. It is used to display current program status.
Escape / Exit Key It is used to cancel an incorrect input, or to exit a programming step.
Call 1(800)985-6929 for Sales
PANEL COMPONENT
Shift Key
Arrow Keys
Enter Key
Function Keys
1.4 Back Panel
1.5 Dimension
MADE IN XXXXXXX
Front panel (unit: mm [inch])
Production serial number
Production weeks
97.00
Production year (2006)
[3.82]
Production plant
(W: Wuijang; T: Taoyuan)
Version
Production model
147.00 [5.79]
Back panel
Alarm LED Indicator
RS-232 LED Indicator
RS-485/RS422 LED Indicator
Arrow Keys
Enter Key
Function Keys
Vertical view (Unit: mm)
deltaacdrives.com
EXPLANATION
It is used to select function keys F0 ~ F9 and other keys for special function.
UP / Pg Up: It is used to increase the value or move up one page.
Pg Dn / DOWN: It is used to decrease the value or move down one page.
Left: This key is left direction key and it can be used to select the position of the
value.
Right: This key is right direction key and it can be used to select the position of
the value.
It is used to input a value or accept a programming command.
F0 / F5: It is used to be constant 0 (F0) and 5 (Shift+F0) when it is in the system
menu, the user can use it to define functions separately when they are in
user page.
F1 / F6: It is used to be constant 1 (F1) and 6 (Shift+F1) when it is in the system
menu, the user can use it to define functions separately when they are in
user page.
F2 / F7: It is used to be constant 2 (F2) and 7 (Shift+F2) when it is in the system
menu, the user can use it to define functions separately when they are in
user page.
F3 / F8: It is used to be constant 3 (F3) and 8 (Shift+F3) when it is in the system
menu, the user can use it to define functions separately when they are in
user page.
F4 / F9: It is used to be constant 4 (F4) and 9 (Shift+F4) when it is in the system
menu, the user can use it to define functions separately when they are in
user page.
BATTERY
SWITCH OR
RS-485/422
5 PIN terminal / Wire gauge: 12-24 AWG / Torque: 4.5 lb.-inch
Right side diagram (unit: mm [inch])
85.00
[3.35]
Mounting dimension (unit: mm [inch])
85
[3.35]
135~136.5[5.31~5.37]
Thickness Range 0.5~9mm
deltaacdrives.com
sales@deltaacdrives.com
1.6 Installation
Please insert TP04 series to the opening hole of panel and tighten the screws. However, if a firm mounting TP04
series to the panel is needed, please use the mounting fixed support accessory which is packed together with TP04
series, then insert the fixed support in the back and tighten the screws.
If the fixed support is not installed well, Delta will not guarantee the waterproof function. The screw torque
should be 4-5(kg-cm). DO NOT exceed this specification when tightening the screws; otherwise TP04 series may be
damaged. Please leave sufficient space (more than 50mm) around the unit for heat dissipation.
Do not install and mount TP04 series in the following environment.
A location subjected to Airborne dust, metallic particles, oil and smoke, corrosive or flammable
gases and liquids.
A location where temperature and humidity will exceed specifications.
A location where vibration and shock will exceed specifications.
The flat surface should be a UL Type 4 "Indoor Use Only" enclosure or equivalent (IP65 / NEMA4).
Please refer to the figures below.
Please leave sufficient space (more than 50mm)
around the unit for heat dissipation.
Thickness: 0.5~9.0mm
Function Specifications
ITEM TP04G-AS2
Screen Type STN-LCD
Display Color Monochromatic
The back-light automatic turn off time is 1 ~ 99 minutes (0 = do not turn off)
Backlight
(The back-light life is about 50 thousand hours at 25°C)
Resolution 128x64 dots
Display Range (W) x (H) = 72 x 40 (unit: mm); 3.00" (diagonal preferred)
Contrast Adjustment 10 levels of adjustment
ASCII: (Code page 850) Alphanumeric (including European characters)
Language / Font Taiwan: (Big 5 codes) Traditional Chinese Fonts
China: (GB2324-80 codes) Simplified Chinese Fonts
5×8 dots 25 characters × 8 rows
8×8 dots 16 characters × 8 rows
8×12 dots 16 characters × 5 rows
8×16 dots 16 characters × 4 rows
Font Size ASCII: 5×8, 8×8, 8×12, 8×16
1. Power on indication (Blink for three times)
Alarm LED Indicator (RED) 2. Communication error alarm
3. Special indication by user programming
RS-232 LED Indicator (Yellow) It will blink when transmitting program and communicating by using RS-232.
RS-485 / RS-422
It will blink when communicating by using RS-485 / RS-422.
LED Indicator (Green)
Program Memory 256KB flash memory
Unsynchronized transmission method: RS-232
Serial Communication Port Data length: 7 or 8 bits, Stop bits: 1 or 2 bits
RS-232 (COM1) Parity: None/Odd/Even, Transmission speed: 9,600bps ~ 115,200bps
RS-232: 9 PIN D-SUB male
Unsynchronized transmission method: RS-485 / RS-422
Extension Communication Port Data length: 7 or 8 bits, Stop bits: 1 or 2 bits
RS-422 (COM1) Parity: None/Odd/Even, Transmission speed: 9,600bps ~ 115,200bps
RS-485 (COM2) RS-422: 9 PIN D-SUB male
RS-485: 5 PIN removal terminal
1. Update firmware version
Extension Interface
2. The slot for program copy card
Battery Cover DC 3V battery for HMI
5 PIN Removal Terminal Include DC 24V input and RS-485 communication input
Electrical Specifications
Specifications TP04G-AS2
Display Monochromatic STN LCD
Effective Display Area (W) x (H) = 72 x 40 (unit: mm); 3 inches
5×8 dots 25 characters × 8 rows
8×8 dots 16 characters × 8 rows
Display Resolution 128×64
8×12 dots 16 characters × 5 rows
8×16 dots 16 characters × 4 rows
LCD Contrast Adjustment Set by Software, adjust the contrast by the press button in the function table
LCD Backlight Type LED Backlight: Automatic Turn-off Setting
Function / Numeric Keys F0 ~ F9, ESC, SHIFT, ENTER and Arrow Keys
External Input Power 24V (3.5W Max.)
