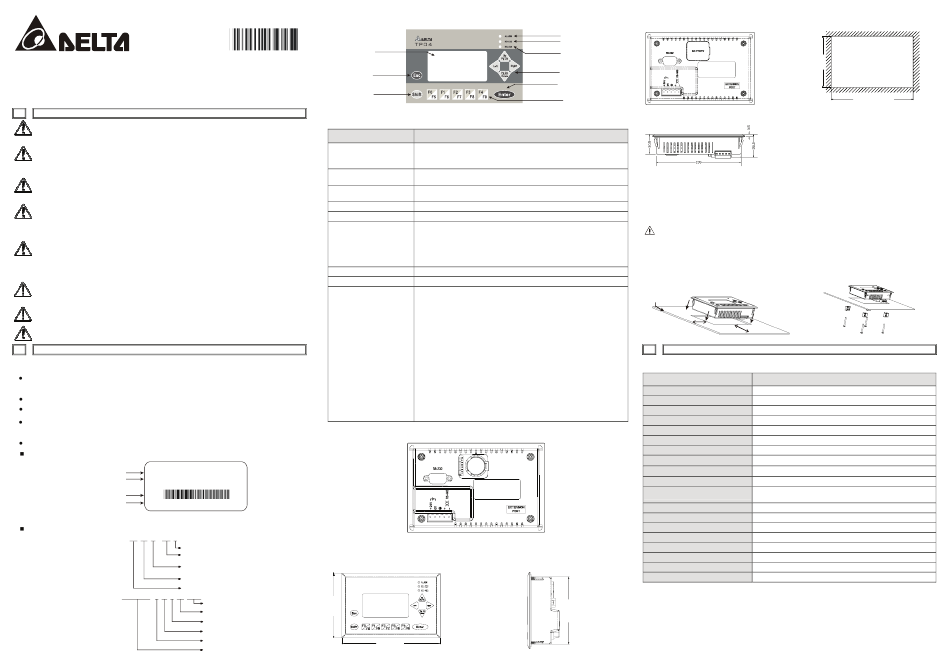

Delta TP04G-AS2 Instruction Sheet

http://www.delta.com.tw/industrialautomation/
Terminal Panels Series
TP04G-AS2
Instruction Sheet
1 WARNING
Please carefully read this instruction before using the TP04G.
DANGER! DC input power must be OFF before any maintenance. Do not insert or remove wires and
connectors while power is applied to the circuit. Only the qualified technicians are allowed to perform the
maintenance.
The TP04G display panel is waterproof. But please prevent grease, corrosive liquids and sharp objects from
contacting the TP04G.
DANGER! The TP04G requires 24VDC input power. The 24VDC input power should not be connected to
the RS-485 communication port. The unit may be destroyed or can't be repaired if the input power is
improperly applied. Please always check the correctly input power wiring before apply power.
DANGER! An electrical charge will remain on the DC-link capacitors for 1 minute after power OFF. This
residual power may be hazardous and the TP04G should not be worked on until this charge has dissipated.
To prevent injury, do not conduct any wiring or investigation on the TP04G until 1 minute after power has
been removed.
CAUTION! Always ground the TP04G by using the grounding terminal. Not only this acts as a safety, but
also filter out electrical noise. The ground method must comply with the laws of the country where the unit is
to be installed.
CAUTION! TP04G may be damaged if the fixed support (shipped with the pack) is adjusted too tight.
Battery replacement: please use UL component type: CR2030 lithium battery which battery life is 1200
hours after power loss. (NOTE: RTC should be reset after changing battery).
2 INTRODUCTION
2.1 Model Explanation

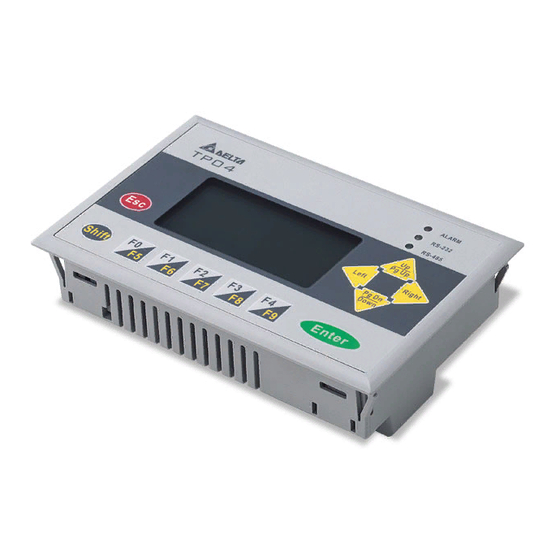

Thank you for choosing DELTA TP Series. TP04G-AS2 has the features of high resolution 128*64 to display
8*4 Chinese characters max, and Multilanguage support.
Built-in two communication ports so that RS-232 and RS-485/RS-422 can be used simultaneously.
Built-in RTC and communication/alarm indication LED.
Possess extension slot for program copy card to copy settings and programs rapidly and save download
time.
Built-in various objects to meet your requirements.
Nameplate
Production model
MODEL :
TP04G-AS2
Power input spec.
POWER INPUT : 24Vdc 3.5W
Barcode and
serial number
VX.XX
Version TP04GAS2W6050004
DELTA ELECTRONICS, INC
Note: The words of "MADE IN XXXXX" will be different due to the manufacturing location.
Model and Serial Number Explanation
Model Explanation TP 04 G - AS 2
RS-232/RS-422/RS-485 interface
Reserved
T: Text mode
G: Graphic mode
LCD Spec.
Series name
Serial Number Explanation TP04GAS 2 W 6 05 0004
2.2 Outline
2006-0 7-18
LCM
Display Area
5011627101-4 GE1
Escape/Exit
Shift Key
2.3 Panel Function Explanation
PANEL COMPONENT
Alarm Indication LED (RED)
RS-232 Indication LED
(Yellow)
RS-485/RS-422 Indication
LED (Green)
LCM display Area
Escape/Exit
Arrow Keys
Shift Key
Enter key
Function Keys
2.4 Back Panel
MADE IN XXXXXXX
2.5 Dimension
Front panel (unit: mm [inch])
Production serial number 97.00
[3.82]
Production weeks
Production year(2006)
Production plant(W:Wuijang)
Version
147.00 [5.79]
Production model
Alarm Indication LED
RS-232 Indication LED
RS-485/RS-422
Indication LED
Arrow keys
Enter key
Function Keys
EXPLANATION
Status 1: When power is on, LED will blink slowly for three times.
Status 2: When there is an abnormal situation, LED will blink quickly along with
an alarm sound.
LED will blink when transmits program and communicates via RS-232.
LED will blink when communicates via RS-485/RS-422.
Liquid Crystal Module display area used to display current program state.
Used to cancel an incorrect input, or to Exit a programming step.
UP/Pg Up: Used to increase the value or move up one page.
Pg Dn/DOWN: Used to decrease the value or move down one page.
Left: Left direction key (move curser to left).
Right: Right direction key (move cursor to right).
Used to select keys F5, F6, F7, F8, F9.
Used to input a value or accept a programming command.
F0/F5: used to be constant 0 (F0) and 5 (Shift+F0) when it is in the system
menu, user can use it to define functions separately when they are in
user page.
F1/F6: used to be constant 1 (F1) and 6 (Shift+F1) when it is in the system
menu, user can use it to define functions separately when they are in
user page.
F2/F7: used to be constant 2 (F2) and 7 (Shift+F2) when it is in the system
menu, user can use it to define functions separately when they are in
user page.
F3/F8: used to be constant 3 (F3) and 8 (Shift+F3) when it is in the system
menu, user can use it to define functions separately when they are in
user page.
F4/F9: used to be constant 4 (F4) and 9 (Shift+F4) when it is in the system
menu, user can use it to define functions separately when they are in
user page.
BATTERY
SWITCH OR
RS-485/422
5-PIN terminals: / Wire gauge: 12-24 AWG / Torque: 4.5 lb.-inch
Right side diagram (unit: mm [inch])
85.00
[3.35]
Back panel Mounting dimension (unit: mm [inch])
85
[3.35]
Vertical view (Unit: mm)
2.6 Installation
One easy way is insert TP04G to the opening hole of panel and tight up the screws. However, if a firm
mounting TP04G to the panel is needed, please use the fixed support accessory which is packed together with
TP04G, then infix the fixed support in the back and tight up the screws. (NOTE: the flat surface should be a Type 4
"Indoor Use Only" enclosure or equivalent.)
If fixed support is not installed well, Delta will not guarantee the waterproof function. If you turn the screw
exceeds torque: 4-5(kg-cm), TP04G could be damaged.
(Note：the flat surface shoud be a Type 4 "Indoor Use Only" enclosure or equivalent.)
Please leave sufficient space (more than 50mm) around the unit for heat dissipation.
Please leave sufficient space (more than 50mm)
around the unit for heat dissipation.
Thickness:
0.5~9.0mm
50mm
50mm
3 SPECIFICATION
3.1 Electrical Specification
ITEM
Function Key/Digital Key F0~F4, ESC, SHIFT, ENTER and ARROW keys
External Input Power 24V (-15%-20%) 3.5W Max.
Memory Capacity
CPU Hitachi HD64F3064F
RAM of System
Communication Interface COM1: RS232; COM2: RS485/RS422
Waterproof Class of Front Panel IP65/NEMA4/UL Type 4 (indoor use)
0~50℃, relative humidity 20-90% RH (non-condensing)
Environment Condition
Storage Temperature for Hardware
Vibration 1.0G, 10-150Hz, X, Y, Z three directions and 10 sweep cycles per axis
15G, 11ms, from X, Y, Z three directions and three times for each
Shock
Radiated Emission CISPR22, Class A
Electrostatic Discharge Immunity EN61000-4-2/1995
Radiated Immunity EN61000-4-31995
Electrical Fast Transient EN61000-4-4/1995
Weight/Dimension 0.24kg/147×97×35.5mm (Width × Height × Deep)
Cooling Method Natural Air Cooling
Pollution Degree
Altitude 2000 m or lower
135~136.5[5.31~5.37]
Thickness Range 0.5~9mm
TP04G-AS2
256K Byte
32K Byte
-20~60℃
direction
2
