Keithley Instruments
28775 Aurora Road
Clev eland, Ohio 44139
1-800-935-5595
http ://www.tek.com/keithley
Description
The BNC end of the Model 237-BNC-TRX High-Voltage 2-Slot BNC to 3-Lug Female Triaxial Adapter will mate
directly to an instrument that uses BNC connectors. The other end of the adapter will accommodate a 3-slot
triaxial cable to allow connection to equipment that uses 3-lug triaxial connectors.
Keep the connectors free of contaminants (such as dirt or oil) to maintain maximum insulation
resistance. If the connections become contaminated clean them thoroughly with methanol and allow
to dry completely before use.
PA-396 Rev. B / February 2016

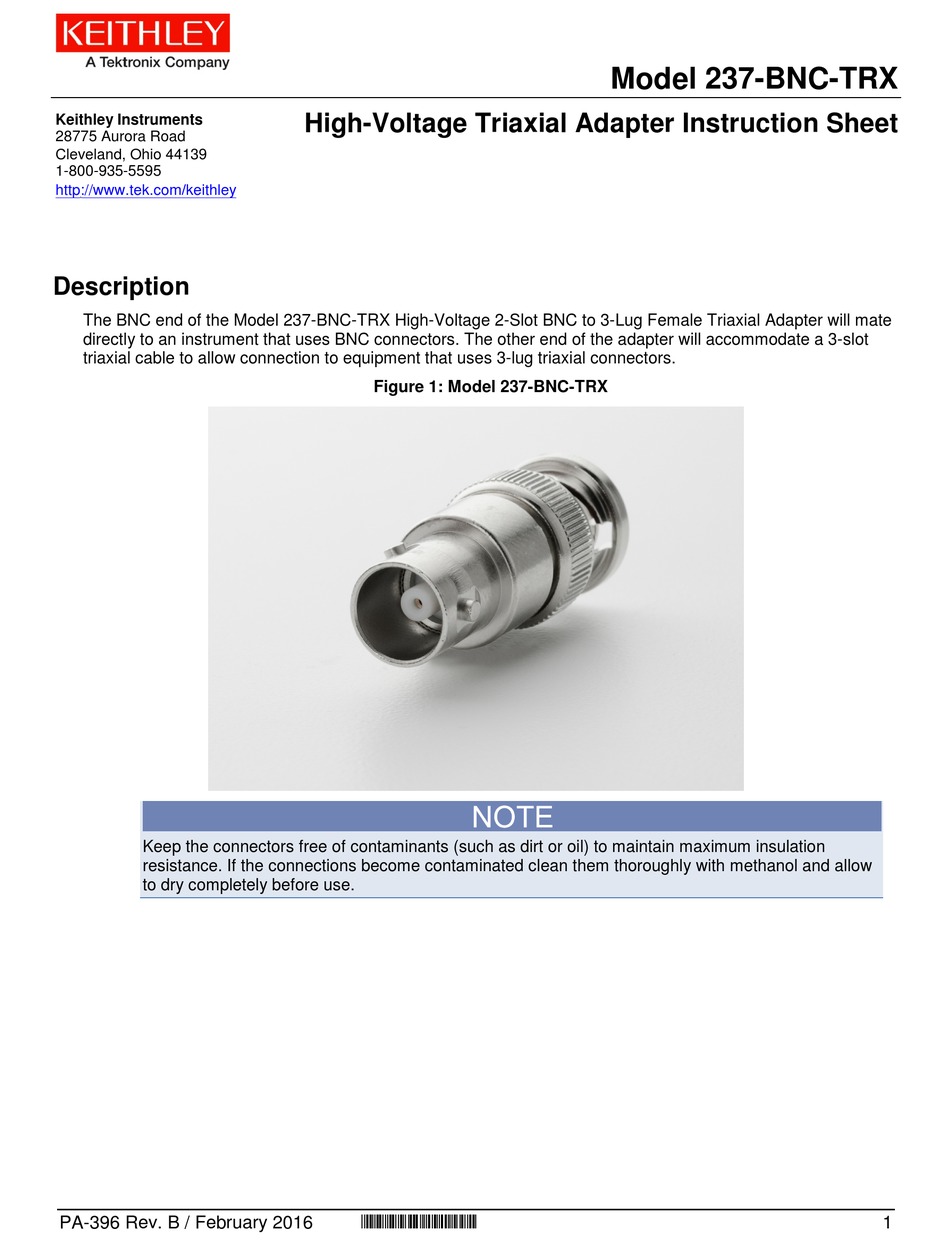

High-Voltage Triaxial Adapter Instruction Sheet

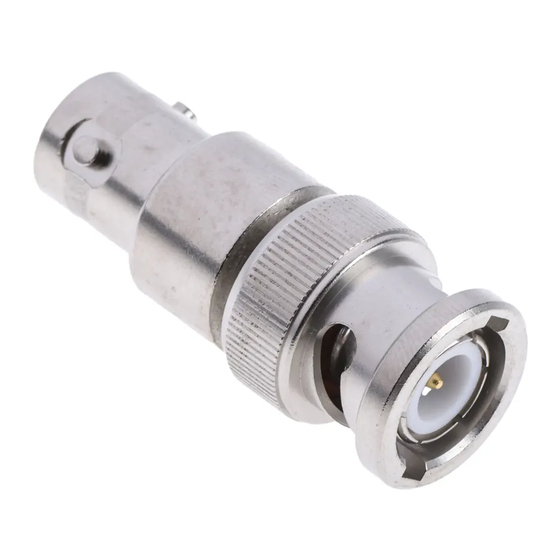

Figure 1: Model 237-BNC-TRX
*PPA396B*
Model 237-BNC-TRX
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix Keithley 237-BNC-TRX
Summary of Contents for Tektronix Keithley 237-BNC-TRX
- Page 1 Model 237-BNC-TRX High-Voltage Triaxial Adapter Instruction Sheet Keithley Instruments 28775 Aurora Road Clev eland, Ohio 44139 1-800-935-5595 http ://www.tek.com/keithley Description The BNC end of the Model 237-BNC-TRX High-Voltage 2-Slot BNC to 3-Lug Female Triaxial Adapter will mate directly to an instrument that uses BNC connectors. The other end of the adapter will accommodate a 3-slot triaxial cable to allow connection to equipment that uses 3-lug triaxial connectors.
- Page 2 Model 237-BNC-TRX Characteristics Working voltage 600 V center conductor to inner shield peak 1300 V center conductor and inner shield to outer peak shell Maximum working current peak Operating environment 0 °C to 50 °C, up to 35 °C at 70 % relative humidity <...
- Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 4 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. Instrumentation and accessories shall not be connected to humans. Before performing any maintenance, disconnect the line cord and all test cables. To maintain protection from electric shock and fire, replacement components in mains circuits —...
