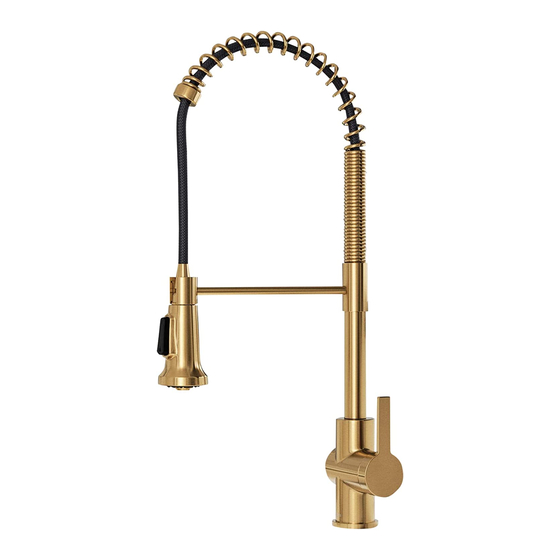

- Page 1 INSTALLATION GUIDE Single Handle Kitchen Faucet KPF-1691 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. MAR 04, 2020...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn off the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •... - Page 4 Diagram and Parts List G. Screws A. Spray Head B. Faucet Body H. Weight I. Weight Clip C. Flange J. Quick Connector D. Rubber Washer E. Metal Washer K. 2.2GPM Flow Restrictor (BLACK) F. Mounting Nut L. Hex Wrench...
- Page 5 Faucet Dimension 10 5/8" [268.9mm] 4 1/4" 8 3/8" [108.8mm] [213.6mm] Ø2 1/8" [54.2mm] 3/8”-compression Installer Tip:...
- Page 6 Step 1: Installing the faucet Shut off the water supply. Place faucet (B) through the hole in countertop. Secure the faucet (B) to the countertop using the rubber washer (D), metal washer (E) and mounting nut (F) provided. Tighten screws (G). Step 2: Securing the faucet assembly Push the quick connector (J) firmly upward and attach it to the receiving block (a).
- Page 7 Step 3: Securing the faucet assembly Install the weight clip (I) at the point of the hose marking "weight here". Insert the weight (H) onto the weight clip (I) by sliding it down onto the weight clip (I). Step 4: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug.
- Page 8 Please note that doing so will remove the capability of this product to meet specific low-flow standards. Kraus is not liable for any alterations made to the product post-sale, and highly advises that you consult with your local or statewide plumbing...
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Sprayer Head SFACB* KP27195 2. Washer KP27208 3. Inverter KP27242-BL 4. Sprayer Hose KP27244 BLSFACB* 5. Spring Assembly SFACB* KP27243 6. Screw KP27084 7. Index KP27124 8. Cartridge KP27083 9. -
Page 10: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (9) has Remove the index (13). - Page 11 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 12 Rico shipping charges may apply). International shipping fees are not included. Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
