- Page 1 INSTALLATION MANUAL Ramus™ Single Handle Vessel Faucet KVF-1220 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. April 11, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
-
Page 3: Prior To Installation

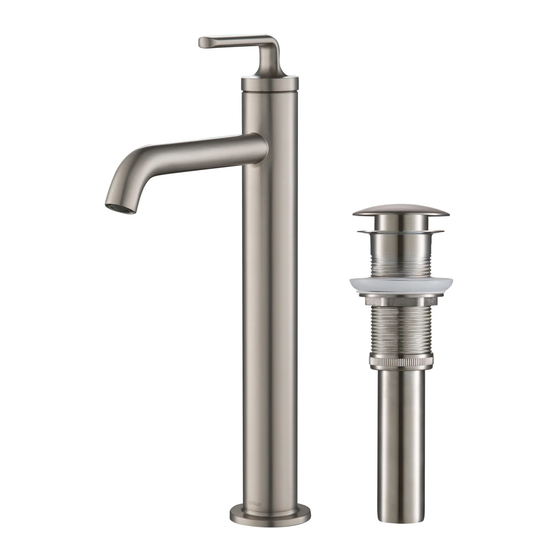

Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·... - Page 4 Diagram and Parts List F. Mounting Nut A. Faucet Body B. Aerator G. Screws C. Flange H. Hex Wrench D. Plastic Washer I. Drain E. Metal Washer...
- Page 5 Faucet Dimensions 7 3/4" [196.4mm] 6 1/4" [159.4mm] Ø2 1/4" [57.0mm] 3/8” compression Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Drain Dimensions 2 3/4" [69.0mm] Ø2 3/8" [61.1mm] G1 1/4-11 Ø1 1/4" [31.7mm] Installer Tip: Shut off main water supply before installing new drain.
-
Page 7: Step 2: Installing The Faucet
Step 1: Remove washers and mounting nut Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove the mounting nut & screws (F&G), metal washer (E) and plastic washer (D) from the faucet (A). F&G Step 2: Installing the faucet Place the faucet (A) through the hole in the countertop. - Page 8 Step 3: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug. Turn on angle stops and check for leaks (DO NOT TURN FAUCET ON). NOTE: Please make sure filter washers are installed before connecting to the main valve. Step 4: Install Press pop-up assembly Unscrew the nut (6) from the pop-up body (2), move over the tail pipe (7)
- Page 9 Step 4: Install Press pop-up assembly - continued Place the washer (1) underneath the flange of the pop-up body (2). Slide the pop-up body (2) down through the drain hole on the vessel or basin sink. From the underside of the sink, slide the washer (3) against the bottom of the vessel or basin sink, thread on the coupling nut (4) and tighten.
-
Page 10: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # GR, BL* 1. Cover Button KP27159 2. Set Screw KP27158 SFS, MB, 3. Handle KP27157 GM, BG* SFS, MB, 4. Cap & O-ring KP27160 GM, BG* 5. Bonnet Nut KP27161 6. -
Page 11: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Bonnet nut (5) has Remove the cover button (1). Loosen set Leakage under the handle. come loose. screw (2) with hex wrench (12). - Page 12 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 13 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 14 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
