Step 1. Determine Reveal Type · Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flushed Reveal) KRAUS Recommended Installation Type 3/8“ Positive Reveal Flushed/Zero Reveal 1/8“ Negative Reveal 3/8” POSITIVE 1/8”...
Page 8
Step 2. Position Template Check the cut-out template against the actual sink to ensure a proper sized cut-out. · · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.
Page 9
Step 3. Trace Template · Trace template on countertop with a pencil.
Page 10
Step 4. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material.
Page 11
Step 5. Set up Mounting Brackets • Turn countertop over and align sink with countertop. Decide location for mounting brackets. • Mounting holes should be 1/2" from edge of sink. 1/2" (13mm) Step 6. Drill Hole in Countertop • Drill 3/8" diameter x 1/2" deep hole in the countertop.
Page 12
Step 7. Install Anchors • Insert anchors into drilled holes and lightly tap with a hammer until flush. Step 8. Secure Sink to Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop.
Step 9. Attach Mounting Hardware • Attach mounting hardware to secure bowl. Remove excess sealant from inside lip. • Allow sealant to set for 30 - 60 minutes. NOTE: Use acetone or rubbing alcohol to remove any excess sealant. Step 10. Install Plumbing Fixtures ·...
Page 14
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
Page 15
Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
Page 16
IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
Page 18

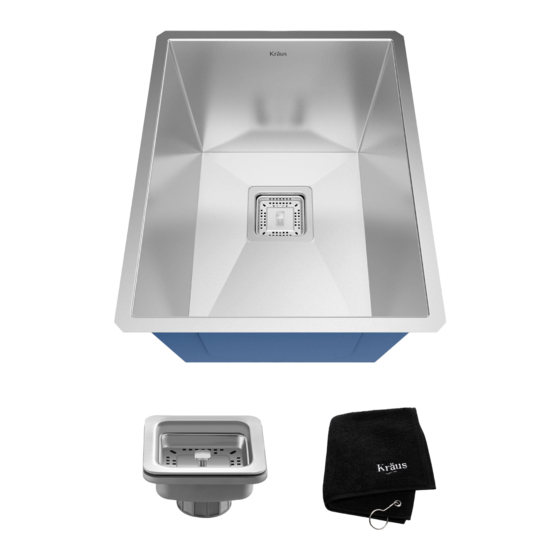

Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
Page 20
Diagram and Parts List ST-1 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut ST-2 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E.
Page 21
Diagram and Parts List BST-1 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E. Foam Gasket F. Rubber Gasket G. Main Body H. Drain Gasket I. Drain Nut BST-2 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E.
Page 22
Diagram and Parts List ST-3 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut...
Page 25
Step 2. Insert metal strainer into drain hole with foam gasket attached. Install rubber gasket and main body underneath the sink Strainer Cover Screw Metal Strainer Foam Gasket Rubber Gasket Main Body Drain Gasket Drain Nut...
Page 26
Step 3. Using the screw, tighten the metal strainer and main body into place Screw Step 4. Insert strainer cover to seal water Strainer Cover...
Replacement Parts ST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 A. Strainer Cover PGM* KPU00010-PGM B. Screw 1 1/4" KPU00003 B. Screw 1 1/4" PGM* KPU00003-PGM C. Metal Strainer KPU00011 C. Metal Strainer PGM* KPU00011-PGM D. Foam Gasket KPU00005 E.
Page 28
Replacement Parts ST-2 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 B. Screw 1 5/8" KPU00013 C. Metal Strainer KPU00011 KPU00005 D. Foam Gasket KPU00006 E. Rubber Gasket KPU00012 F. Main Body KPU00008 G. Drain Gasket KPU00009 H. Drain Nut...
Page 29
Replacement Parts BST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00001 B. Basket KPU00002 C. Screw 1 1/4" KPU00003 KPU00004 D. Metal Strainer KPU00005 E. Foam Gasket KPU00006 F. Rubber Gasket KPU00007 G. Main Body KPU00008 H. Drain Gasket KPU00009 Drain Nut BST-2...
Page 30
Replacement Parts ST-3 Replacement Parts List Finish Part # A. Strainer Cover KP22191 B. Screw KP22198 C. Metal Strainer KP22192 KP22193 D. Foam Gasket KP22194 E. Rubber Gasket KP22195 F. Main Body KP22196 G. Drain Gasket KP22197 H. Drain Nut...
